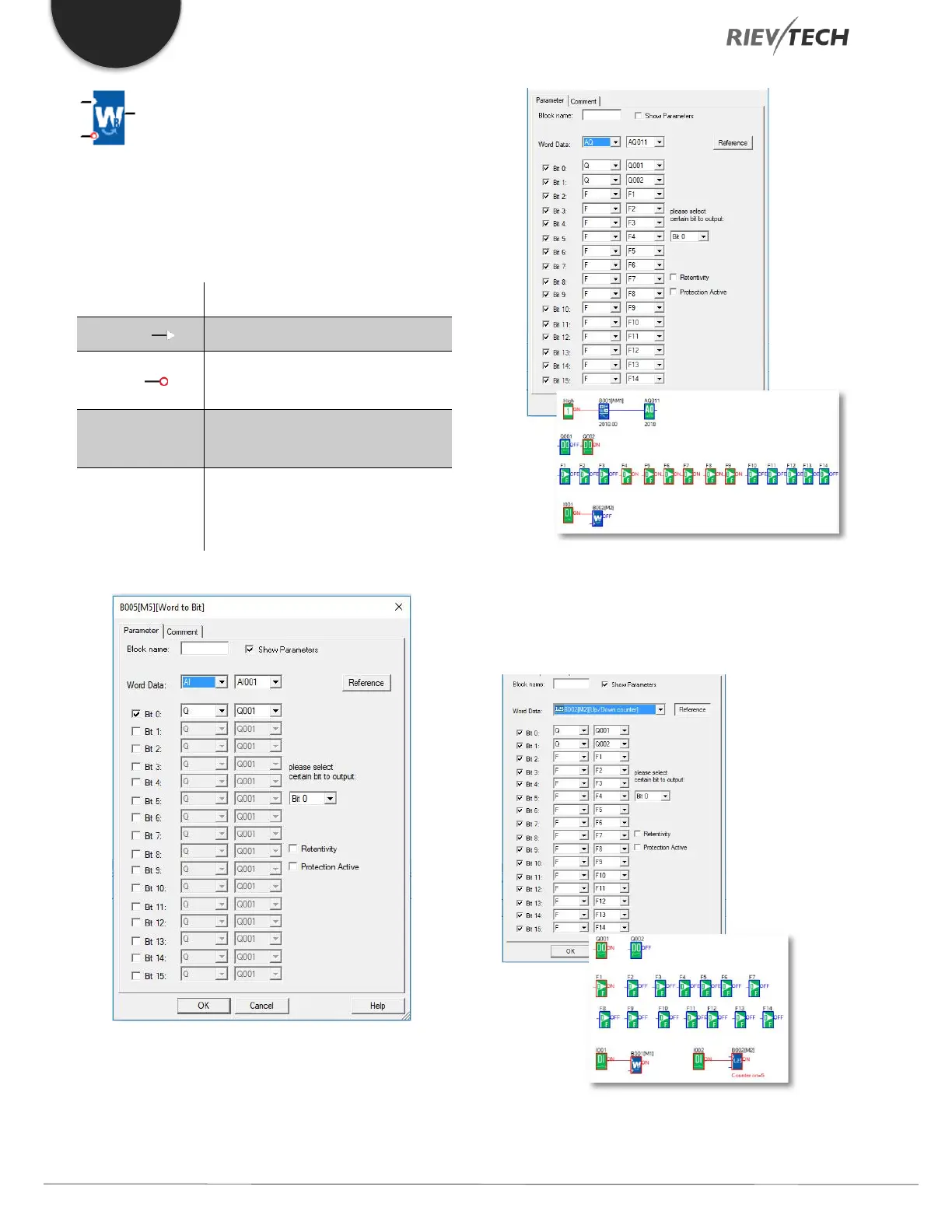

Description of function
This special function is used to transfer the word type data
(AI, AF or AQ) to 16-bit status (0 or 1) (F or Q)
Connection
Description
Input En ( )
Enable this function.
Input R ( )
Reset output Q with a signal at
input R (Reset).
Parameter
Retentivity set (on) = the status is
retentive in memory.
Output Q
Q is switched on with a signal at
input En and switched off with a
low signal at input En.
Example1:
Convert the AQ11 (2018) to Q1, Q2 and F1--
F14(0000011111100010)
Example2:
