Convert the counter value (5) to Q1, Q2 and F1--
F14(0000000000000101)

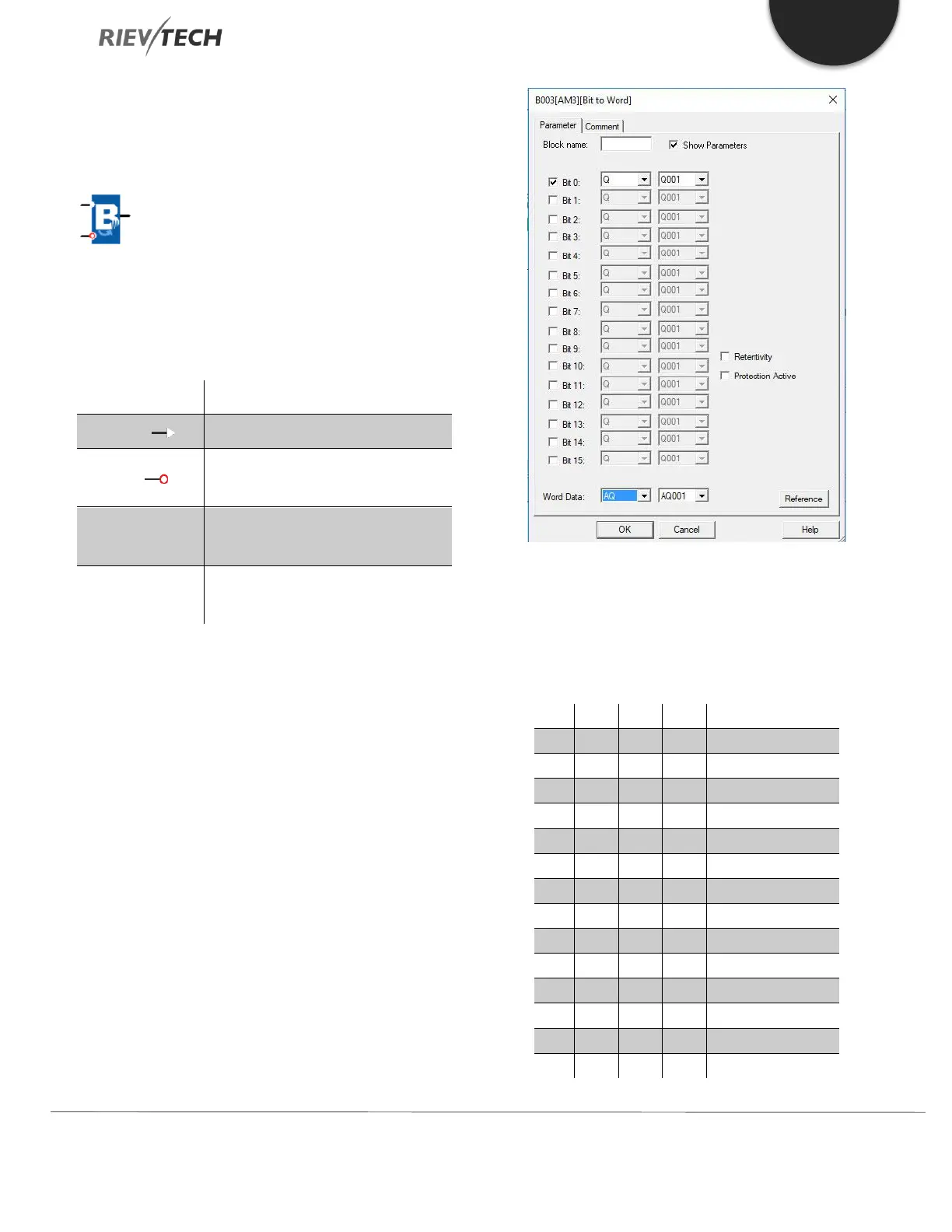

Bit to Word
Description of function
This special function is used to transfer the 16-Bit status
(0 or 1) (F or Q) to word type data (AF or AQ).
Connection
Description
Input En ( )
Enable this function.
Input R ( )
Reset output AQ with a signal at
input R (Reset).
Parameter
Retentivity set (on) = the status is
retentive in memory.
Output AQ
AQ will output the value of the
block when En was activated.
For example
Transfer the F1--F3 and Q1 status to the AQ001. F1 is
saved in Bit0, F2 is saved in Bit1, F3 is saved in Bit2, Q1 is
saved in Bit3.
F1
F2
F3
Q1
AQ1 value
0
0
0
0
0
1
0
0
0
1
0
1
0
0
2
1
1
0
0
3
0
0
1
0
4
1
0
1
0
5
0
1
1
0
6
1
1
1
0
7
0
0
0
1
8
1
0
0
1
9
0
1
0
1
10
1
1
0
1
11
0
0
1
1
12
1
0
1
1
13
