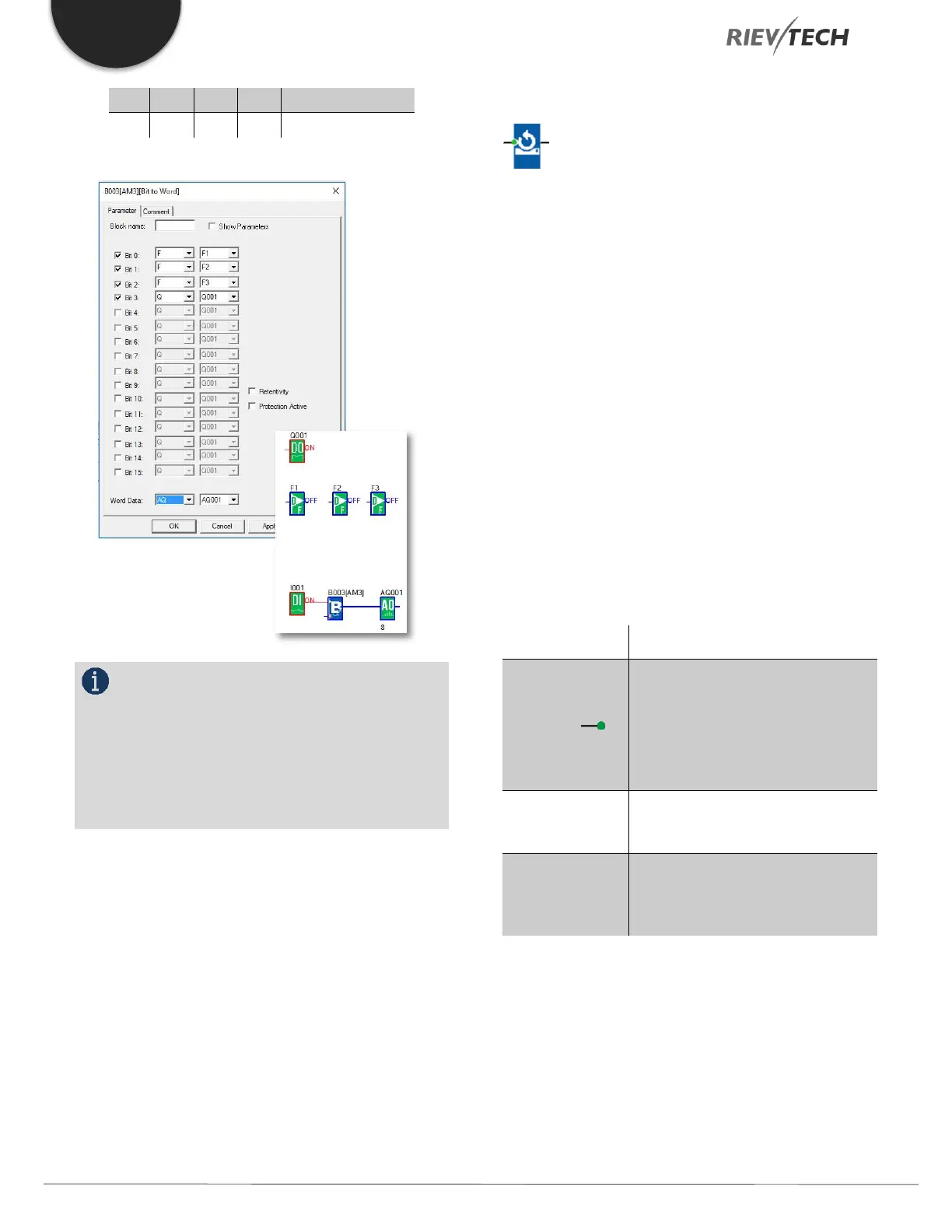

Programmable Relay ● User Manual for ELC, EXM and PR Series 188 2020 v6.0 ● © Rievtech Co.,
Ltd. ● www.rievtech.com
0
1
1
1
14
1
1
1
1
15
NOTICE:
1. The Bit4--Bit15 was not ticked, they are all
recognised as 0.
2. With such block, you can modify one bit of
the word register in the slave devices together with the
code 06/16 in Modbus network.
Device Reset
Description of function
This function block is used to reset the device (Ethernet
modem or WIFI modem built-in) in the CPU if there is a
trigger at the Trg pin. It can only be used in CPUs with
Ethernet module or Wi-Fi module built-in.
Available in the following CPUs:
ELC series type:
ELC-12DC-DA-R-N
ELC-12AC-R-N
ELC-22DC-DA-R-N
ELC-22AC-R-N
Connection
Description
Trg input ( )
If there is a trigger at the Trg pin,
then the Ethernet modem will be
reset, The modem will be start-up
again until the time "Reset period"
reached.
Parameter
Channel: Ethernet
Reset period:1—100s
Output Q
When the Ethernet module had
been reset successfully, this block
will output a short trigger.
