Rievtech ELC Series - Page 314

EN
Programmable Relay ● User Manual for ELC, EXM and PR Series 314 2020 v6.0 ● © Rievtech Co.,
Ltd. ● www.rievtech.com

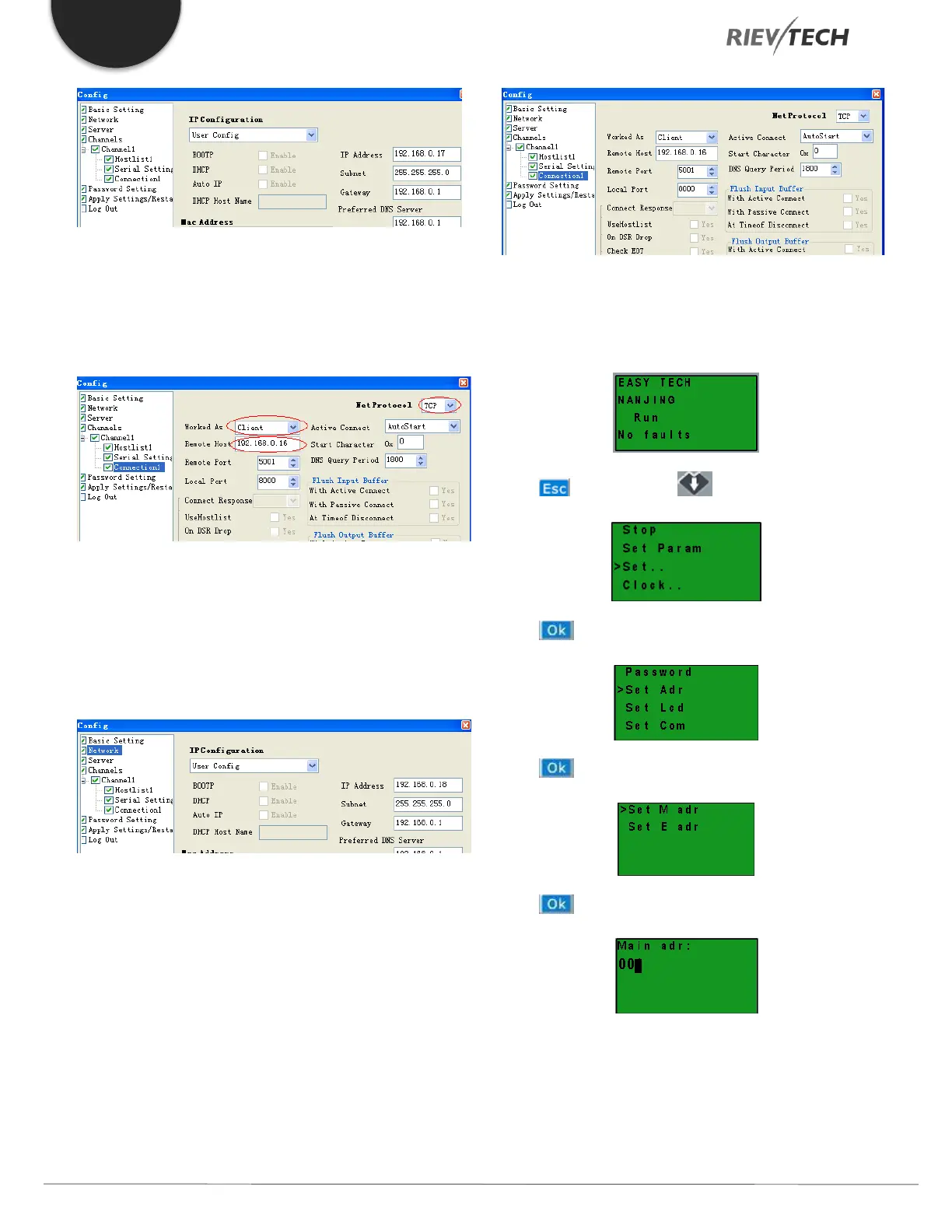

Work as: Client
Remote Host: 192.168.0.16
Remote port: 5001
The items with a red circle marked must be the same as
above.
Slave 2 settings:
The IP address is 192.168.0.18
Work as: Client
Remote Host: 192.168.0.16
Remote port: 5001
PLC address needs to be changed to 2 (default is 1).
Change the CPU address via the HMI on the CPU as
follows:
Press , and then press
Press
Press
Press
Change address with UP or DOWN button and confirm
with OK.
