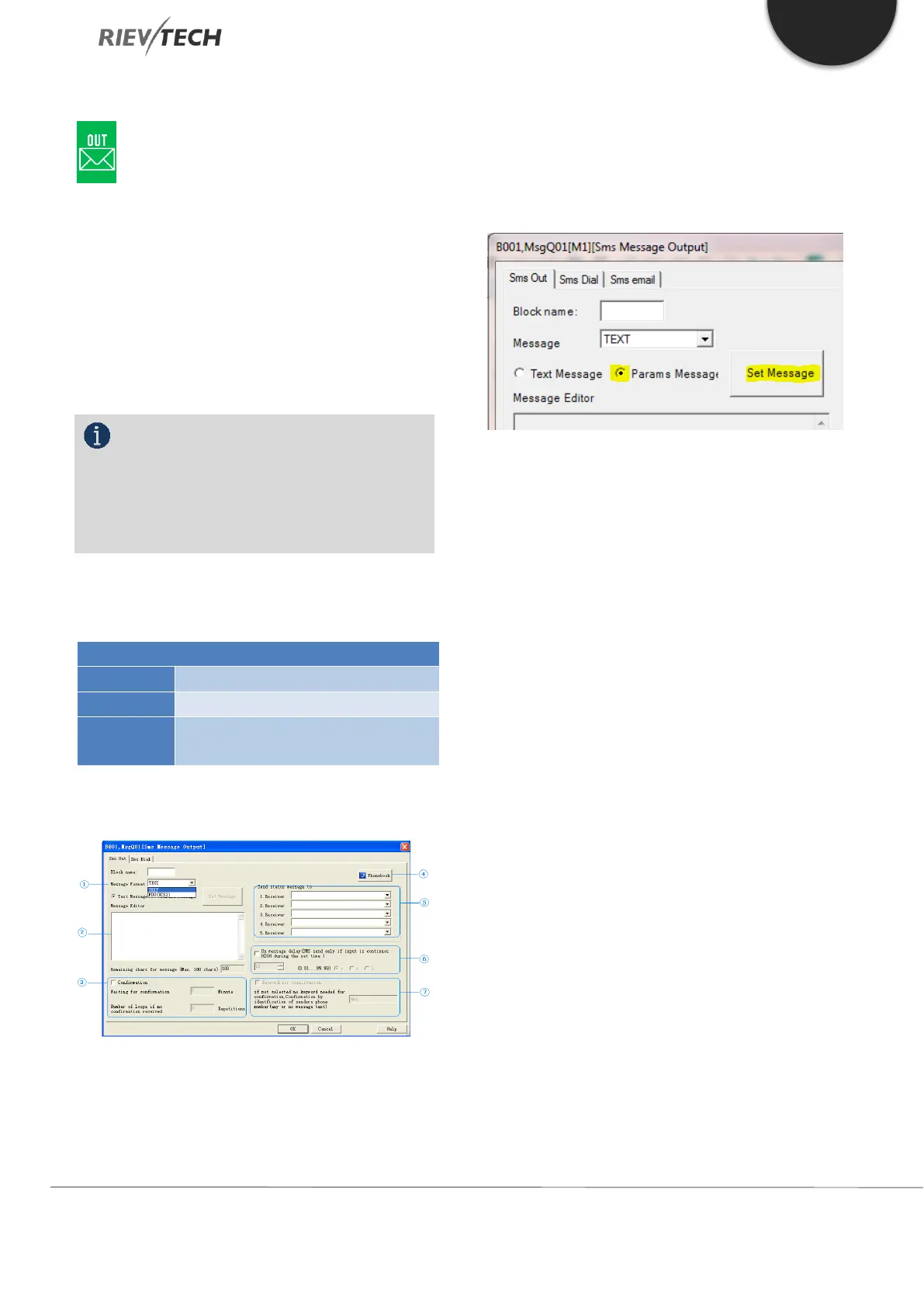

SMS Message Output
Description of Function
You are allowed up to a maximum of 64 SMS Message
Output blocks. Each one can send a SMS message or
Call (without sound) to all contacts configured in the
block. This block is only triggered when there is a LOW
to HIGH trigger.
NOTICE:
1. At least ONE number MUST be configured.
2. Only use standard ASCII characters in the
SMS.
3. Any ‘special’ characters will cause an error.
The output pin of this block will only become high once
ALL messages have been successfully sent.
Connection
Description
Input Trg
Trigger to initiate SMS out message
Input R
Reset output pin to 0/False
Output Q
Set TRUE after ALL SMS successfully
sent
Configuration of Function
1. Message Format
a. Text – Support for ASCII characters
b. PDU – Support for foreign language
characters
2. Message Editor
a. Text – Up to 100 ASCII characters can
be used
b. PDU – Up to 70 characters can be used
If you wish to send parameter information such as IO
states, then select the Params Message radio button and
click the Set Message button.
