Optical Device

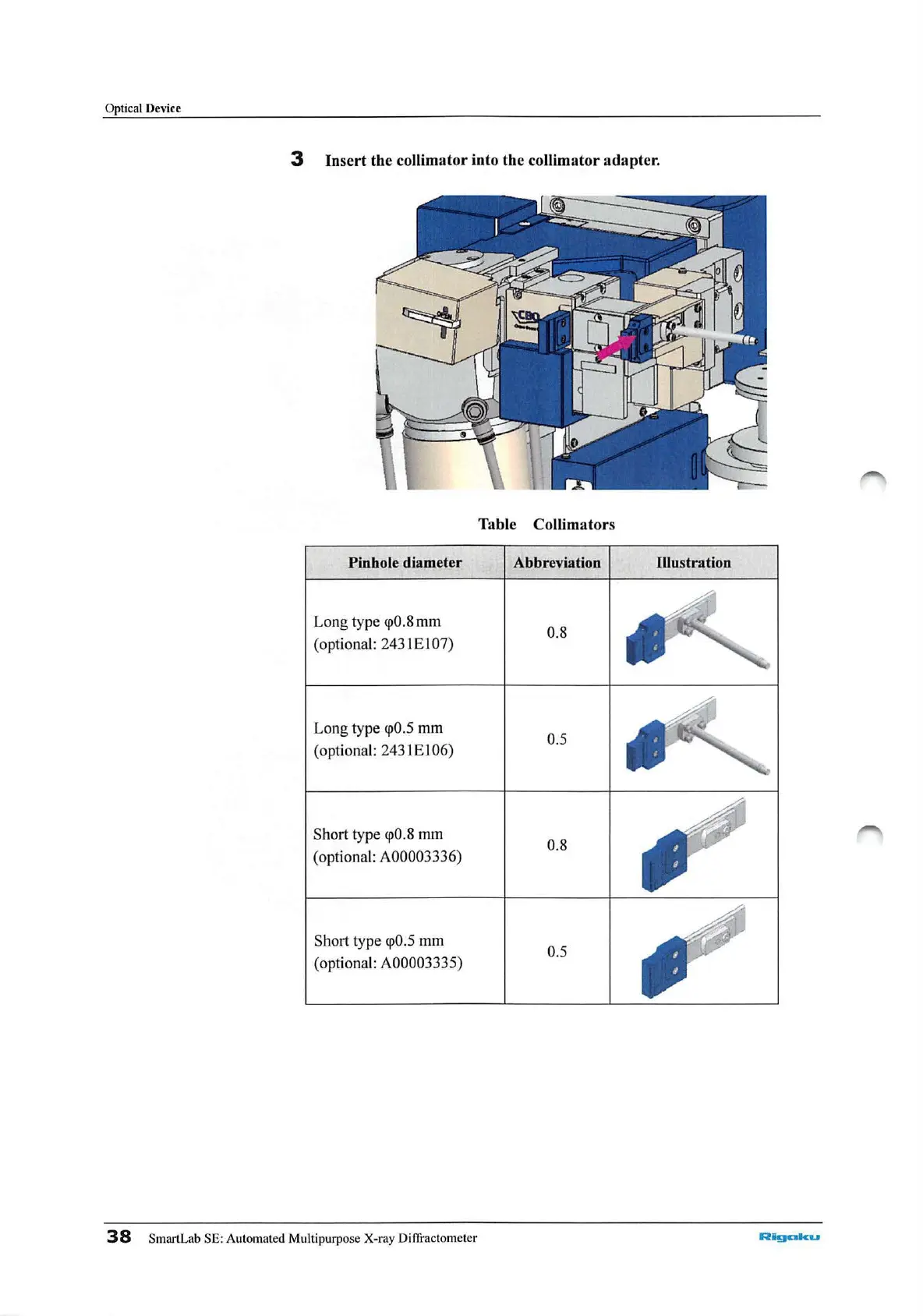

3 Insert th e collimator into the collimator adapter.
Pinhole diameter
Long type
<p0 .8 mm
( optional: 2431 EI 07)
Long type
<p0.5 mm
( optiona l: 2431 El 06)
Short type
<p0.8 mm
( optional: A00003336)
Short type
<p0.5 mm
(optiona l: A00003335)
38 SmartLab SE: Automated Multipurpose X-ray Diffractometer
Table Collimators
Abbreviation Illustration
0.8
0.5
0.8
0.5
Riigaku
