Optical Device
CAUTION
&

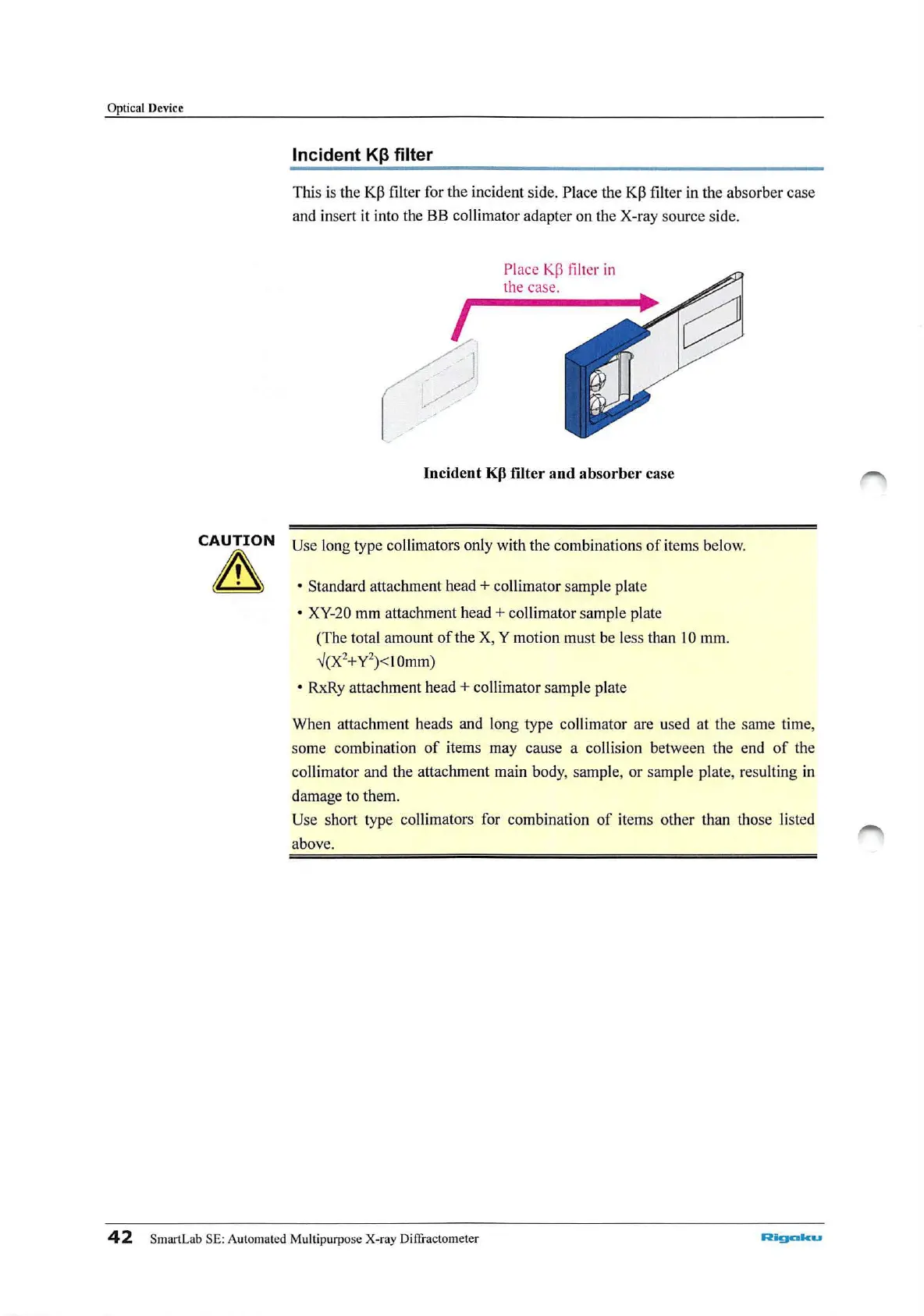

Incident KJ3 filter
This is the KP filter for the incident side. Place the KP filter in the absorber case
and insert it into the BB collimator adapter on the X-ray source side.
Place KP fi lter in
t he case.
Incident K~ filter and absorber case
Use long type collimators only with the combinations of items below.
• Standard attachment head + collimator sample plate
• XY-20 mm attachment head + collimator
sa mple plate
(The total amount of the X, Y motion mu st be less than IO mm .
.,,l (X
2
+Y
2
)< 1 Omm)
• RxRy attachment head+ collimator sa mple plate
When attachment heads and long type collimator are u se d at the sa me time,
some combination
of items ma y cause a collision betw ee n the end of the
co llimator and the attachment main body, sample, or sample plate, resulting in
damage to them.
U
se short type collimators for combination of items other than th ose li sted
above.
42 SmartLab SE: Automated Multipurpose X-ray Diffractometer
