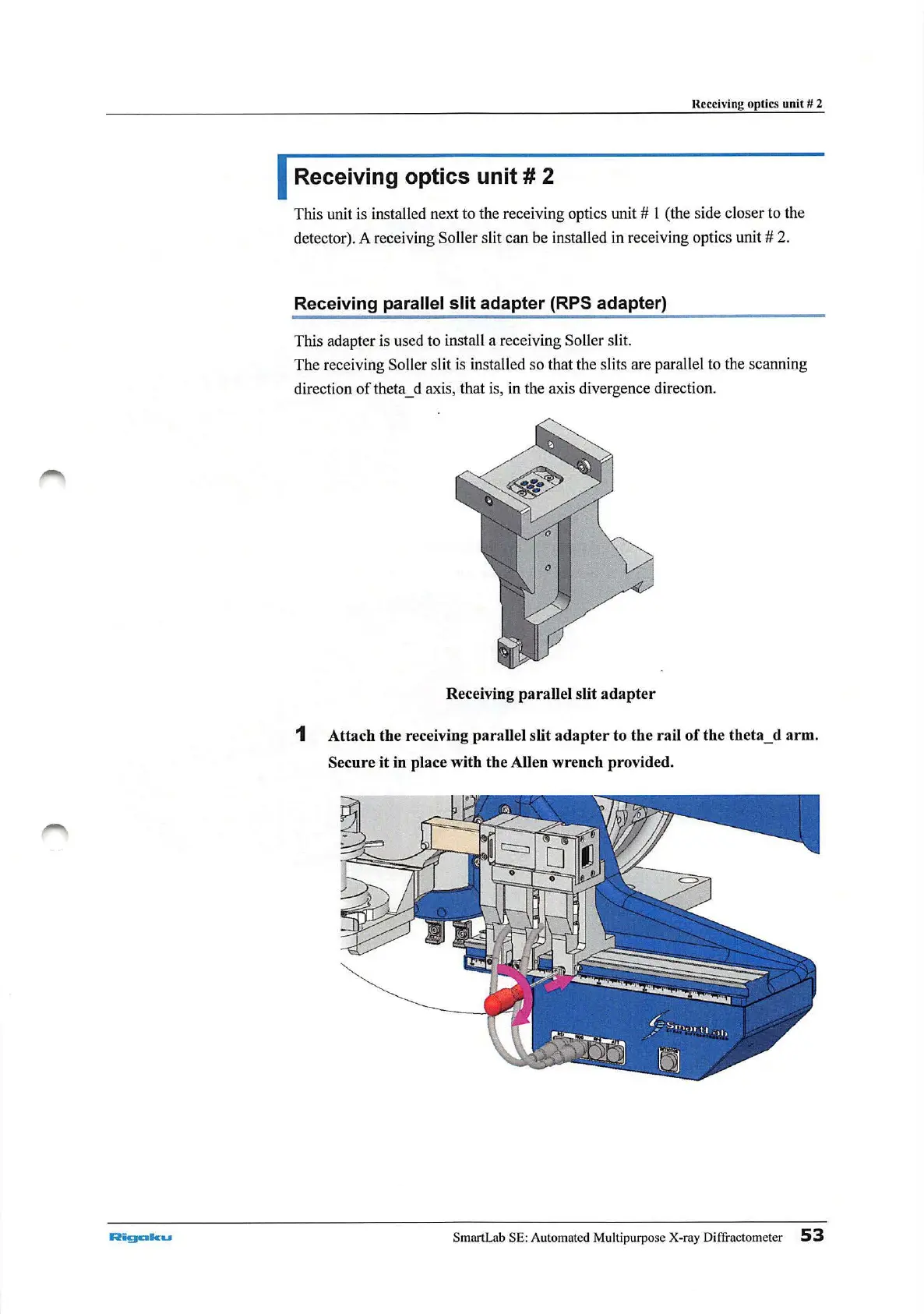

Receiving optics
unit
# 2
I Receiving optics
unit#
2
This unit
is
installed next to the receiving optics
unit#
l (the side closer to the
detector). A receiving Soller slit can be insta
ll
ed in receiving optics
unit#
2.
Receiving parallel
slit
adapter (RPS adapter)
This adapter is used to install a receiving Soller sl
it.
The receiving Soller slit
is
installed so that the slits are parallel to the scanning
direction oftheta_d axis, that
is
, in the axis divergence direction.
Receiving parallel slit ada
pter
1 Attach the receiving parallel slit
adapter
to the rail
of
the theta_d
arm
.
Secure it in place with the Allen wrench provided.
