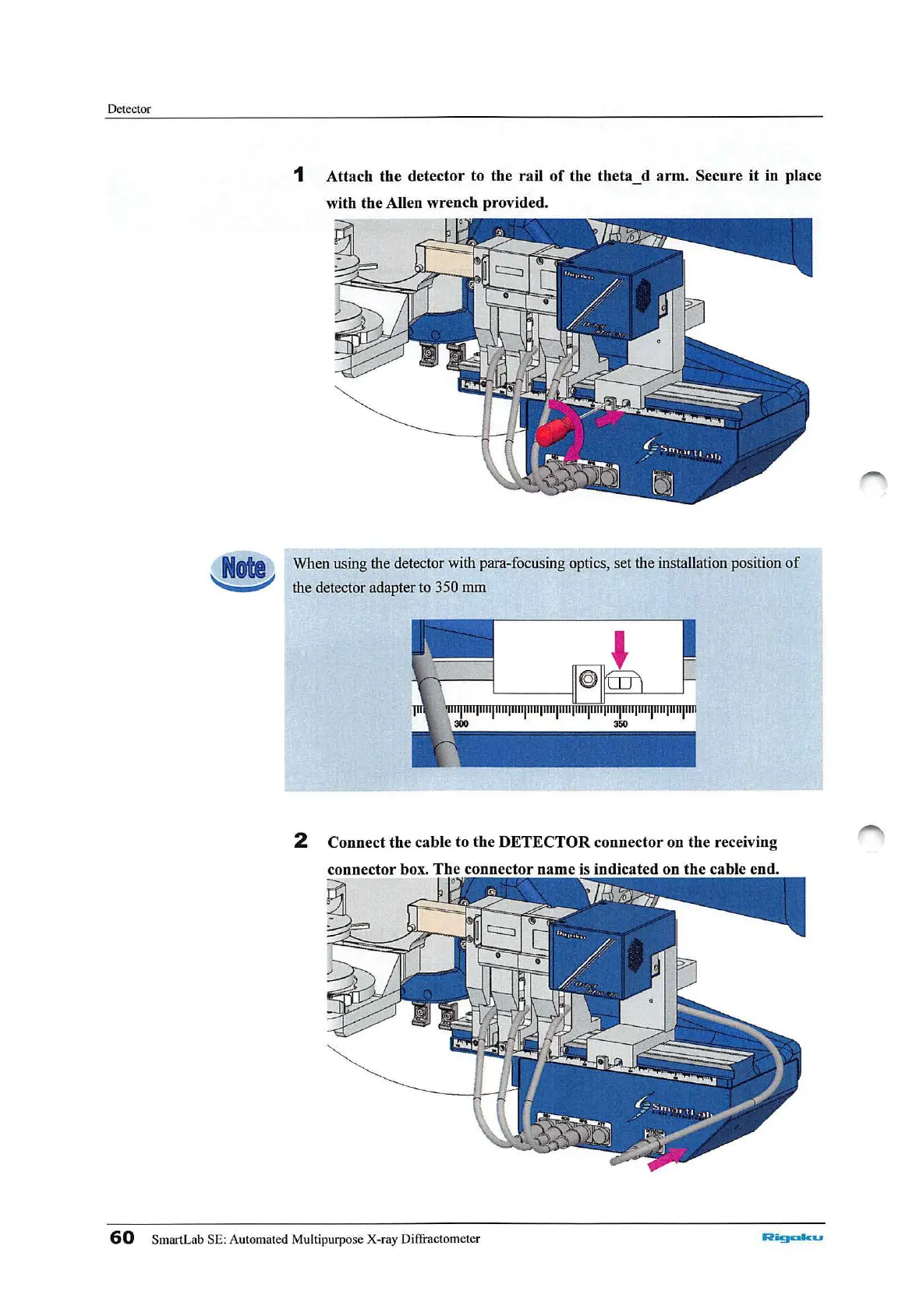

Detector
1 Attach the detector to the rail
of
the theta_d arm. Secure
it
in place
with the Allen wrench provided.
When using the detector with para-focusing optics, set the installation position
of
the detector adapter to 350 mm
2 Connect the cable to the
DETECTOR
connector on the receiving
60
SmartLab SE: Automated Multipurpose X-ray Diffractometer
Rigaku
