Detector
I HyPix-400

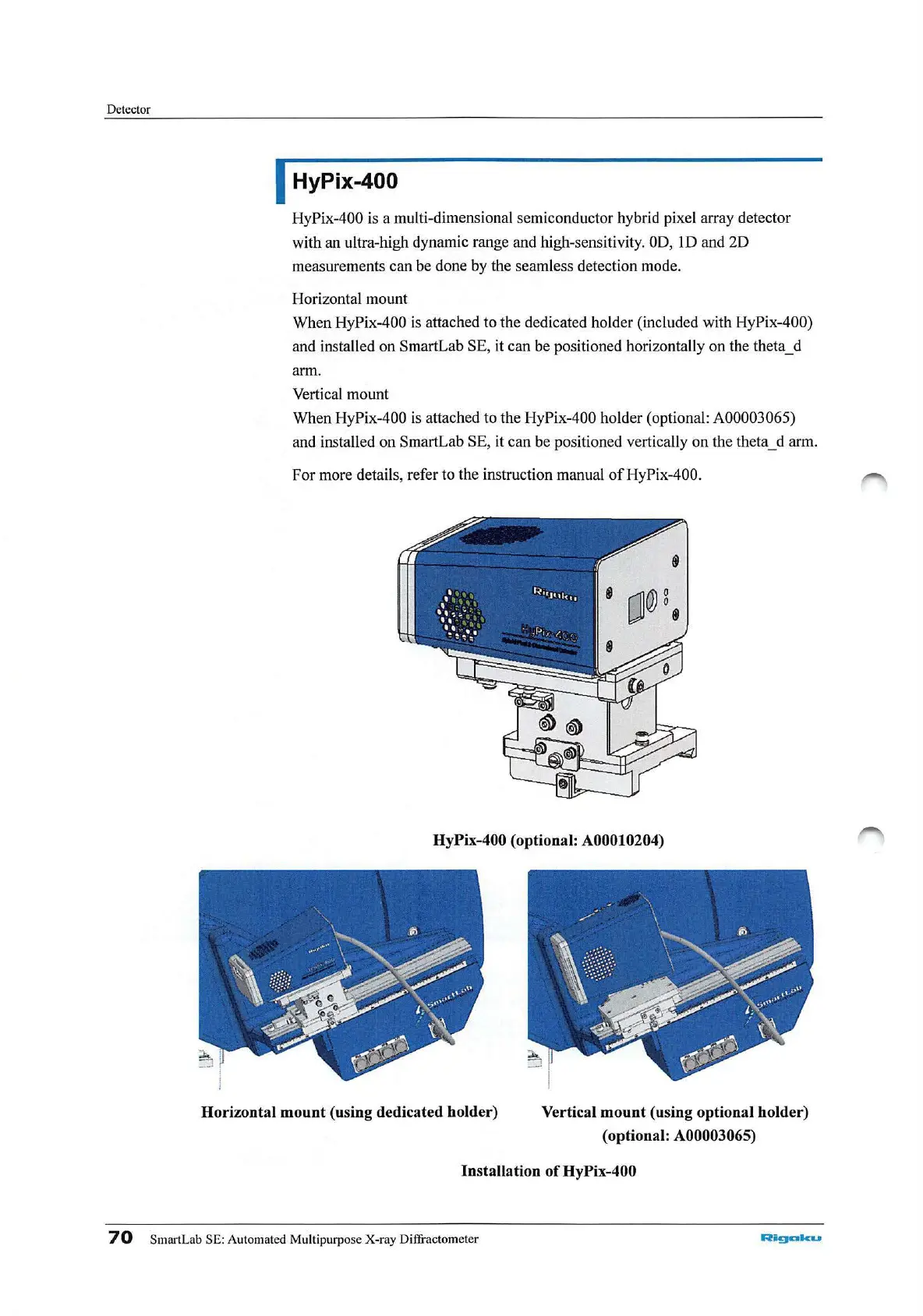

HyPix-400 is a multi-dimensional semiconductor hybrid pixel array detector
with an ultra-high dynamic range and high-sensitivity.
OD,
lD
and
20
measurements can be done by the seamless detection mode.
Horizontal mount
When HyPix-400
is
attached to the dedicated holder (included with HyPix-400)
and installed
on
SmartLab SE, it can be positioned horizontally on the theta_ d
arm.
Vertical mount
When HyPix-400 is attached to the HyPix-400 holder (optional: A00003065)
and installed on SmartLab SE, it can be positioned vertically on the theta_d arm.
For
more details, refer to the instruction manual
of
HyPix-400.
HyPix-400 (optional: A00010204)
Horizontal mount (using dedicated bolder) Vertical mount (using optional bolder)
( optional: A00003065)
Installation
of
HyPix-400
70
SmartLab SE: Automated Multipurpose X-ray Diffractometer
