Depending on measurement purposes, you can change attachment heads with
various adjustment axes. Attachme
nt
heads can be
in
stalled on standard, ~' and
<p
a
tt
achment bases (all optional).

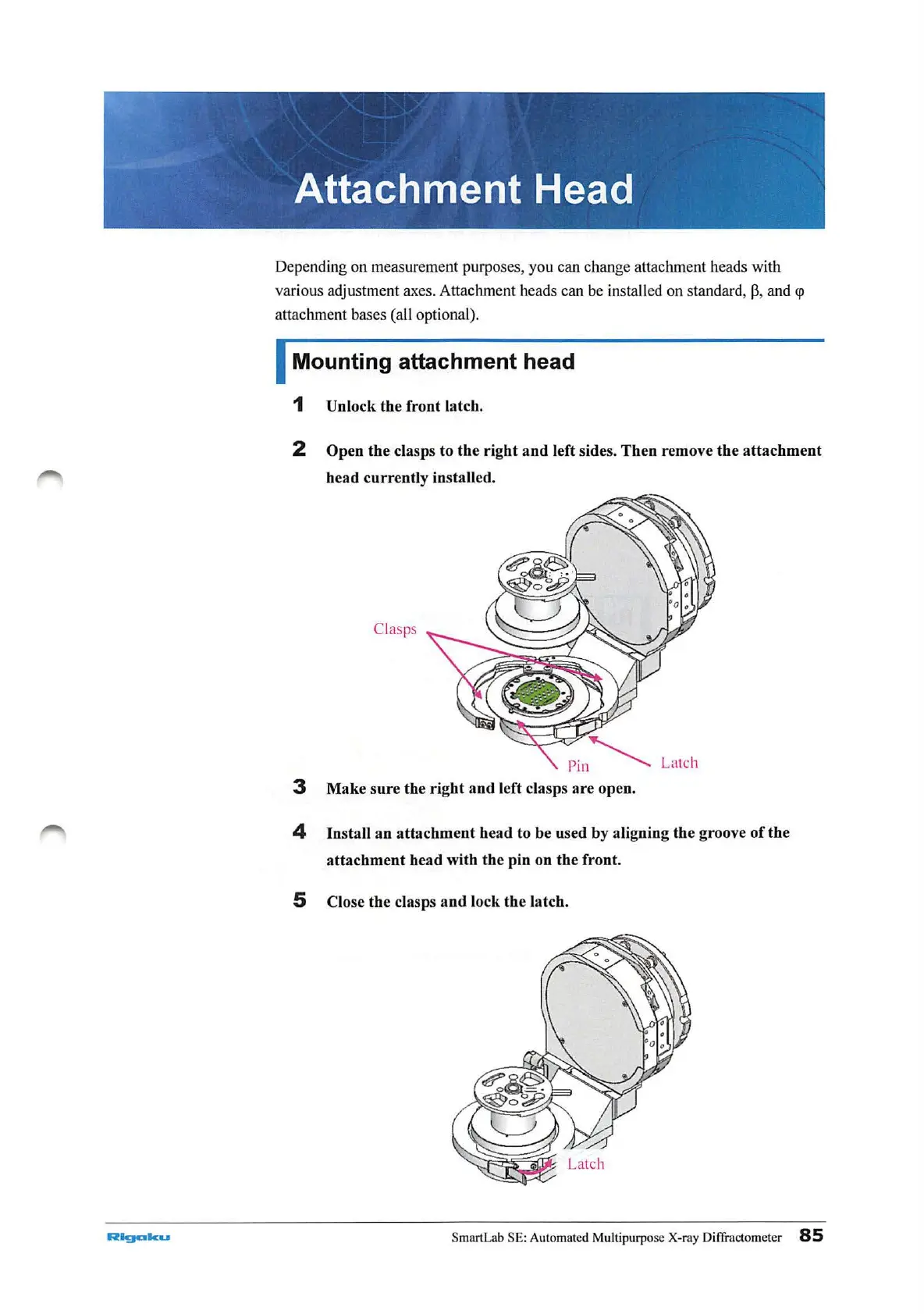

I Mounting attachment head
1 Unlock the front latch.
2 Open
the
clasps to the right and left sides. Then remove
the
attachment
head currently installed.
Clasps
3 Make
sure
the
right
and
left clasps are open.
4 Install
an
attachment head to be used by aligning the groove
of
the
attachment bead with the pin on the front.
5 Close the clasps
and
lock the latch.
Rlgaku
SmartLab SE: Automated Multipurpose X-ray Diffractometer
85
