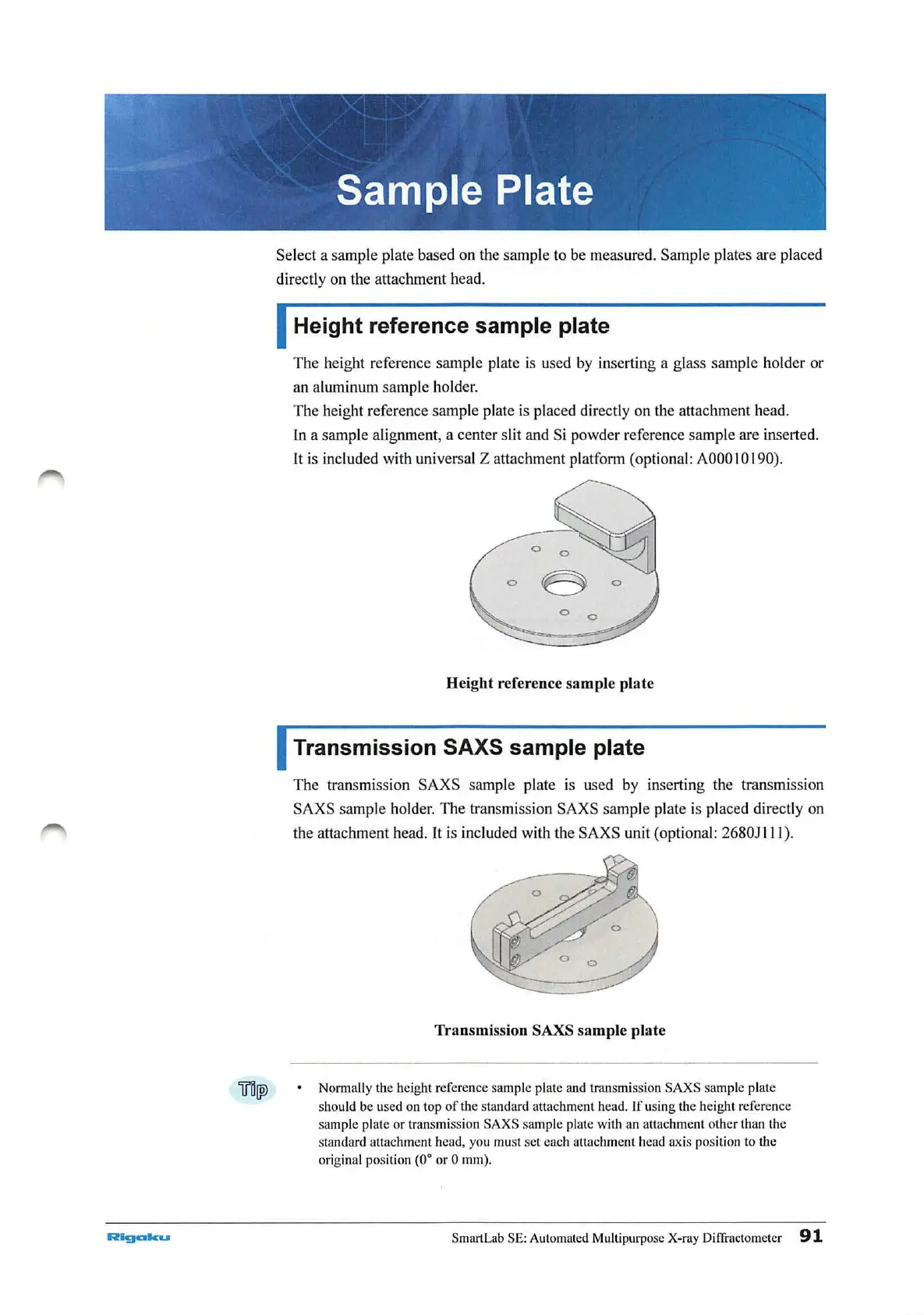

Select a sa mple plate based on the sa mple to be measured. Sample pl ates are pl aced
directly on the attachment head.
I Height reference sample plate
The height reference sample pl ate is used by inserting a glass sample holder or
an aluminum
sa mple holder.
The height reference
sa mple plate is placed directly on the attachment head.
In a sa mple a li gnment, a cent er slit and Si powder reference sample are inserted.
It is included with universal Z attachment platform
(opt ional: AOOO IO 190).
Height reference sample plate
I Transmission SAXS sample plate
The transmission SAXS sample plate is u se d by inserting the transmission
SAXS
sa mple ho ld er. The transmission SAXS sa mple plate is placed directly on
the attachment head. It is included with the SAXS unit (optional: 26 80Jl 1 l) .
Transmission SAXS sample plate
• No rma ll y the h eig ht reference sa mple plate and transmi ss ion SA.XS sample plate
should be us
ed on top of the standard a t1 achment head. If using the heig ht reference
sample plate or transmission
SA.XS sample pl ate with an attac hm e nt other than the
standard a
tt achme nt head, you must se t each attachment head axis position to the
o
ri ginal position (0° or O mm ).
SmartLab SE: Automated Multipurpose X-ray D
ilTr ac tometer 91
