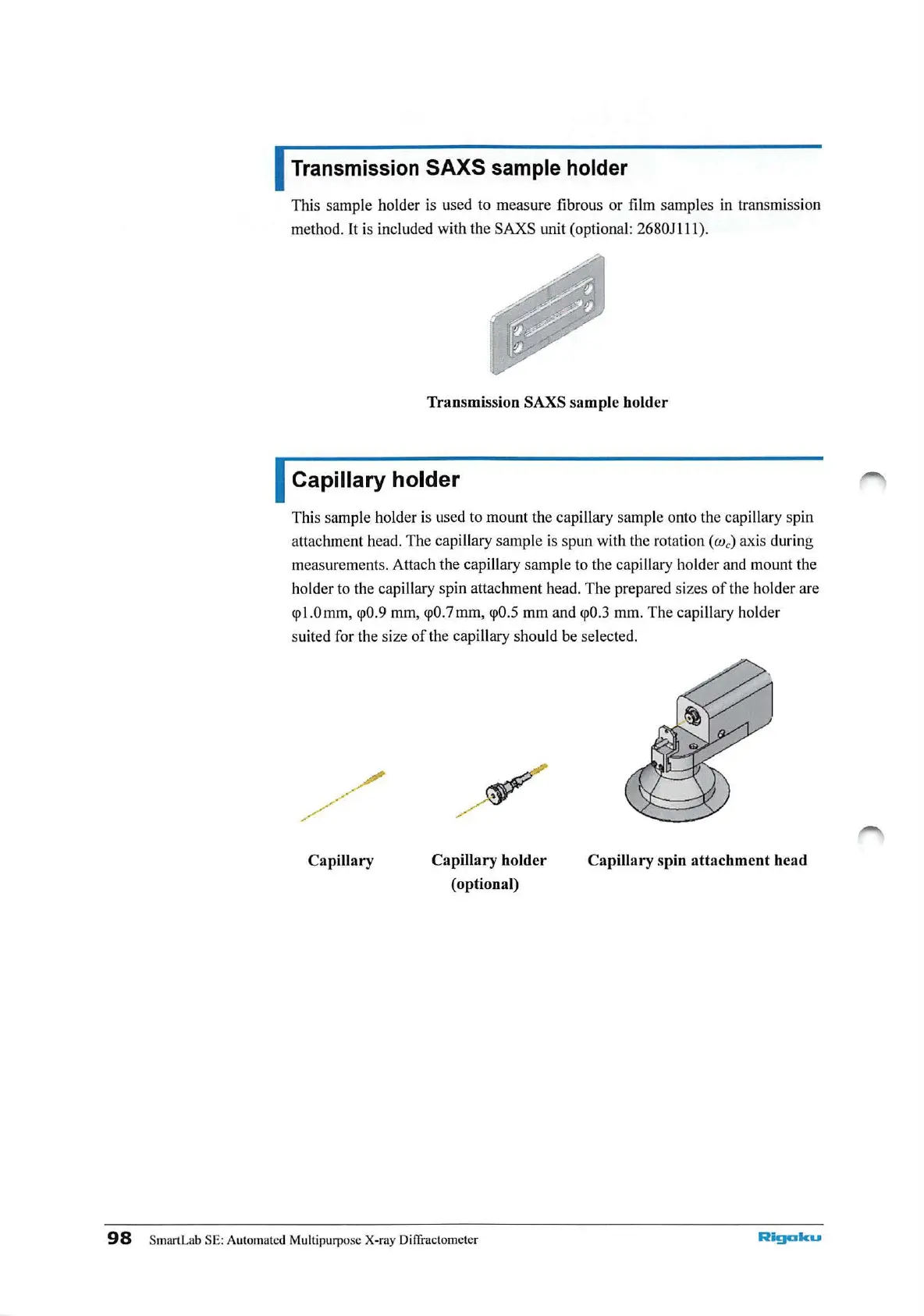

I Transmission SAXS sample holder
This sample holder is used to measu re fibrous or film samples in transmission
method.
It is included with the SAXS unit (optional: 2680J 111 ).
Transmission SA.XS samp le holder
I Capillary holder
This sample holder is used to mount th e capi ll ary sam ple onto the capillary sp in
attachm
en t head. The capillary sam ple is spun with the rotation (we) ax is during
measurements. Attach the capillary
samp le to th e c ap illary holder and mount the
holder to the capillary spin attachment head.
The pr epa red sizes of the holder are
cp 1.0 mm, cp0 .9 mm, cp0.7 mm, cp0.5 mm and cp0.3 mm . The capi ll ary hold er
suited for the size of the capi ll ary sho uld be selected.
Capillary
Capillary holder
(optional)
98 S manL ab SE : Automated Multipurpose X-ray Diffractometer
Capillary spin attachment head
