FastFourierTransformswithRigolOscilloscopes

FFT(FastFourierTransform)isaprocesswhichconvertsatime‐domain
signalintoitsfrequencydomainequivalent.Commonapplicationsforusage
ofFFTwaveformsare:

z Measuringharmoniccontentanddistortioninsystems
z CharacterizingnoiseinDCpowersupplies
z Analyzingvibration

Howtoobtainawaveform'sFFT?

 InthisexampleanFFTwillbegener at edforthe1KHzsquare
waveacquiredonChannel1asseenbelow.Thissignalcanbe
duplicatedonanyRigolscopebyattachingtheprobetothesquare
wavegenerat orportonthefrontoftheinstrument.Onceyoudo
that,

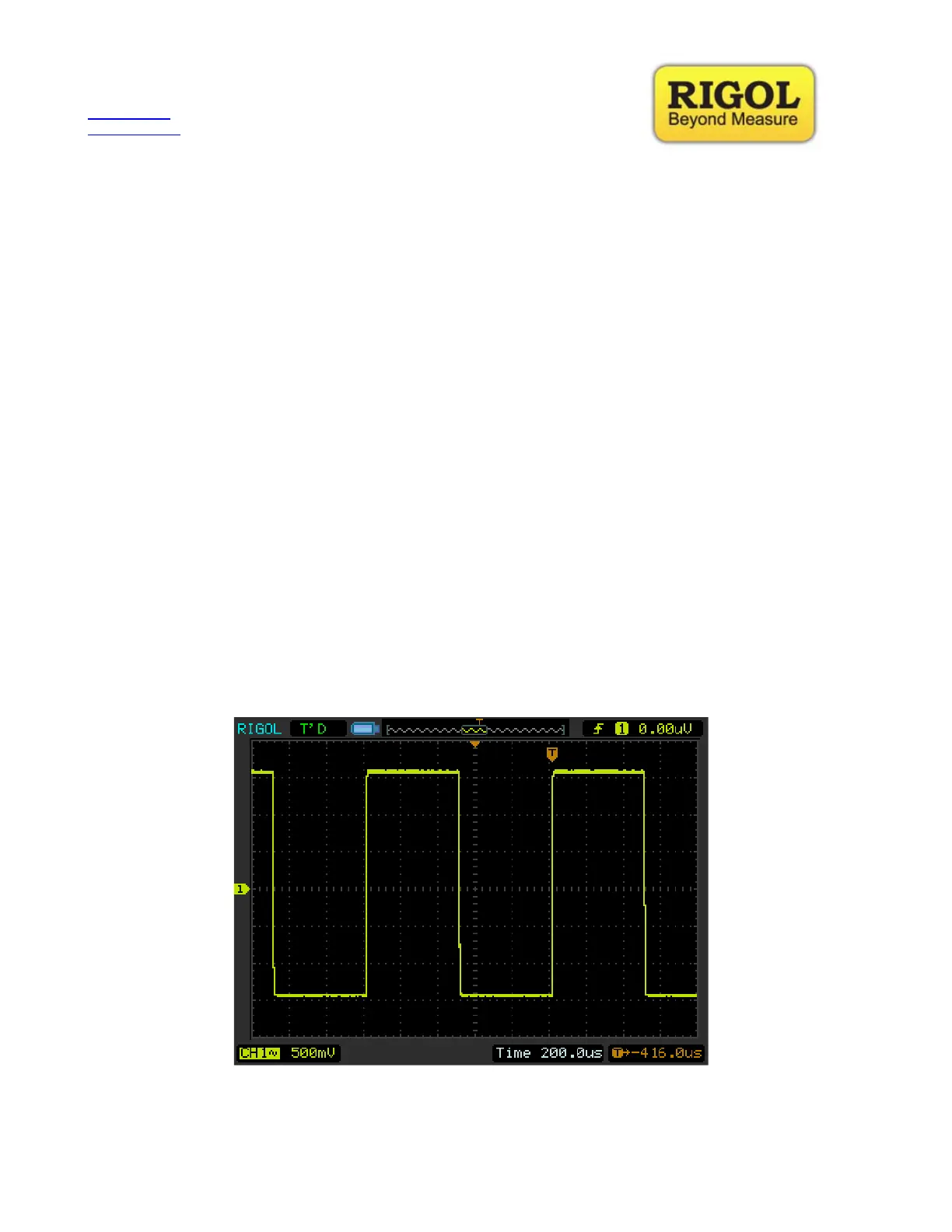

pushAUTOthenyouwillseethis:


