Chapter 21 Remote Control RIGOL

MSO8000 User Guide 21-5

5. Control the instrument remotely

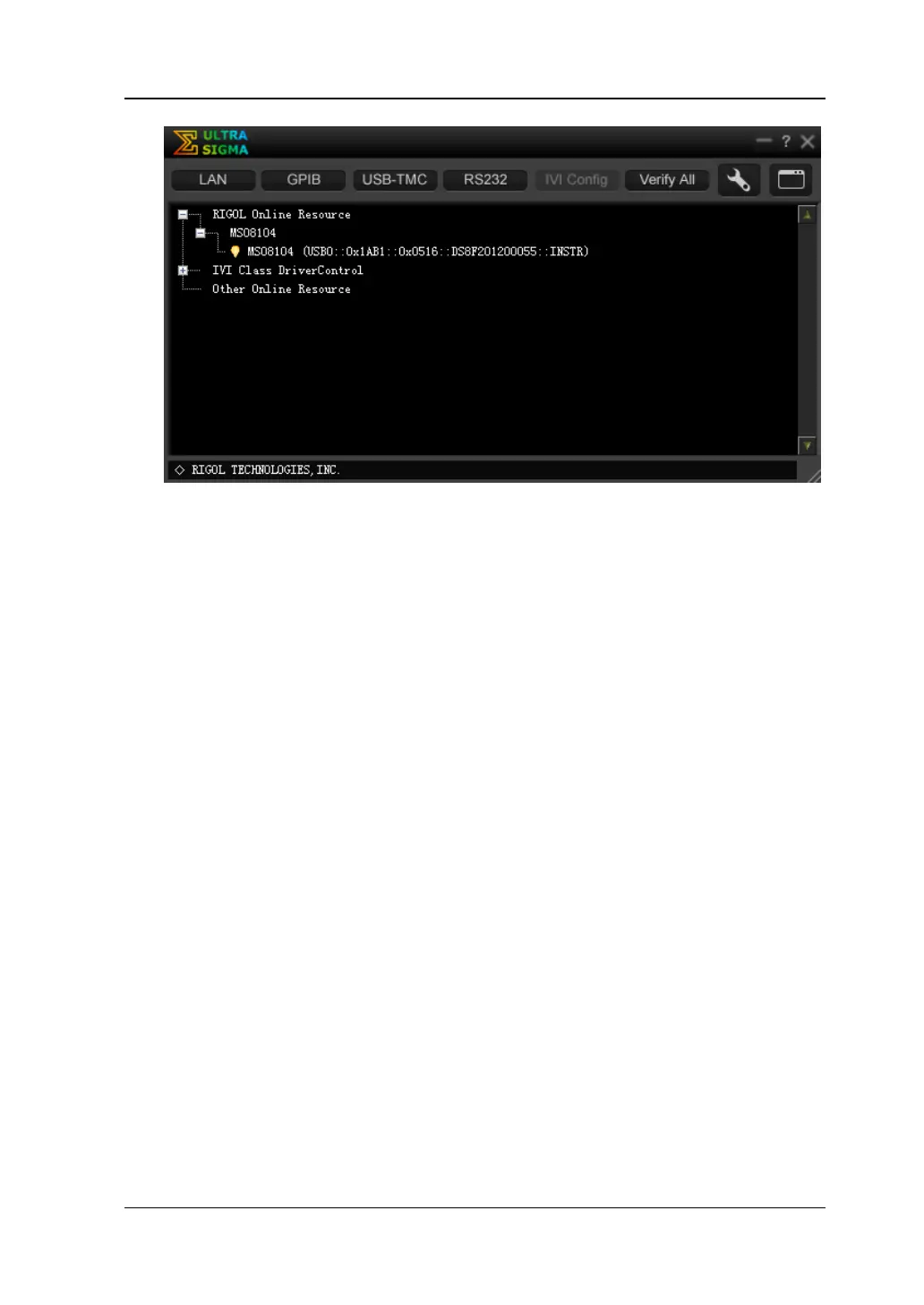

Right-click the resource name "MSO8104

(USB0::0x1AB1::0x0516::DS8F201200055::INSTR)" and select "SCPI Panel

Control" to turn on the remote command control panel, through which you can

send commands and read data.
