8 User Guide for PVA7000 Series Active Probe
2. Solder-in Probe Head
The solder-in probe head includes two types: solder-in differential probe
head and solder-in single-ended probe head, as shown in Figure 5 and
Figure 6. Wherein, solder-in differential probe head is suitable for
measurement of high-density IC pin signals.

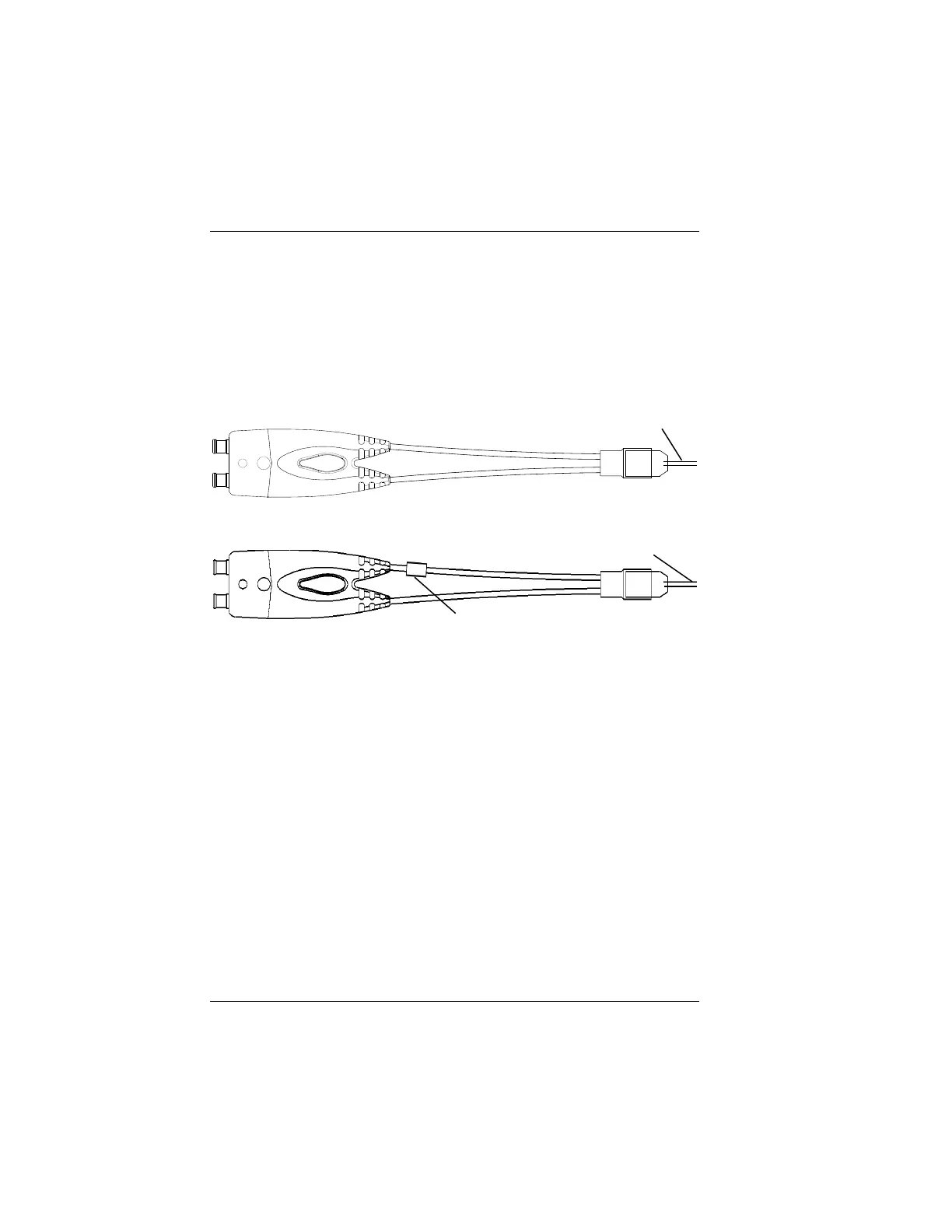

Figure 5 Solder-in Differential Probe Head
Figure 6 Solder-in Single-ended Probe Head
When using the solder-in probe head for measurement, please use an auxiliary
device to fix the probe head. Do not use your hand to fix the probe head, or
else, the lead resistor soldered onto the probe head might break or fall off.
What’s more, the hand-held position might also affect the probe performance.
The nickel wire of the solder-in probe head is a standard accessory. If the nickel
wire under use is damaged or broken, please replace it with an appropriate lead
resistor (refer to To Replace Probe Accessories).
