10 User Guide for PVA7000 Series Active Probe
To Connect to the Oscilloscope
After PVA7000 is connected correctly to a RIGOL MSO8000 series oscilloscope,
the oscilloscope recognizes the probe automatically and provides both power
and offset voltage to the probe. You can adjust the offset voltage (refer to To
Adjust Offset Voltage) and calibrate the probe (refer to To Calibrate the
Probe) by the front panel menu of the oscilloscope.
Please connect the probe to the oscilloscope following the steps below:

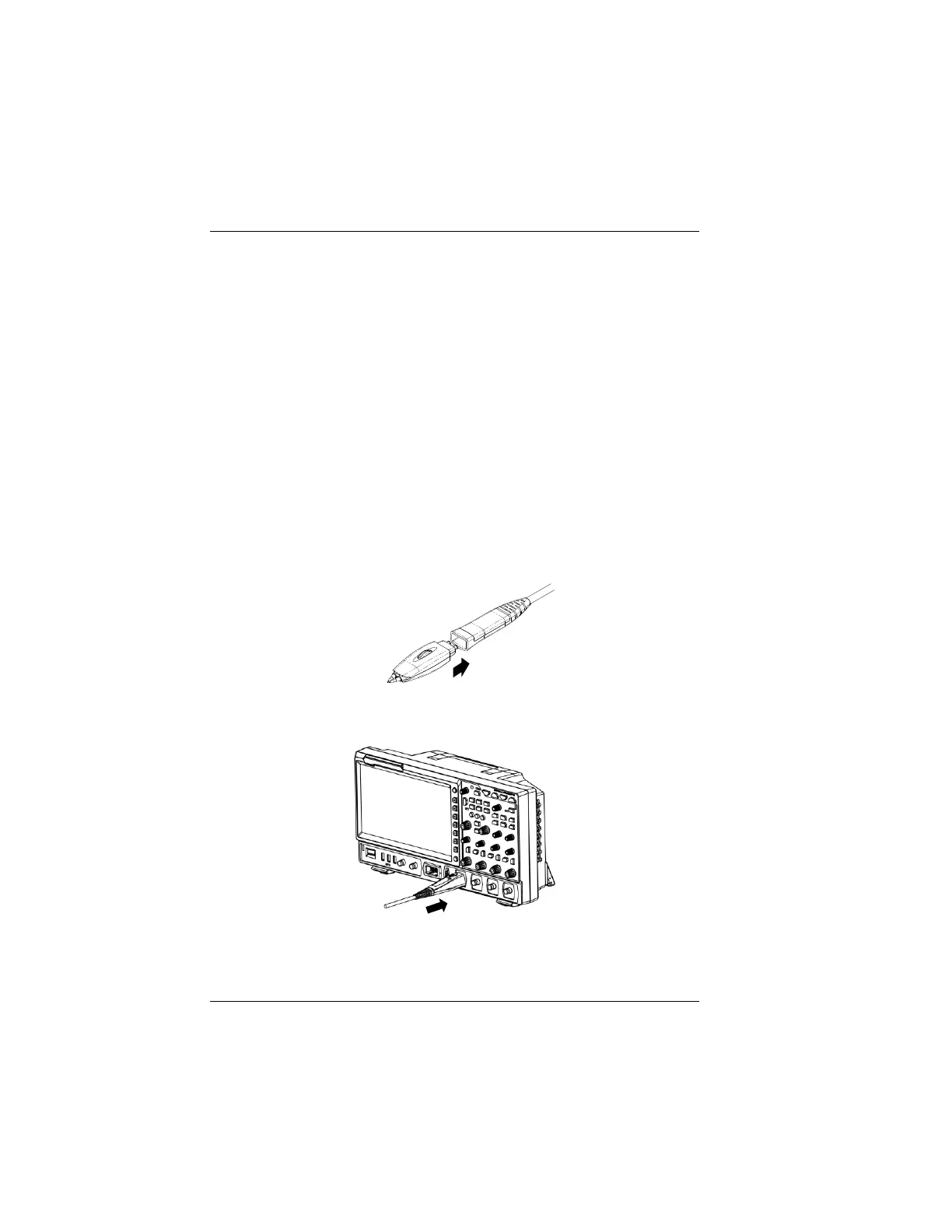

1. Connect the probe head (in the figure, taking a hand-held differential
probe head for example) with the active probe amplifier. If a single-ended
probe head is used, during the connection, pay attention to their polarities.
2. Connect the other end of the active probe amplifier to the channel input
connector of the oscilloscope and make sure the connection is tight.
3. Use any probe auxiliary device to connect the probe to the circuit to be
tested.
