Spectrogram and PvT Spectrum, the acquisition time of the real-time spectrum
measurement will be set to the PvT acquisition time.
⚫ The menu items under BW in PvT measurement are disabled. The menu items
of SPAN, AMPT, Trace, Sweep, Marker, Marker->, and Marker Func can be set
separately.
PvT Spectrum
Measurement Interface:

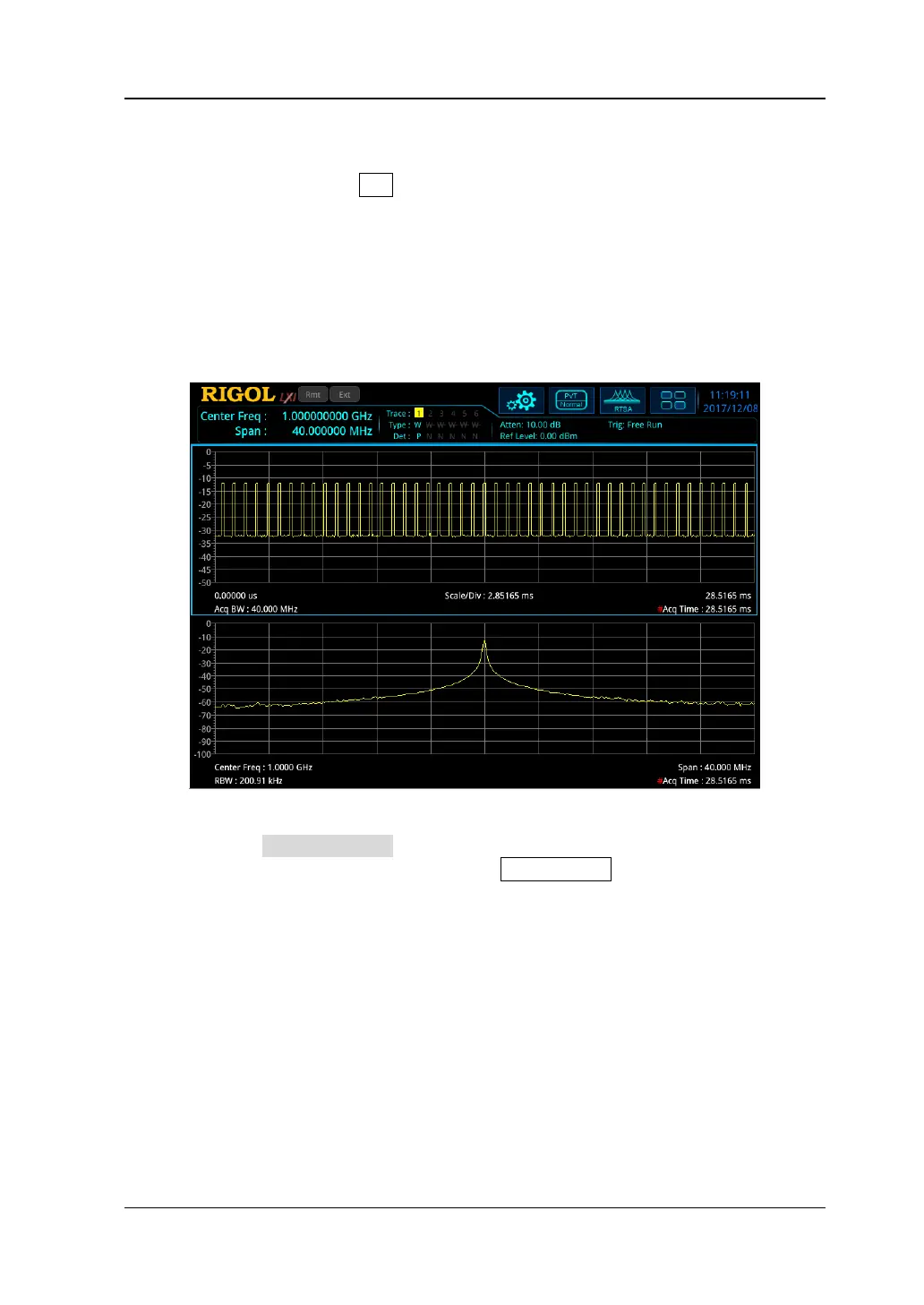

Figure 3-6 PvT Spectrum View
After you select PvT Spectrum to be the measurement type, the measurement
interface is shown in the figure above. Press Meas Setup to set the relevant
parameters.
Remarks:
⚫ The PvT Spectrum view is displayed in multiple windows, including PvT view and
real-time normal view. In PvT Spectrum view, multiple windows have a coupling
relationship. You can use the mouse or touch the screen to display one of the
windows in full screen.
⚫ The parameter rule in the PvT Spectrum view is consistent with that in the single
PvT view.
⚫ The parameter rule in the real-time normal view is consistent with that in the
single Normal view. Select the Normal view, Limit measurement function is
supported.
⚫ In PvT mode, the acquisition time applies to all the traces.
