Advanced Measurement Function (AMK)
Measurement Interface:

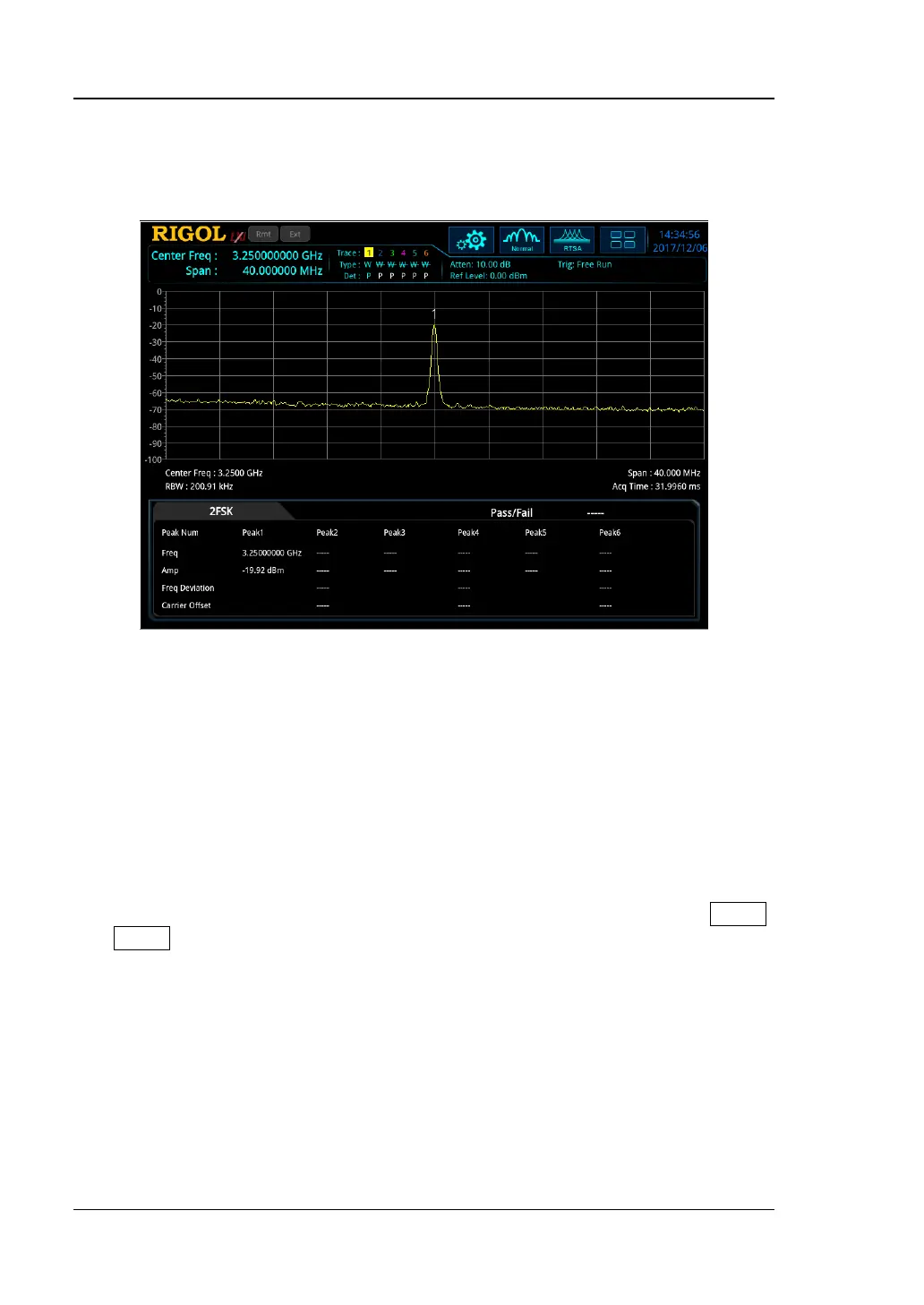

Figure 3-8 SSC Measurement Interface
(1) Meas Off
Disables the advanced measurement function and returns to the Normal view in
RTSA mode.
(2) SSC
SSC advance measurement function is a measurement analysis function
specially customized for 2FSK signal. When you enter the SSC function interface,
the screen is automatically split into two sections for display, with the upper
section as the measurement window displaying the measurement trace; the
lower section as the measurement result window displaying the measurement
results. The measurement interface is shown in the figure above. Press Meas
Setup to set the corresponding parameters.
To Next Page
