RIGOL Chapter 5 Shortcut Key
5-2 RSA5000 User Guide

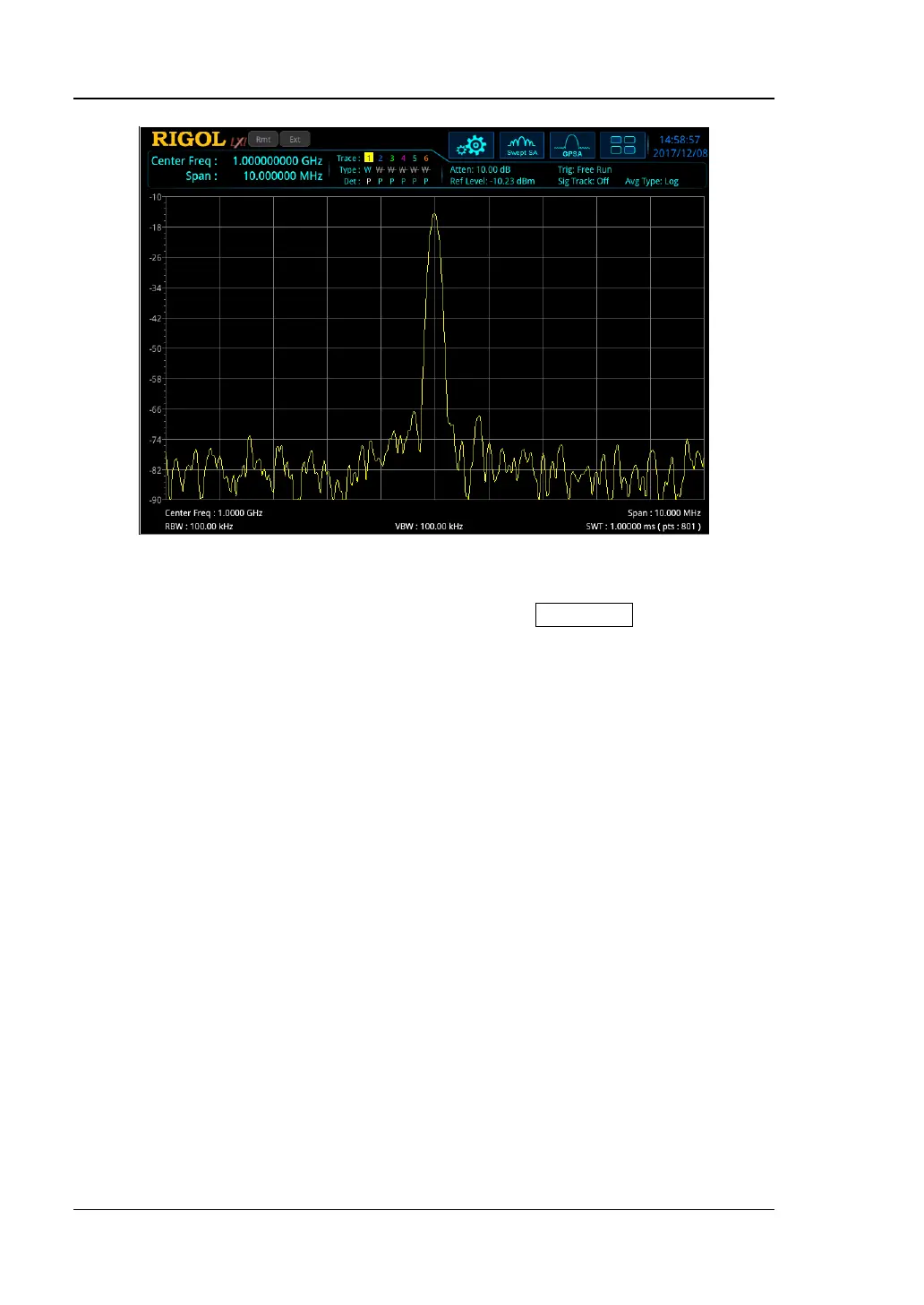

Figure 5-2 After Auto Search
Remarks:
⚫ In the process of auto search, the backlight of the Auto Tune key on the front
panel turns on. After the search is finished, the backlight of the key turns off.
⚫ Some parameters such as the reference level, scale, input attenuation, and
maximum mixer level may be changed during the auto search.
⚫ Enable the AMK function or the calibration signal in GPSA mode; or the Auto
Tune function is disabled in RTSA mode.
