Chapter 3 Functions of the Front Panel of RTSA RIGOL
RSA5000 User Guide 3-23
PvT Spectrogram
Measurement Interface:

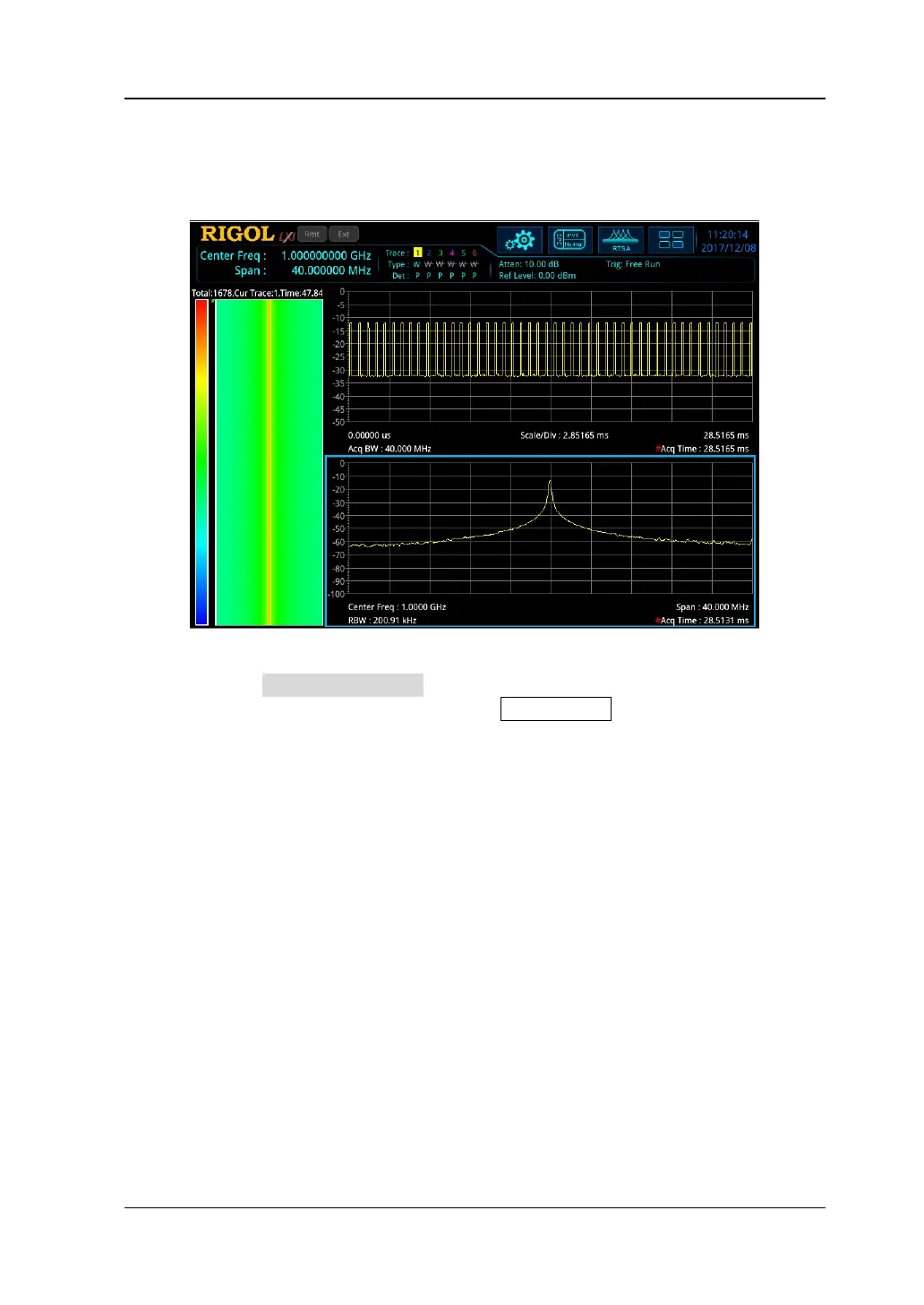

Figure 3-7 PvT Spectrogram View
After you select PvT Spectrogram to be the measurement type, the measurement
interface is shown in the figure above. Press Meas Setup to set the relevant
parameters.
Remarks:
⚫ The PvT Spectrogram view is displayed in multiple windows, including PvT view,
real-time normal view, and spectrogram view. In PvT Spectrogram view,
multiple windows have a coupling relationship. You can use the mouse or touch
the screen to display one of the windows in full screen.
⚫ The parameter rule in the PvT Spectrum view is consistent with that in the single
PvT view.
⚫ The parameter rule in the real-time normal view is consistent with that in the
single Normal view. Select the Normal view, Limit measurement function is
supported.
⚫ The parameter rule in the spectrogram view is consistent with that in the single
Spectrogram view.
⚫ In PvT mode, the acquisition time applies to all the traces.
