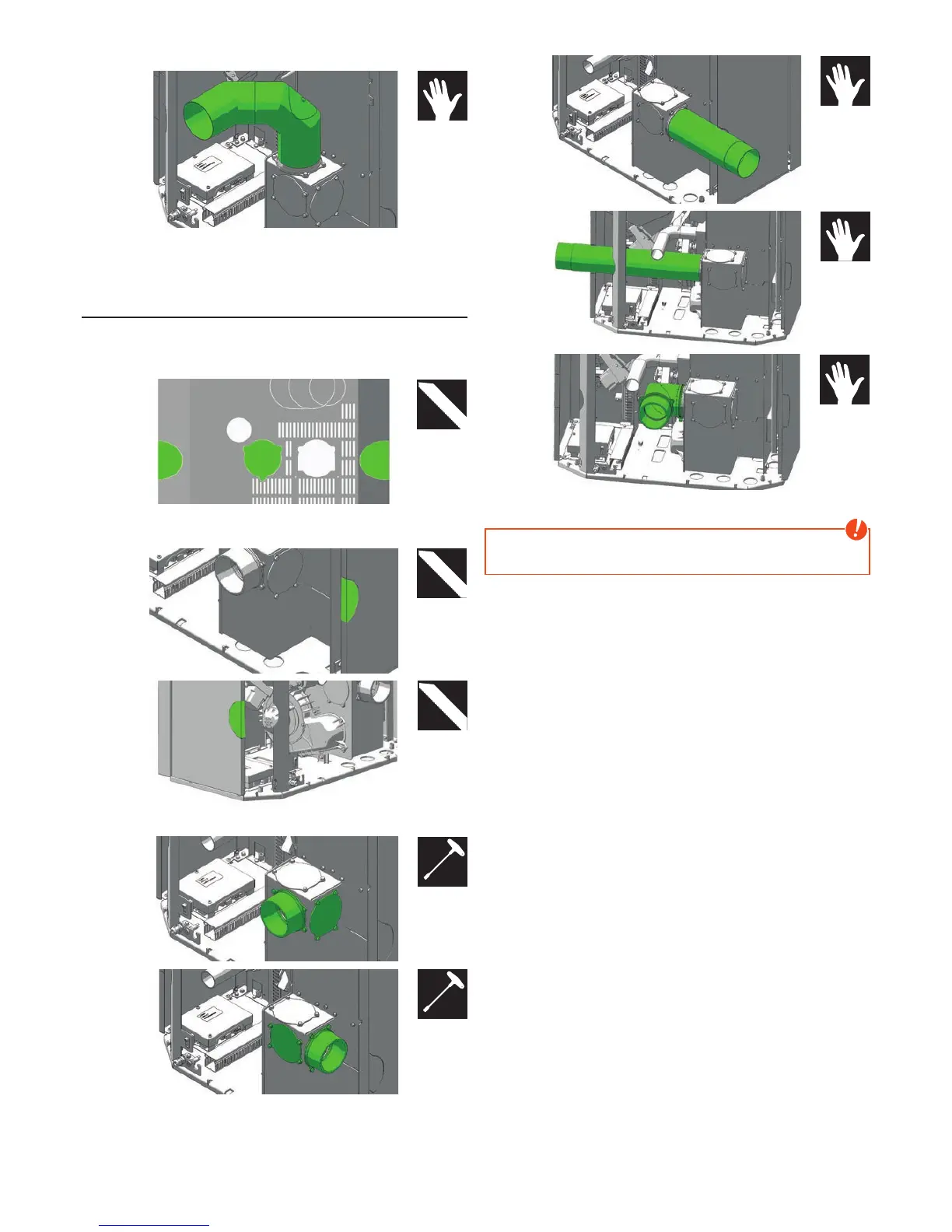

Put on a 90 degree elbow with cleaning lid and then another 45 degree elbow,
which has to be cut off about 4 cm, to reach the top center connection of the
flue gas pipe. Make sure that everything is tight!
Install the rear panel again.
Converting to side connection R3 + R4 and
connection rear in the center R2
Remove the rear panel as previously described.
Cut with a saw along the marked perforation of the rear wall for the option you
need.
Cut out one of the side panels of the stove along the marked perforation for
lateral option.
Replace the flue gas stack and one of the side cover plates against each other.
Place the correspondent flue pipe on the side. Make sure that everything is
tight!
Install the rear panel again.
Note
Protect all cables inside the stove from the heat! Improper installation can
damage your stove and void your warranty.
