Rinieri ELX Series - Using and Pre-Operation; Using the Cultivator; Pre-Operation Setup

7
3
4
6
5
8
11
1
9
2
10
USING
The ELX is used for light tillage and weeding around vineyard and orchard rows and between plant stocks, even when
plants are grown as close as 40 cm from each other.
It is suitable for vineyards and orchards situated on slopes with loose, fine and medium soil, and on rocky terrain, but
the rocks must not exceed 12 cm.
PRE-OPERATION

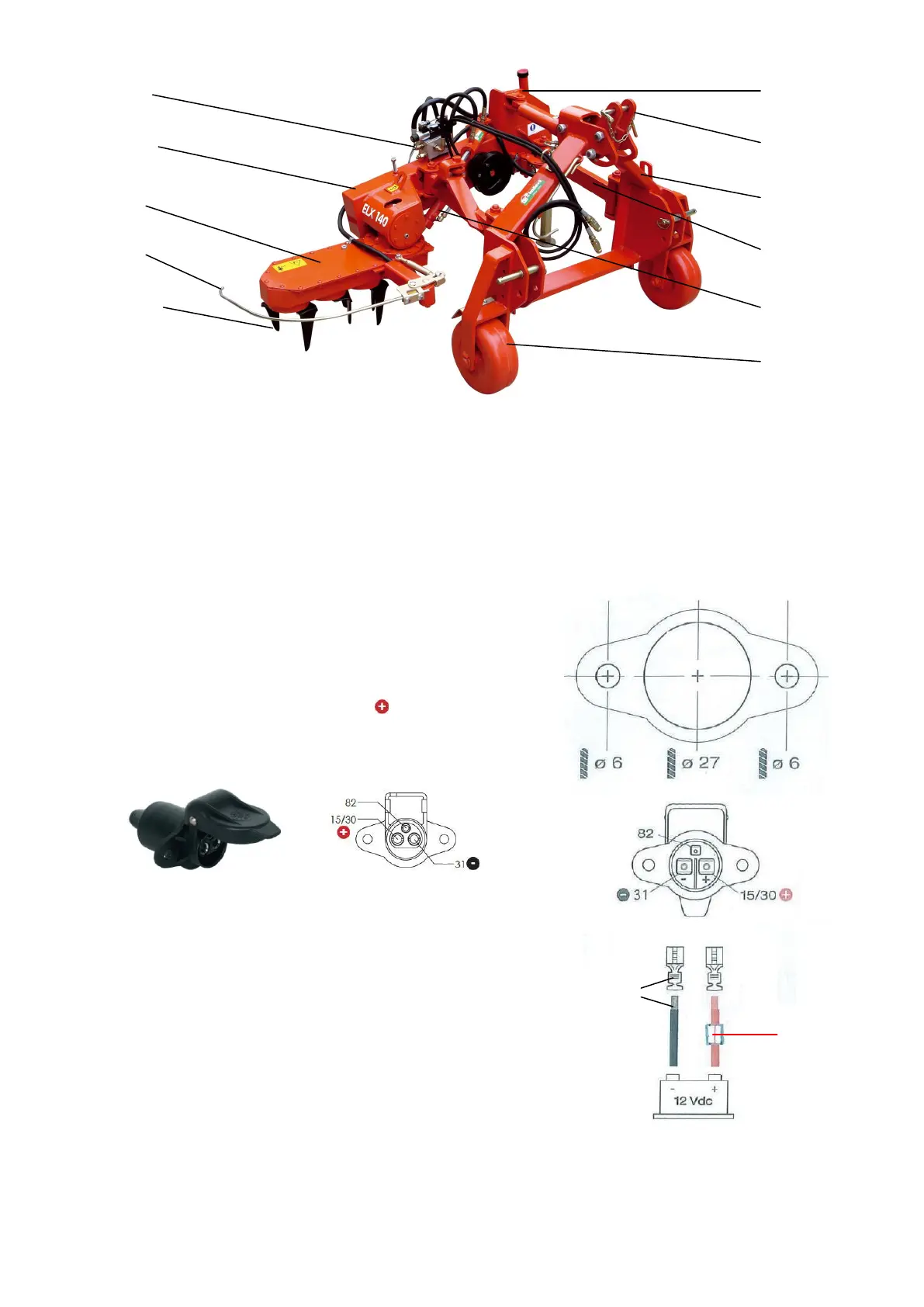

If the tractor does not have any 3-pin plug attachments, adapt its
system with the same 3-pin plugs that come with the machine
considering the scheme here above.
Connect the two 4mm
2
diameter cable groups max. impedance 18A
directly to the 12V battery of the tractor, one group for every 3-pin
attachment to add to the existing system.
For every group insert on the red power cable a 10A fuse.
Connect the 3-pin plugs to the tractor using the piercing mask printed
on the blister, then connect the cables to the 3-pin plugs paying
attention to respecting polarity.
3-pin attachment
The “ELX” cultivators that we deliver personally or pack and ship
partially assembled are provided with grease in the hydraulic system,
bevel gears, and gearbox, unless directed otherwise.
They were fully tested after assembly by having them revolve at full
speed and the hydraulic ram end stops have been adjusted.
If the machine is delivered without hydraulic oil in the hydraulic
unit’s tank it is necessary to fill it before starting to use the machine.
Use a mineral oil grade ISO VG 46 for hydraulic units like, for
example, Mobil DTE 25 and an aspiration oil filter with metal net
of µ60 with a flow of 54 L/min.
Ensure that all levels are equal to those described in the
MAINTENANCE chapter.
Apply the machine to the tractor using appropriate pins and, if
necessary, use the adaptor bushings.
The tractor should be heavy enough to counterbalance the arm when it is fully hoisted so that the front tires do not
lose their grip.
If it is not included with the machine, connect an adequately powered cardan shaft making sure the side with the
picture of a tractor is inserted in the tractor’s power takeoff.
Safety devices, should be applied only on the machinery side.
Fuse
10 A
Crimp
or sold
