VA Series Indoor LS Manual
33

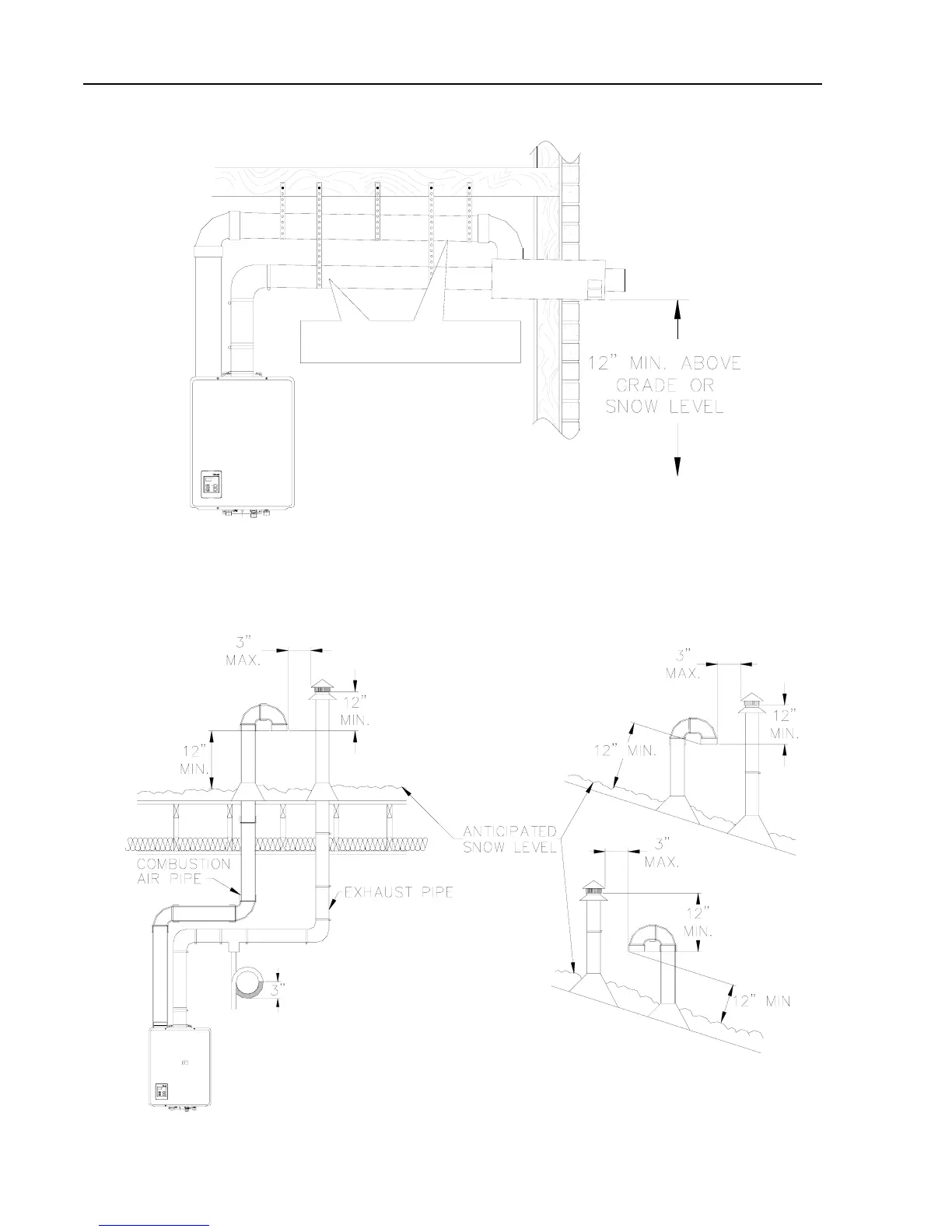

Vertical Terminations
The air intake requires a re
turn bend or two 90º elbows to prevent e
ntry of rain.
SLOPE INTAKE AND EXHAUST
TOWARD OUTSIDE TERMINATION
MINIMUM 1/4" PER FOOT
Horizontal with Concentric Termination
Flue Installation (R98LSi
,
R98LSi-ASME)
The vent termination and air intake
must be in the same pressure zone.
32
34
