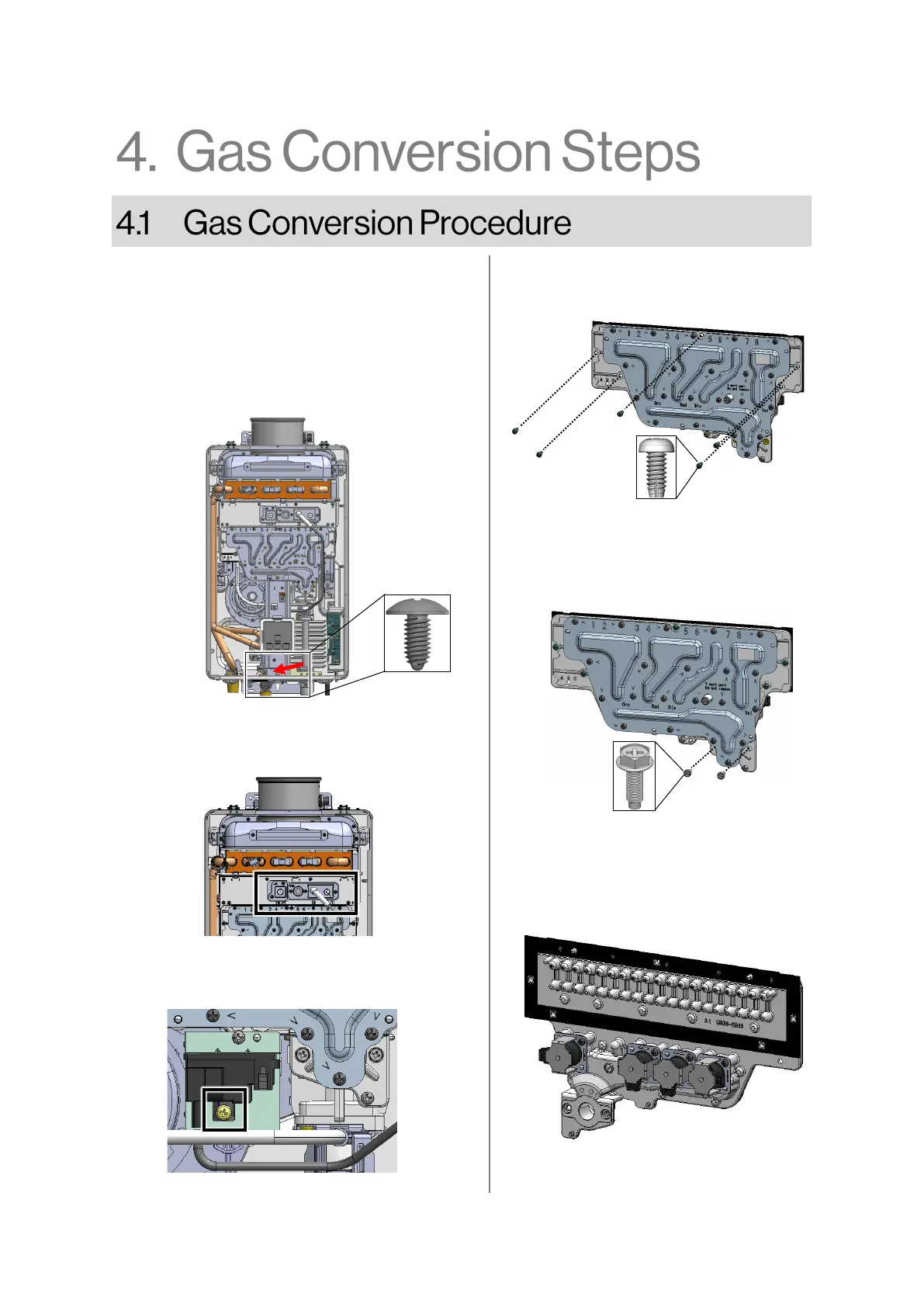

1. Remove front panel from water heater.
2. Turn off the gas.
3. Disconnect the electrical power.
4. Remove the screw securing the controller and
controller mounting plate to the water heater
(Figure 1).
5. Remove the controller and controller mounting
plate.
Figure 1
Figure 3
8. Remove the 5 screws around the pe-
rimeter of the existing gas manifold
(Figure 4).
6. Remove the flame rod and ignitor wire
(Figure 2).
Figure 4
Figure 5
9. Remove the 2 hex head screws secur-
ing the existing gas manifold to the
gas valve (Figure 5).
10. Rotate the existing gas manifold
assembly to access the solenoid wire
connections (Figure 6).
Figure 6
7. Remove screw securing the ignitor and place
the ignitor aside (Figure 3).
Figure 2
