Condensing Water Heater Service Manual 25
KB Series Component Replacement Instructions
RU80i/e, RU98i/e

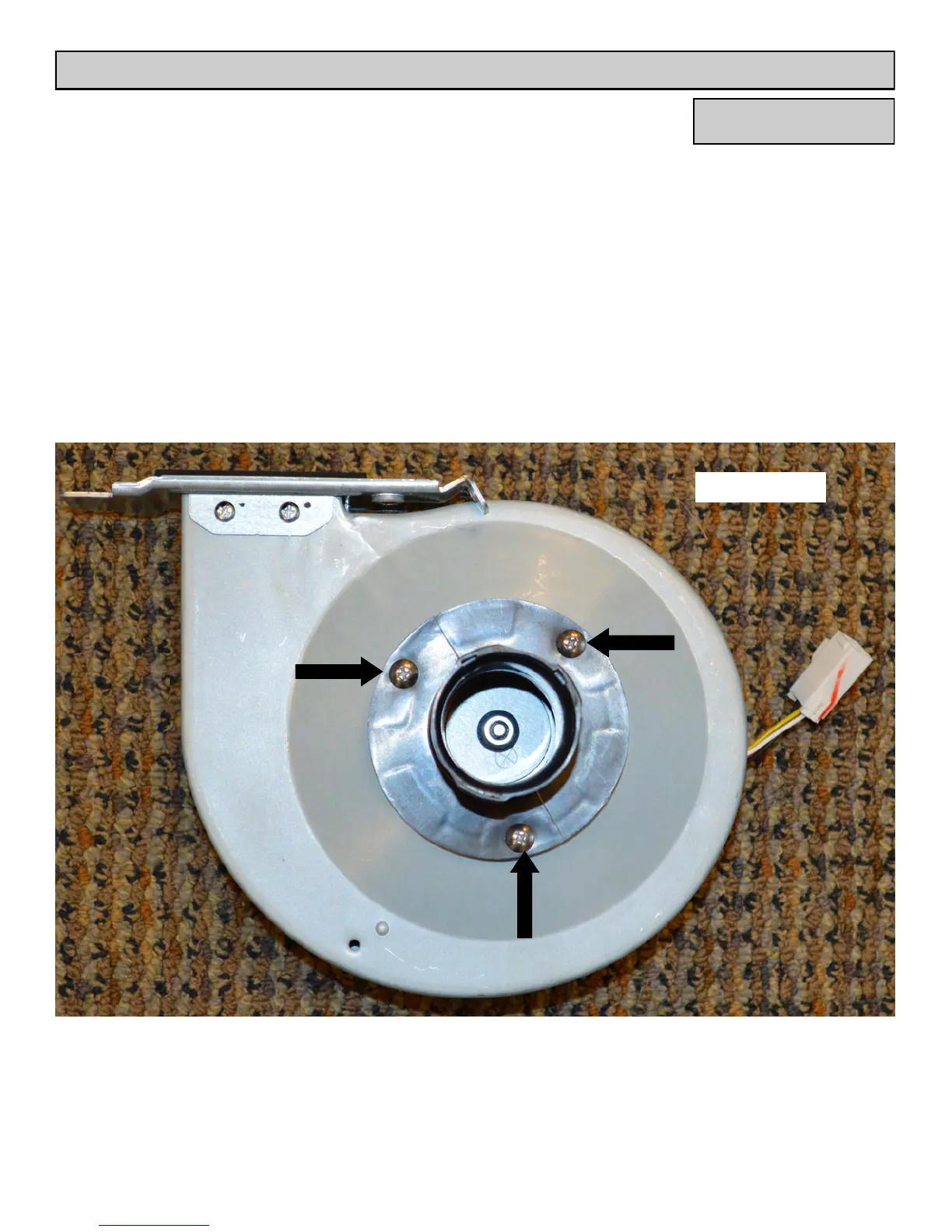

7.Remove 3 screws securing tube connector to fan motor. (FIGURE 2)
8.Install new fan motor.
9.Install tube connector using 3 screws. (FIGURE 2)
10.Connect Molex connector to fan motor harness. (FIGURE 1)
11.Install fan housing using 2 screws. (FIGURE 1)
12.Install front panel using 4 screws.
13.Turn on water supply, power supply, and gas supply.
14.Install the front panel using four screws.
FIGURE
FIGURE 2
Combustion Fan Motor
