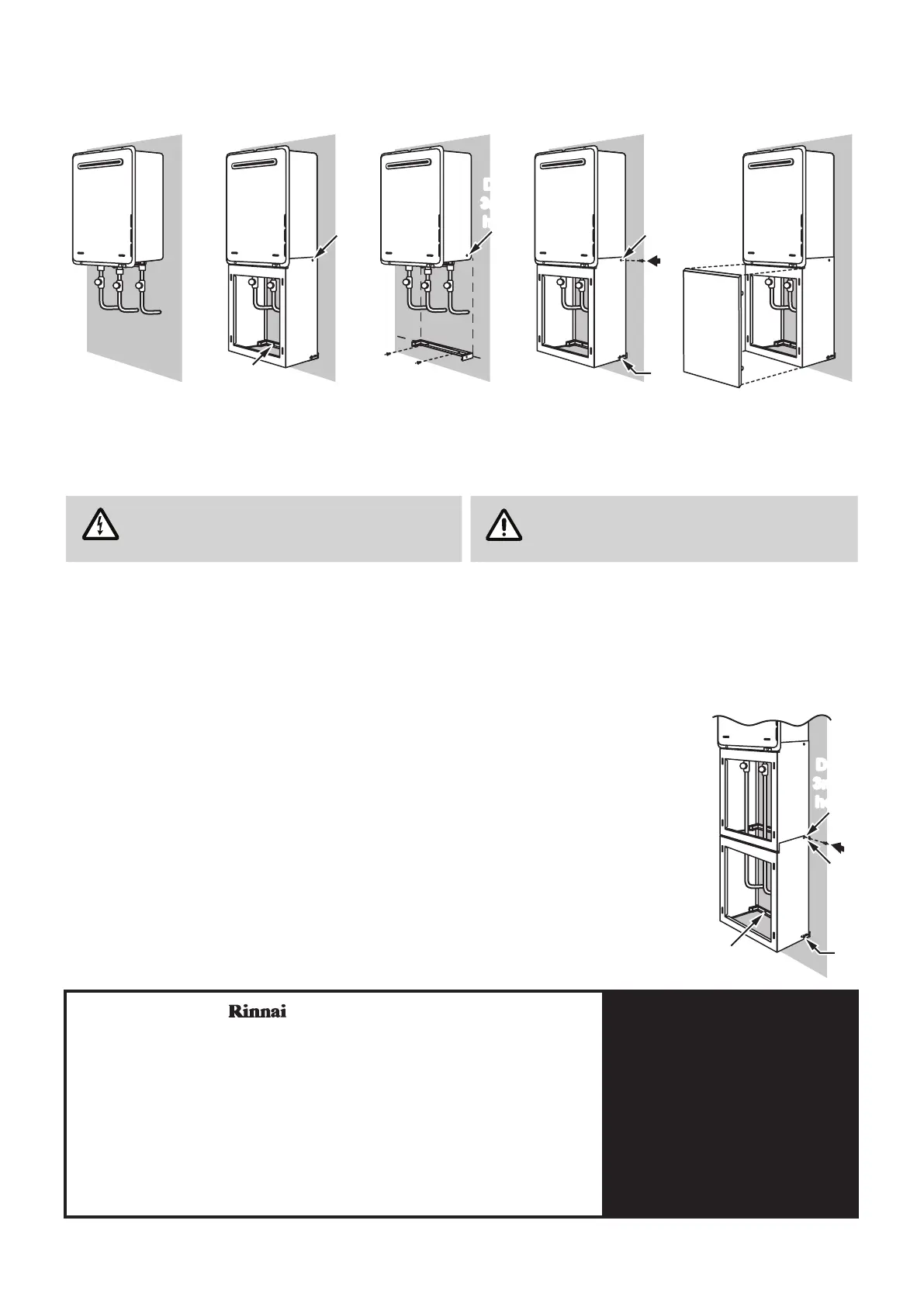

INSTALLATION METHOD
-
INSTALLER SUPPLIED CASING SCREWS
For models REU-VR/VRM2626WG, REU-VR/VRM2024WG and REU-VR/VRM1620WG it may be necessary to drill
pipe cover mounting holes into the water heater casing. If so do the following:
1. Install water heater and connections.
2. With the pipe cover held in the installed position, mark the location of the upper screw holes (A) onto the sides
of the water heater, also mark the location of the wall bracket securing holes (B).
3. Secure the wall bracket with suitable xings at the location marked in step 2.
WARNING
ENSURE THAT THE POWER SUPPLY
IS ISOLATED BEFORE ATTEMPTING
TO DRILL INTO APPLIANCE CASING.
CAUTION
Remove appliance cover to observe that
the holes being drilled do not damage
any components inside the water heater.
4. Carefully drill 3mm holes into the water heater at the locations marked in step 2.
5. Secure pipe cover to the water heater with two installer supplied short self-tapping screws (A).
6. Secure pipe cover to wall bracket (C) with screws provided, use elongated holes to keep components square.
7. Fit the front panel to complete the installation.
INSTALLATION OF ADDITIONAL PIPE COVERS
1. Install the rst pipe cover, as per the installation methods described on pages 1 or 2.
2. With the second pipe cover held in the installed position, mark the location of the upper
screw holes (A) onto the rst pipe cover, also mark the location of the wall bracket securing
holes (B) of the second pipe cover.
3. Secure the second wall bracket with suitable xings at the location marked in step 2.
4. Carefully drill 3mm holes into the rst pipe cover at the locations marked in step 2.
5. Secure both pipe covers together with two installer supplied short self-tapping screws (A).
6. Secure second pipe cover to wall bracket (C) with the screws provided, use elongated
holes to keep components square.
7. Fit the front panels to complete the installation.
Repeat this method as required for each additional pipe cover to be installed.
Drill
3mm
hole
Drill
3mm
hole
A
C
A
B
C
Drill
3mm
hole
Drill
3mm
hole
A
B
