Reference Manual V1.19 Software Versions 4.xx
003R-682-119 Page 11
3.9. Auxiliary Connections
This section provides diagrams to illustrate the terminal connections.
3.9.1. RS-232 Serial
Network: One Instrument to PC (RXD, TXD, GND)

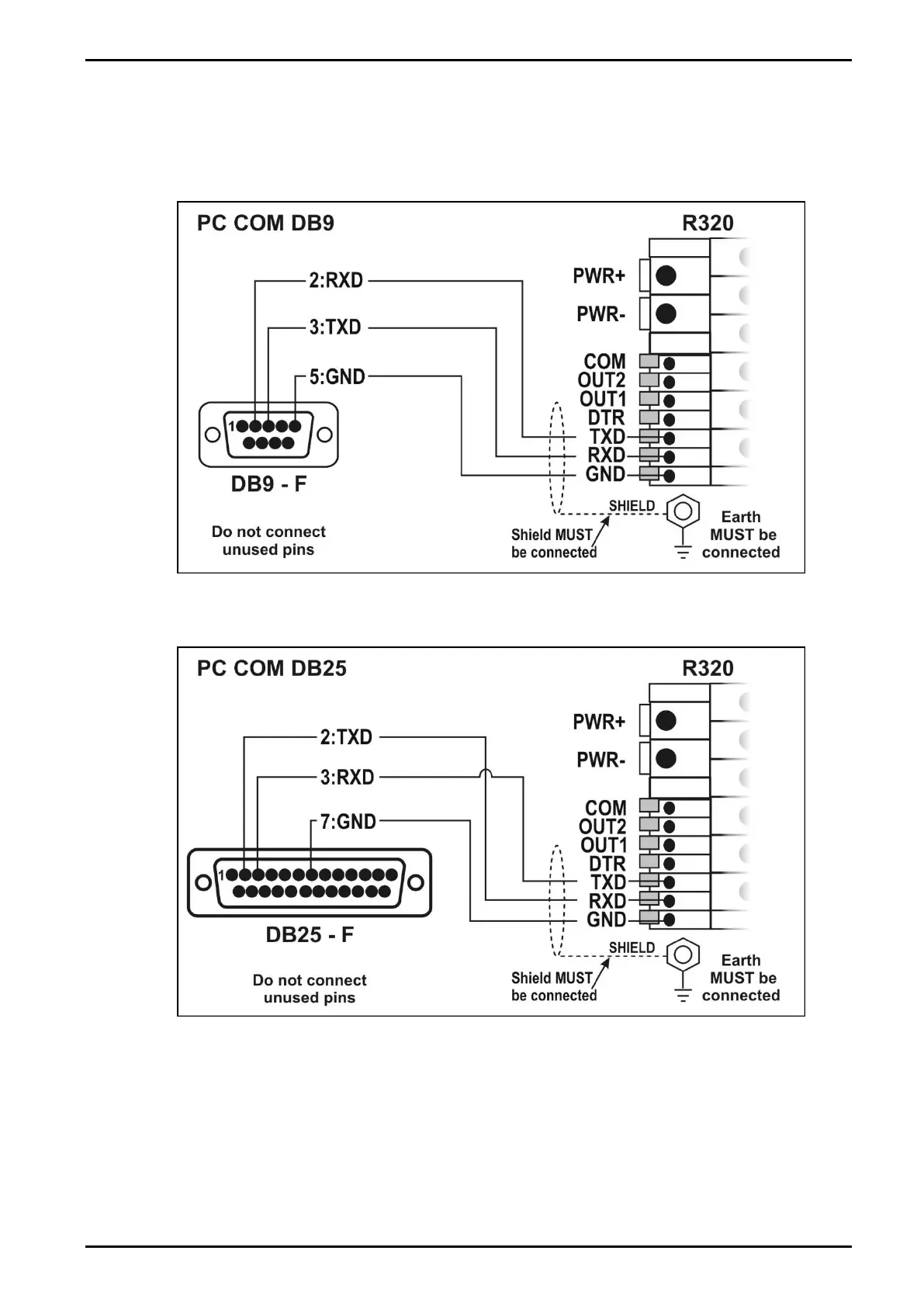

Figure 5: RS-232 – One Instrument to PC using COM Port (DB9)
Figure 6: RS-232 – One Instrument to PC using COM Port (DB25)
