3.1 Target power factor Setting

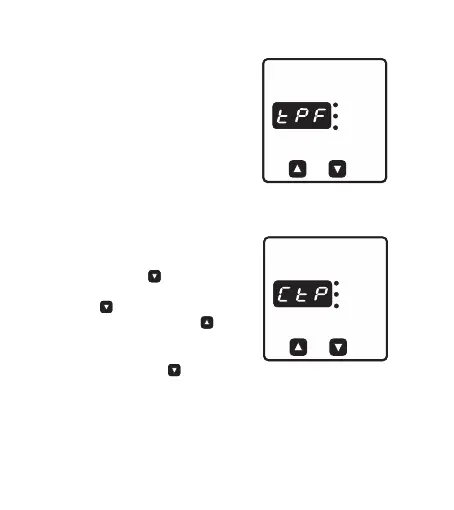

The Screen followed by label tPF is
target power factor setting.
once required PF value to set then
LAG or LEAD PF can be set on LEDs'
Range for power factor is 0.8 Lead to
0.8 Lag.
Default value is 0.99 Inductive
3.2 CT Primary Setting
The Screen shown further is used to set
CT Primary. Pressing Key will
enter into CT Primary Setup.
Pressing the key select for x1000
Multiplier selection. Pressing the will
change the decimal position.
Annunciation of "x1000" indicates the
value in Kilo. Pressing the will select
the decimal point position and multiplier
now CT Primary Value can be edited
The range of CT Primary is 1A to 9.99
kA.
Default is 5.00 A.
