Stapling papers which are aligned not properly (in stack tray) Item 22-1
Cause of the problem
- Confirm whether Sub-paddle or Main-paddle has not been worn out.
- Confirm whether Sub-paddle is low position when stacked papers in stack-tray are less than 50 sheets. (Ref-A)
- Confirm whether Sub-paddle is lowered by Paddle clutch for every paper. (Ref-B)
- Confirm whether movement of tamper is smooth. (Ref-C)
- Confirm whether position of keep paper in paper tray is right.
- Confirm whether the movement of the end-wall is smooth.

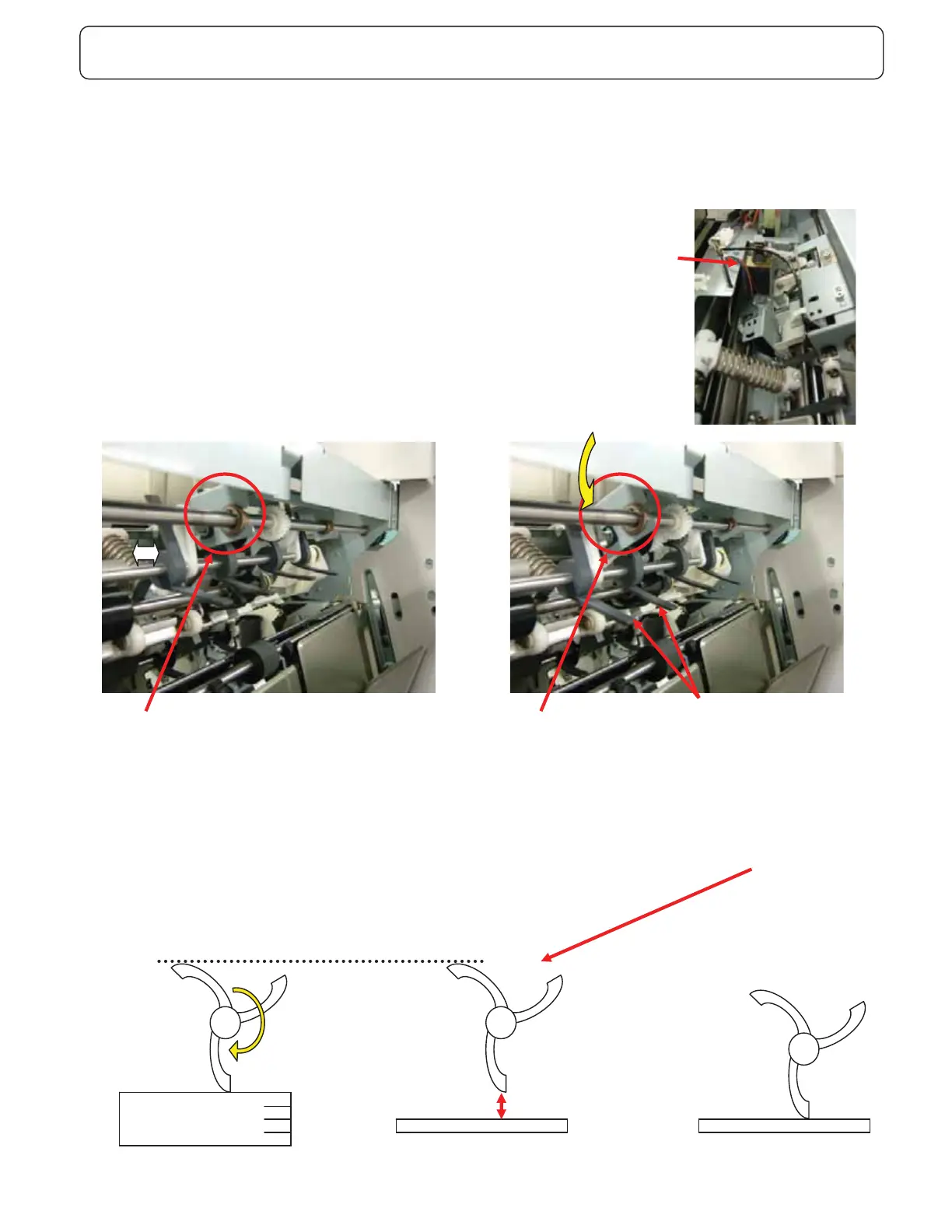

(Ref-A)
Up position
The solenoid is turned off when more than 51 sheets
of paper are stacked.
Confirm the movement of the solenoid by SE mode
012-052 and 012-053.
Down position
The solenoid is turned on when less than 50 sheets of
paper is stacked.
Confirm the movement of the solenoid by SE mode
012-052 and 012-053.
If the solenoid does not work, Sub-paddle cannot
contact papers properly.
Sub-paddle
Up position
Down position
More than 51 sheets
Less than 50 sheets Less than 50 sheets
Not contact enough
Solenoid
NG
OK
To Next Page
