RITE-HITE Revolution HVLS Fan User Manual

22 Publication: AMEN00064 2019‑03‑07
Revolution
®
HVLS Fan • Rogue
®
HVLS Fan Installation/Service/Owner's Manual Rite‑Hite
®

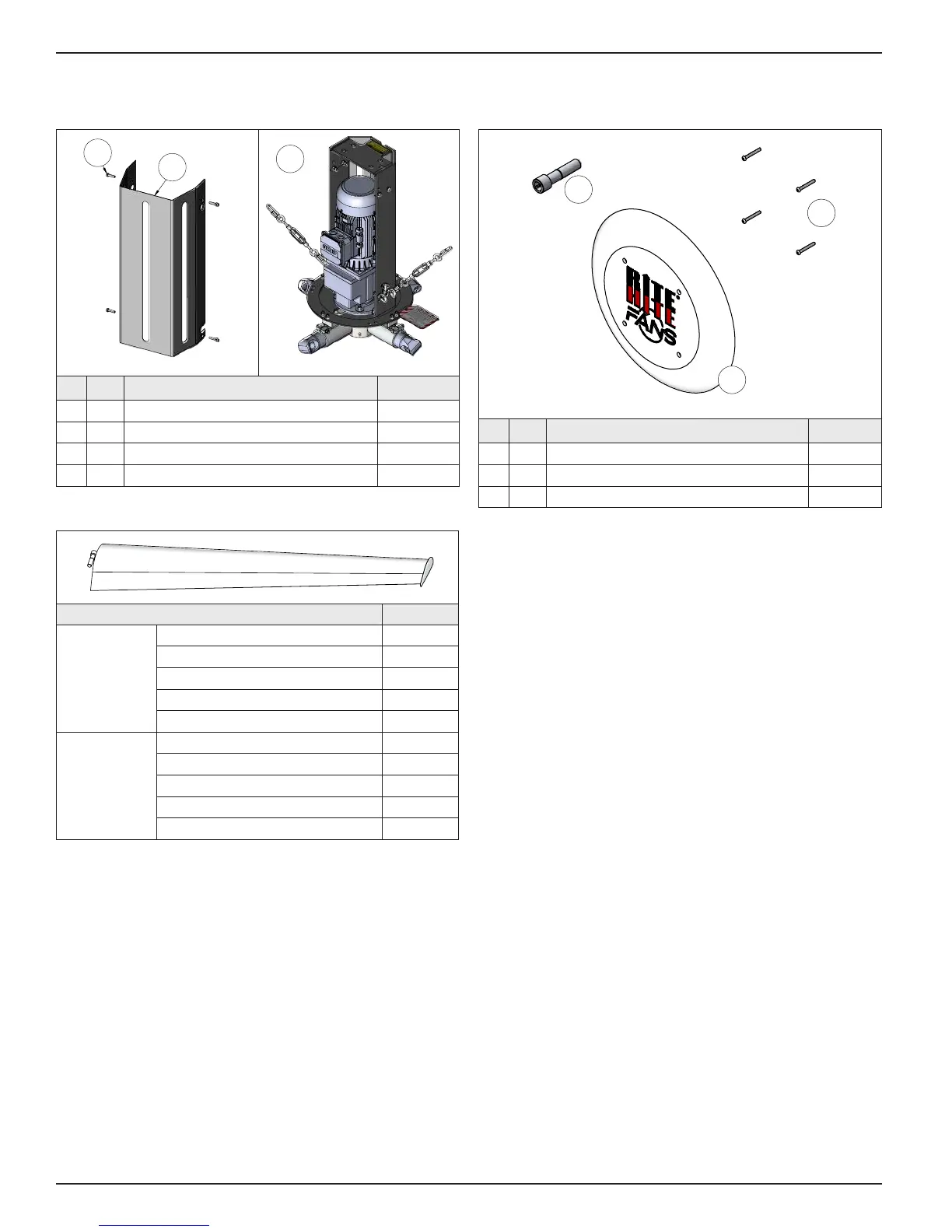

PARTS
Motor Cover, Motor Assembly
1012.XXX
MOT,ASSY,FAN,W/VOLTAGE
1
2
17900208 CVR,KIT,HOUSING,MOTOR,W/HRDW
MOTOR ASSEMBLY & COVER
ITEM QTY. DESCRIPTION
1 1 CVR,HOUSING,MOTOR,EXT,REV
2 4 SCR,HHMS,1/4-20X1,GR8,ZNC
2
3
1012.XXX
MOT,ASSY,FAN,W/VOLTAGE
1
2
17900208 CVR,KIT,HOUSING,MOTOR,W/HRDW
MOTOR ASSEMBLY & COVER
ITEM QTY. DESCRIPTION
1 1 CVR,HOUSING,MOTOR,EXT,REV
2 4 SCR,HHMS,1/4-20X1,GR8,ZNC
1
# QTY DESCRIPTION PART #
1 1 MOT,ASSY,FAN,W/VOLTAGE 1012.XXX
– – CVR,KIT,HOUSING,MOTOR,W/HRDW 17900208
2 1 CVR,HOUSING,MOTOR,REV –
3 4 SCR,HHMS,1/4‑20X1,GR8,ZNC –
Blades
BLADES
PART NUMBER DESCRIPTION
12510049 BLADE,SNGL,REV,8'DIA
12510050 BLADE,SNGL,REV,12'DIA
12510051 BLADE,SNGL,REV,16'DIA
12510052 BLADE,SNGL,REV,20'DIA
12510053 BLADE,SNGL,REV,24'DIA
12510056 BLADE,SNGL,REV,8'DIA,LHR
12510057 BLADE,SNGL,REV,12'DIA,LHR
12510058 BLADE,SNGL,REV,16'DIA,LHR
12510059 BLADE,SNGL,REV,20'DIA,LHR
12510060 BLADE,SNGL,REV,24'DIA,LHR
DESCRIPTION PART #
STANDARD
HEADROOM
BLADE,SNGL,REV,8’DIA 12510049
BLADE,SNGL,REV,12’DIA 12510050
BLADE,SNGL,REV,16’DIA 12510051
BLADE,SNGL,REV,20’DIA 12510052
BLADE,SNGL,REV,24’DIA 12510053
LOW
HEADROOM
BLADE,SNGL,REV,8’DIA,LHR 12510056
BLADE,SNGL,REV,12’DIA,LHR 12510057
BLADE,SNGL,REV,16’DIA,LHR 12510058
BLADE,SNGL,REV,20’DIA,LHR 12510059
BLADE,SNGL,REV,24’DIA,LHR 12510060
Hub
12510014 BLADE,SET(2),FAN,24'DIA
12510016 BLADE,SET(2),FAN,12'DIA,LHR
12510017 BLADE,SET(2),FAN,8'DIA,LHR
12510015 BLADE,SET(2),FAN,16'DIA,LHR
12510019 BLADE,SET(2),FAN,20'DIA
12510018 BLADE,SET(2),FAN,20'DIA,LHR
12510020 BLADE,SET(2),FAN,16'DIA
12510003 BLADE,SET(2),FAN,8'DIA
12510002 BLADE,SET(2),FAN,12'DIA
12510013 BLADE,SET(2),FAN,24'DIA,LHR
53760007
KIT,BLD,SCR,M24X100MM,AL
67870130
SCR,BHMS,SCKT,1/4-20X2,SS
17900203
CVR,HUB,DOME,RITEHITE,REV
BLADES & HUB PARTS
12510014 BLADE,SET(2),FAN,24'DIA
12510016 BLADE,SET(2),FAN,12'DIA,LHR
12510017 BLADE,SET(2),FAN,8'DIA,LHR
12510015 BLADE,SET(2),FAN,16'DIA,LHR
12510019 BLADE,SET(2),FAN,20'DIA
12510018 BLADE,SET(2),FAN,20'DIA,LHR
12510020 BLADE,SET(2),FAN,16'DIA
12510003 BLADE,SET(2),FAN,8'DIA
12510002 BLADE,SET(2),FAN,12'DIA
12510013 BLADE,SET(2),FAN,24'DIA,LHR
53760007
KIT,BLD,SCR,M24X100MM,AL
67870130
SCR,BHMS,SCKT,1/4-20X2,SS
17900203
CVR,HUB,DOME,RITEHITE,REV
BLADES & HUB PARTS
1
12510014 BLADE,SET(2),FAN,24'DIA
12510016 BLADE,SET(2),FAN,12'DIA,LHR
12510017 BLADE,SET(2),FAN,8'DIA,LHR
12510015 BLADE,SET(2),FAN,16'DIA,LHR
12510019 BLADE,SET(2),FAN,20'DIA
12510018 BLADE,SET(2),FAN,20'DIA,LHR
12510020 BLADE,SET(2),FAN,16'DIA
12510003 BLADE,SET(2),FAN,8'DIA
12510002 BLADE,SET(2),FAN,12'DIA
12510013 BLADE,SET(2),FAN,24'DIA,LHR
53760007
KIT,BLD,SCR,M24X100MM,AL
67870130
SCR,BHMS,SCKT,1/4-20X2,SS
17900203
CVR,HUB,DOME,RITEHITE,REV
BLADES & HUB PARTS
2
3
# QTY DESCRIPTION PART #
1 1 KIT,BLD,SCR,M24X100MM,AL 53760007
2 4 SCR,BHMS,SCKT,1/4‑20X2,SS 67870130
3 1 CVR,HUB,DOME,RITEHITE,REV 17900203
