Rittal CMC III User Manual

Rittal CMC III online comfort handle VX 9
5 Installation
EN
36mm
168mm
36mm
168mm
Ø4.5
Hinge on right Hinge on left
Ø4.5

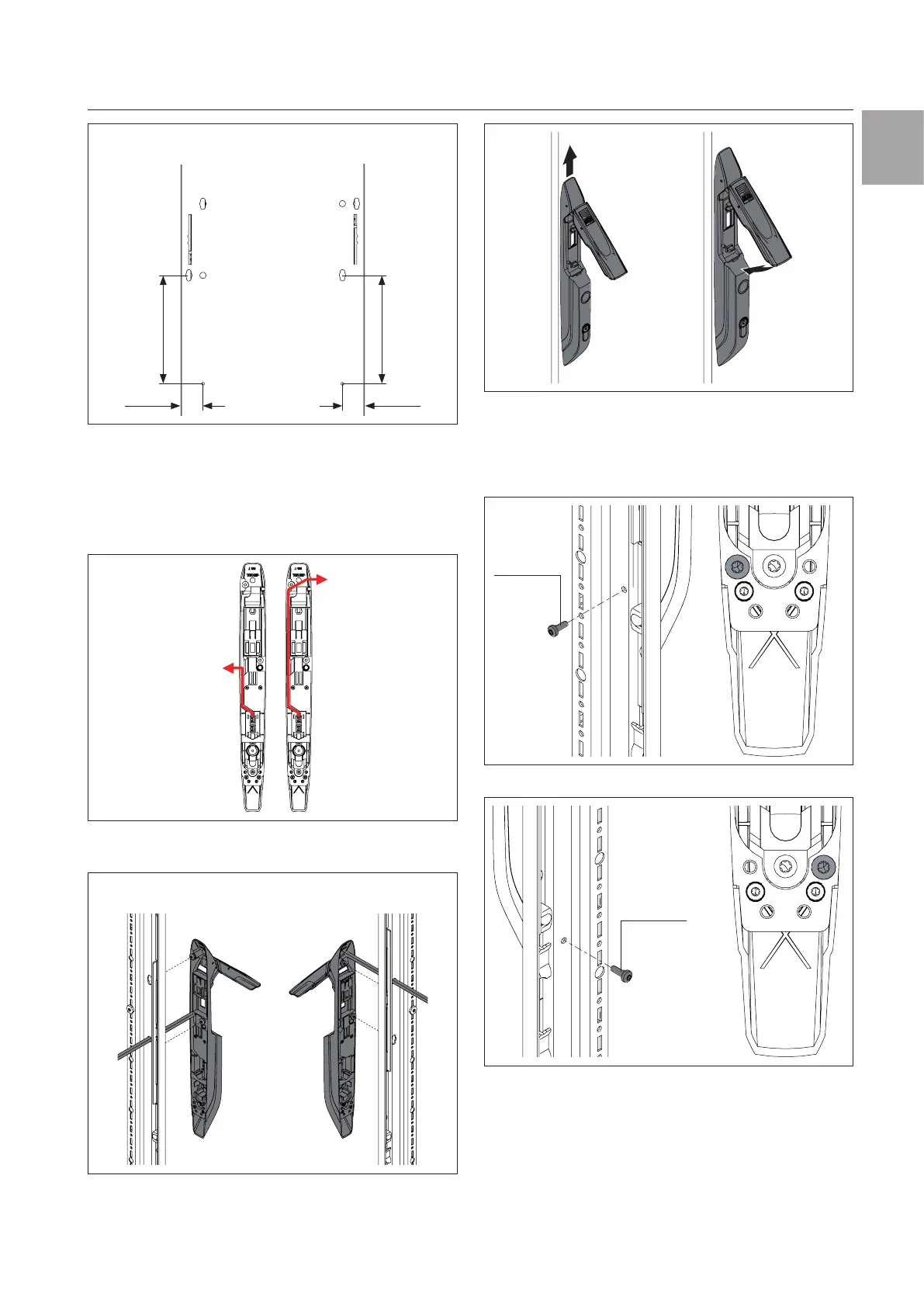

Fig.5: Drilling the holes
◾ Debur all drilled holes with a 90° countersink.
◾ Remove any swarf from the attachment point of the
comfort handle.
◾ Pass the cable through the opening in the sheet steel
door, depending on the position of the hinge (fig.6).
Hinge on right Hinge on left
Fig.6: Inserting the cable
◾ Attach the handle to the sheet steel door (fig.7).
Hinge on right Hinge on left
Fig.7: Attaching the handle
◾ Push the handle upwards and lock it (fig.8).
Fig.8: Locking the handle (right-hand hinge / left-hand hinge
accordingly)
◾ Screw the comfort handle to the sheet steel door,
depending on the position of the hinge (fig.9 or
fig.10, M
A
= 1.5±1Nm).
M4x12
M
A
= 1.5 ±
0.5Nm
Fig.9: Screw-fastening the comfort handle (hinge on right)
M4x12
M
A
= 1.5 ±
0.5Nm
Fig.10: Screw-fastening the comfort handle (hinge on left)
5.4.3 Installation on a VX glazed door
The installation is performed directly on the frame of a
VX glazed door.
◾ Drill appropriately sized holes in the required position
in the VX glazed door (fig.11).
