The service valves to which the vacuum pump must be connected are the following:
x
RS2 or RS2.P delivery (if present);
x
RS3 liquid;
x
positive intake RS1;
x
negative intake RS1 (if present).

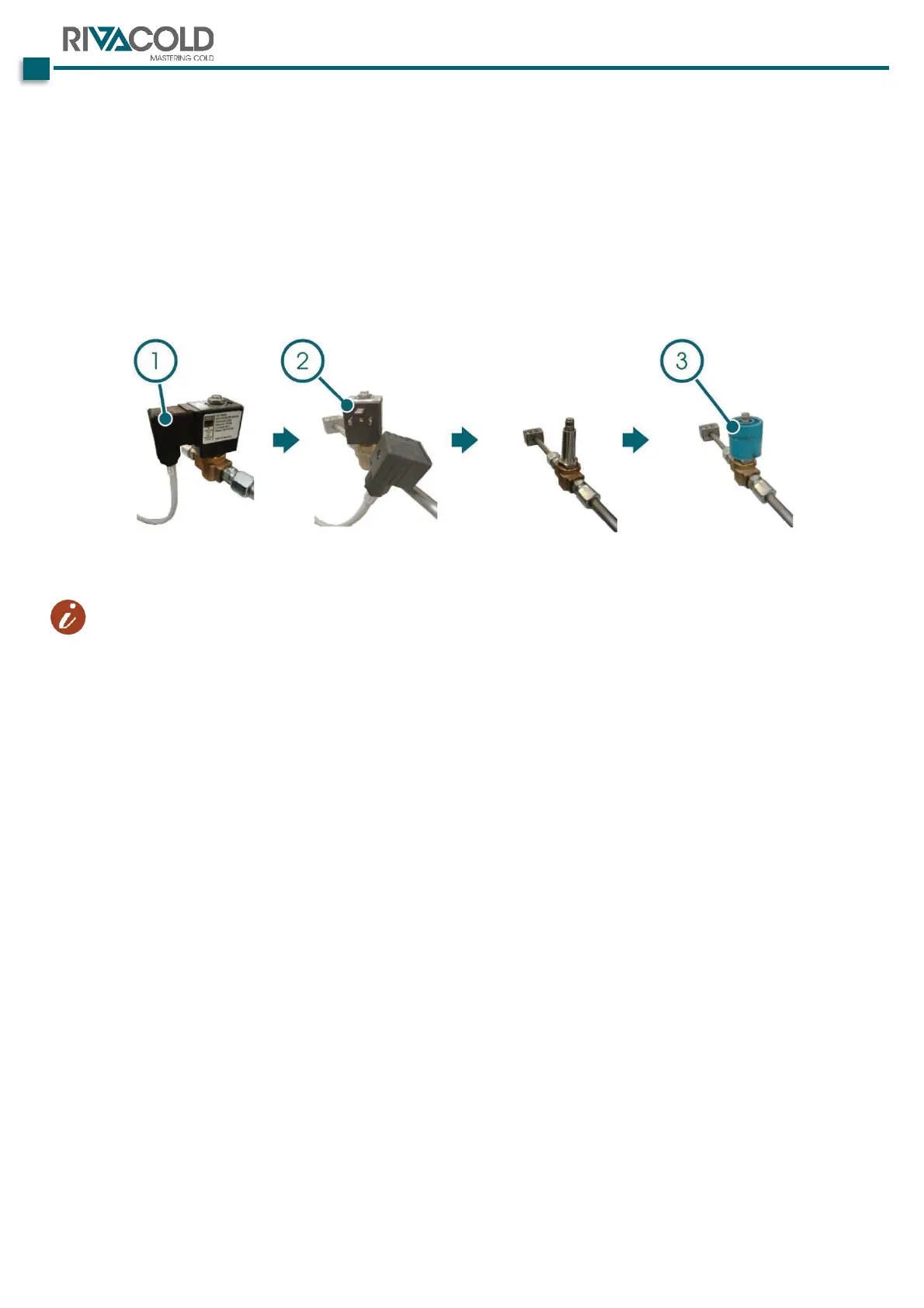

Furthermore, as shown in the following figures, when the machine is switched off, opening magnets must be
inserted in the solenoid valves YVEq.LT and YVEq.P if present.
x
remove the connector (1);
x
remove the coil (2);
x
insert the magnet (3).
NOTE: Refer to the procedure DRAIN PROCEDURE MANUAL MODE (par. 4.4.1)
