DANGER: it is necessary to make sure that before starting any type of intervention on the PARTLY COMPLETED
MACHINERY or near its components or accessory equipment, the power supply be cut-off; if this were
not possible, it is necessary to take measures that, at any rate, allow operators to safely work near
the PARTLY COMPLETED MACHINERY .
DANGER: unauthorized tampering with or replacement of one or more parts of the PARTLY COMPLETED MACHINERY and
the use of accessories, tools, and consumption materials different than those indicated by the Manufacturer
may cause danger of injury.
ATTENTION: all the materials with an environmental impact which need to be eliminated following interventions or
processing on the PARTLY COMPLETED MACHINERY must be disposed of in accordance with the norms in
force.
If necessary, contact specialized waste collection centers for their disposal.
3.7 Data and technical characteristics of the partly completed machinery
3.7.1 Identification plate

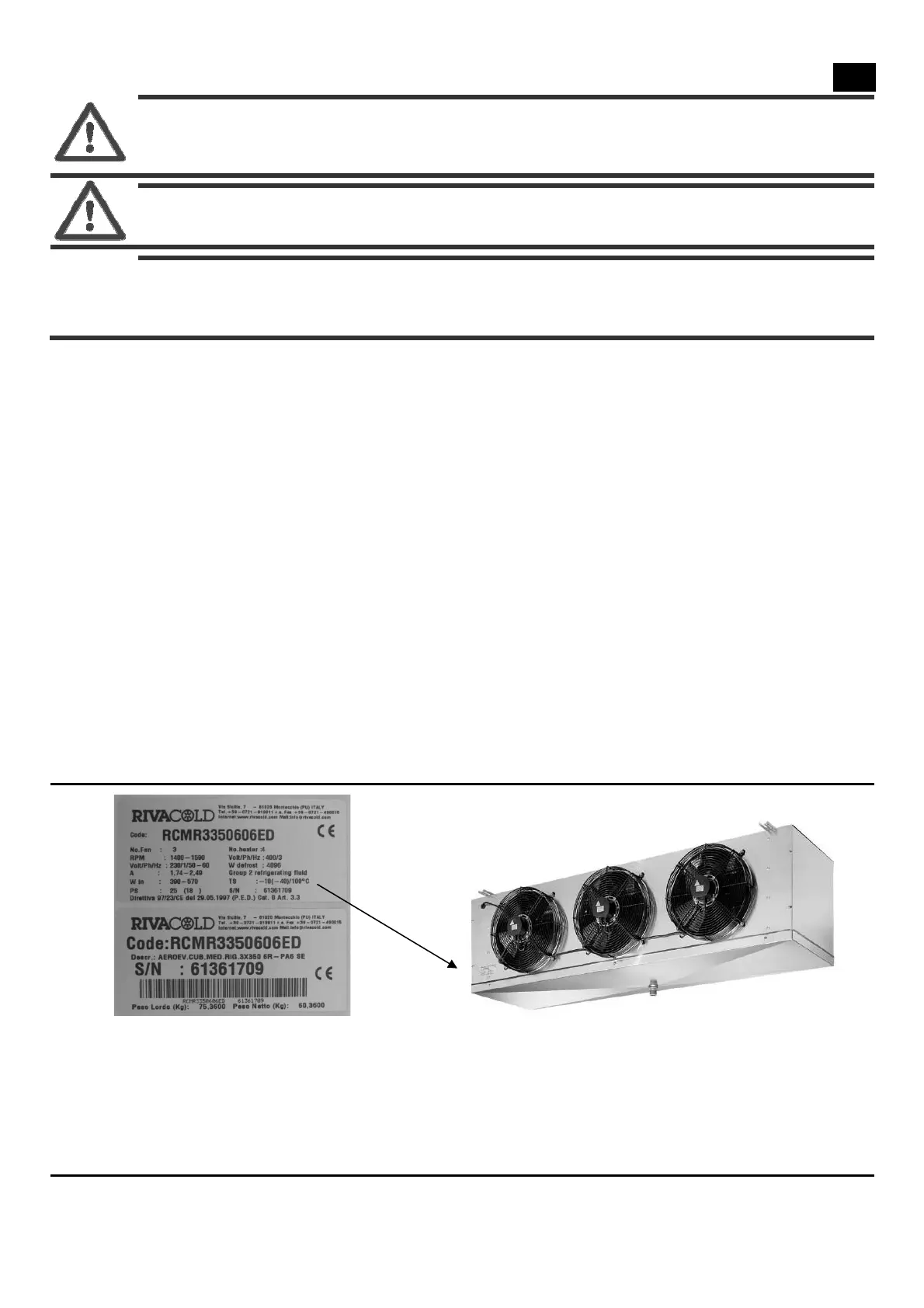

To identify the PARTLY COMPLETED MACHINERY , an identification plate has been affixed onto it (for example, in Figure 1); the identification
data reported on this plate must be notified to the offices of the Manufacturer upon each request for its intervention or when ordering
spare parts. More specifically, the following data are reported on the identification plate:
¾ code,
¾ no. of fan motors,
¾ no of revs (RPM),
¾ power supply voltage (Volt/Ph/Hz),
¾ absorption in ampere (A),
¾ absorption in Watt (W in),
¾ maximum operating pressure (PS),
¾ refrigerant fluid unit: Unit 2
¾ minimum/maximum operating temperature (TS),
¾ serial number.
¾ system category according to Directive 97/23 / EC (PED).
Defrosting heaters are included on the ED models; in this case, the plate also reports the following information:
¾ no. of heaters,
¾ absorption in Watt (W defrost),
¾ power supply voltage (Volt/Ph/Hz).
Breakdown of the serial number
¾ digits 1 and 2 = code that identifies the year of manufacture,
¾ digits 3 and 4 = week of the year in which the
PARTLY COMPLETED MACHINERY was manufactured,
¾ digits 5, 6, 7, and 8 = progressive number.
Figure 1 – Identification plate.
3.8 Technical data
All the air-cooled evaporators are equipped with axial fan motors that are not suited for additional prevalence.
The heat exchanger is in copper-aluminum, and therefore not suitable to be used in aggressive environments.
The guarding is made of aluminum. The screws, washers, and nuts are in stainless steel. The air-cooled evaporators are equipped
with axial fan motors powered with 230/1/50-60Hz. The main characteristics of the
PARTLY COMPLETED MACHINERY can be found in
Chapter 8 of these instructions.
4
4
.
.
T
T
r
r
a
a
n
n
s
s
p
p
o
o
r
r
t
t
a
a
n
n
d
d
i
i
n
n
s
s
t
t
a
a
l
l
l
l
a
a
t
t
i
i
o
o
n
n
4.1 General details
The installation of the PARTLY COMPLETED MACHINERY is directly performed by qualified personnel.
