Rivacold RCMR 350 - Technical and Constructional Characteristics of the RCMR Ø350

RCMR Pag. 93 Rev 02 02 13

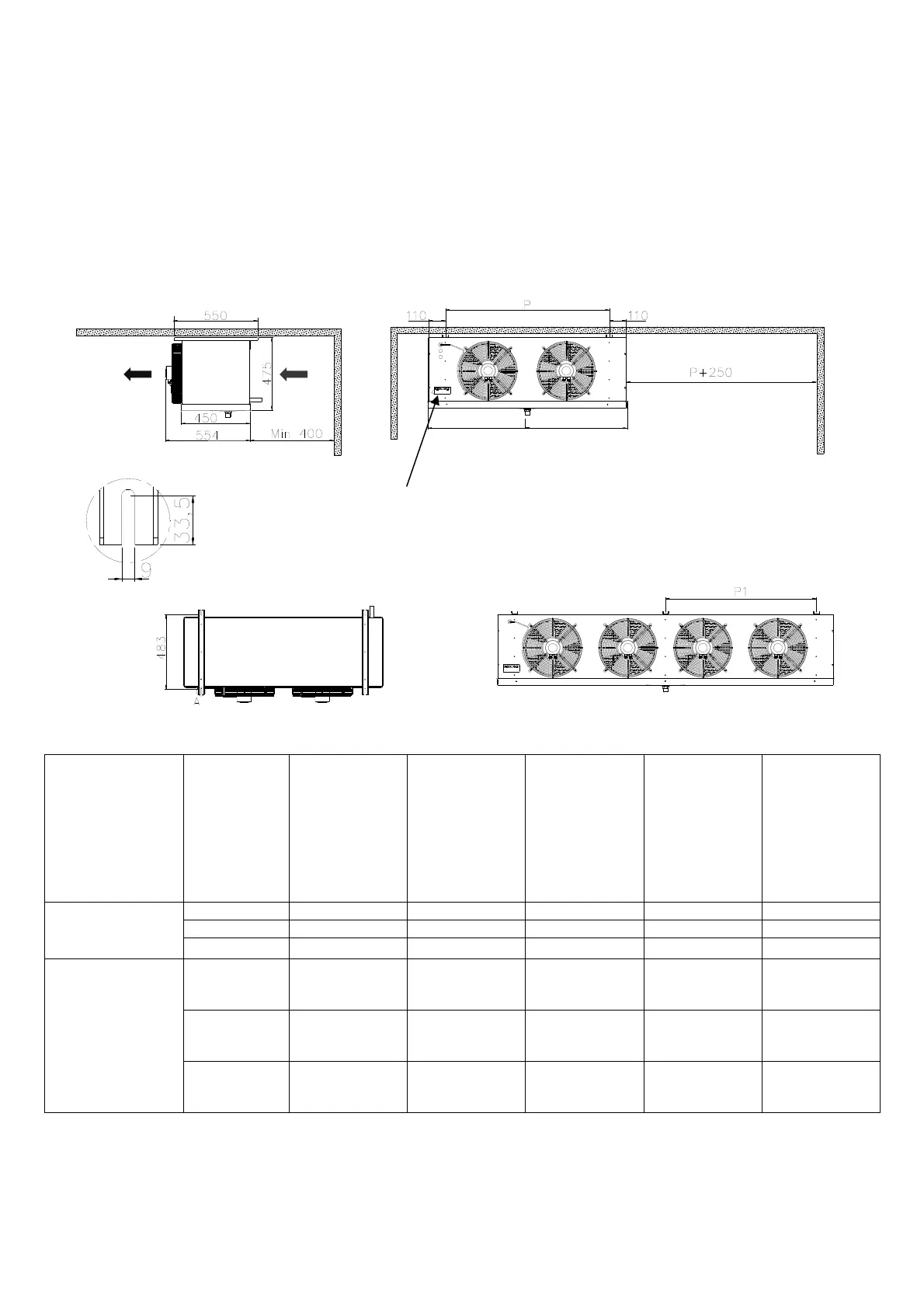

Caratteristiche tecniche e costruttive RCMR Ø350
Technical and constructional characteristics of the RCMR
Ø350
Caractéristiques techniques et constructives RCMR Ø350
Le misure sono espresse in mm
Measurement are in mm
Le misures sont en mm
MODELLO
MODEL
MODÈLE
RCMR
1350604-1350604ED 1350606-1350606ED 1350608-1350608ED 2350404-2350404ED 2350406-2350406ED 2350408-2350408ED 2350804-2350804ED 2350806-2350806ED 2350808-2350808ED 3350604-3350604ED 3350606-3350606ED 3350608-3350608ED 4350604-4350604ED 4350606-4350606ED 4350608-4350608ED
DIMENSIONI
DIMENSIONS
DIMENSIONS
P 710 1070 1070 1520 1970
P 1 --- --- --- --- 985
L 944 1304 1304 1754 2204
ATTACCHI
CONNECTIONS
ATTAQUES
Ø ingresso
Ø inlet
Ø entrée
12x1mm-1/2“SAE 12x1mm-1/2“SAE 16x1mm-5/8“SAE
22x1mm 28x1.5mm
Ø uscita
Ø outlet
Ø sortie
22x1mm 28x1.5mm 28x1.5mm 35x1.5mm 42x1.5mm
Ø scarico
Ø drain
Ø déscarge
1“Gas (33mm) 1“Gas (33mm) 1“Gas (33mm) 1“Gas (33mm) 1“Gas (33mm)
Etichetta di riconoscimento
Identifying label
Le reconnaissance
Dettaglio A
Detail A
Details A
