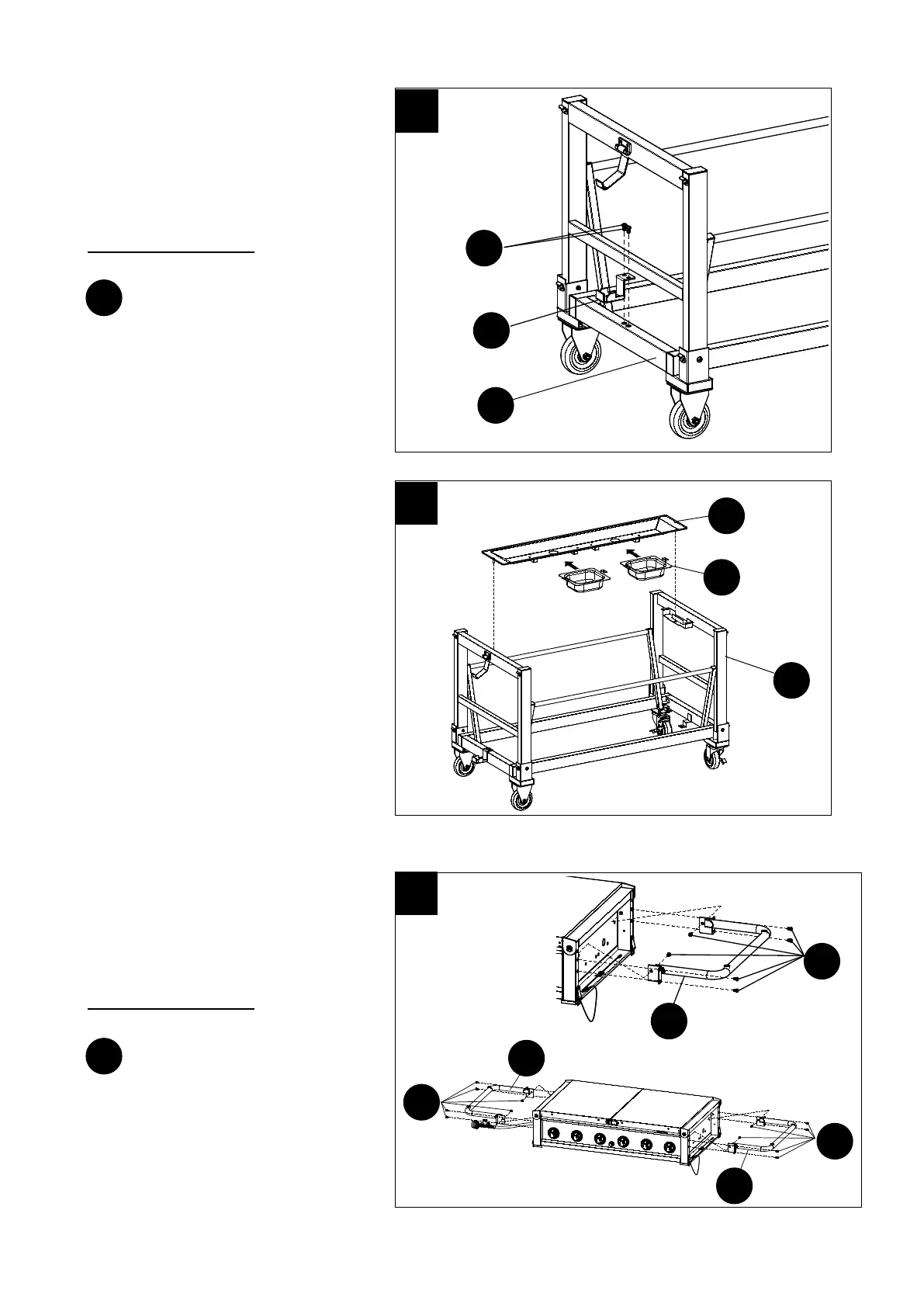

Step 3
Assemble the gas tank holder (J) to
the left side of the grill cart (B) with
bolt (AA).
HARDWARE USED
Bolt 1/4” x 12mm 2 pcs
Step 4
1. Locate the Grease Receptacle
( I ) to the supporting brackets on
the upper left and upper right bars of
cart (B).
2. Install the Grease Cups ( K ) to
the slots underneath the Grease
Receptacle ( I ). The Grease Cups
are required to be
center for safety.
Step 5
Assemble the handles (C) to the grill
body (A) with bolt (AA).
HARDWARE USED
Bolt 1/4” x 12mm 12 pcs
