Rivers Edge LOCKDOWN 2-MAN - Page 11

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007 M-F 8-5
11
Operator's Manual
LOCKDOWN 2-MAN Ladder Stand
STEP 8
STEP 7
20
25
25
52
29
32
29
49
51
52
20
51

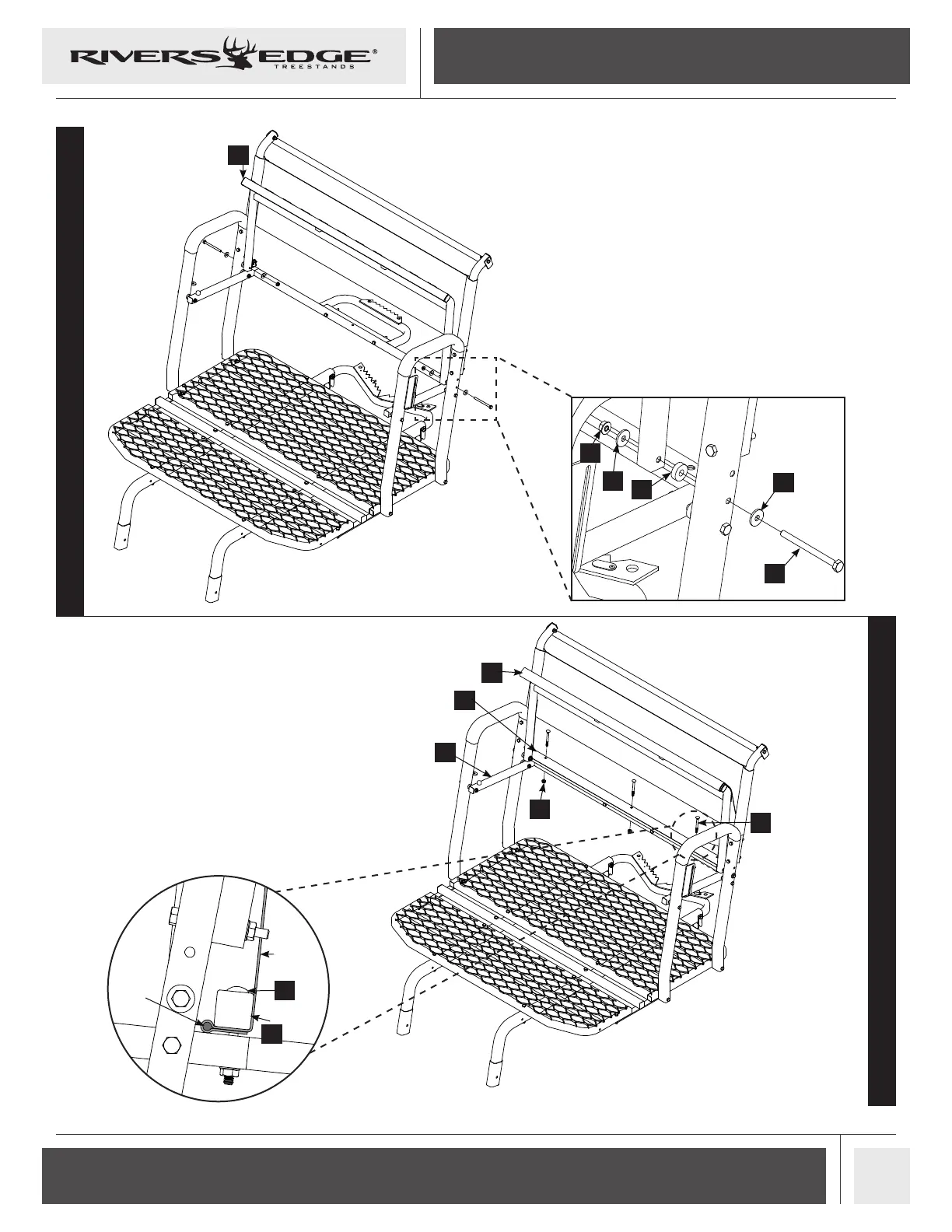

7. Attach the seat assembly (25) to the rest of the
treestand using two 1/4-20 x 3-3/4 IN bolts (49),
four yellow washers (29), two 12 MM thick yellow
spacers (32) and nuts (52).
8. Attach the rear fabric of the seat assembly (25)
to the seat support (19) using the rear seat
support (20), three 1/4-20 x 2-1/2 IN carriage
bolts (51) and nuts (52). Pay close attention to
DETAIL A for proper assembly. The seat fabric
will be sandwiched between the seat support
(19) and rear seat support (20). Once the bolts are
tightened, the plastic rod within the fabric sleeve
will secure the fabric in place.
NOTE: Pay close attention not to pinch the plastic
rod between the seat support (19) and rear seat
support (20) while tightening the bolts.
DETAIL A
19
Plastic
Rod
Seat
Fabric
