Operator's Manual
LOCKDOWN 2-MAN Ladder Stand
THE ULTIMATE SHOOTING RAIL USE INSTRUCTIONS

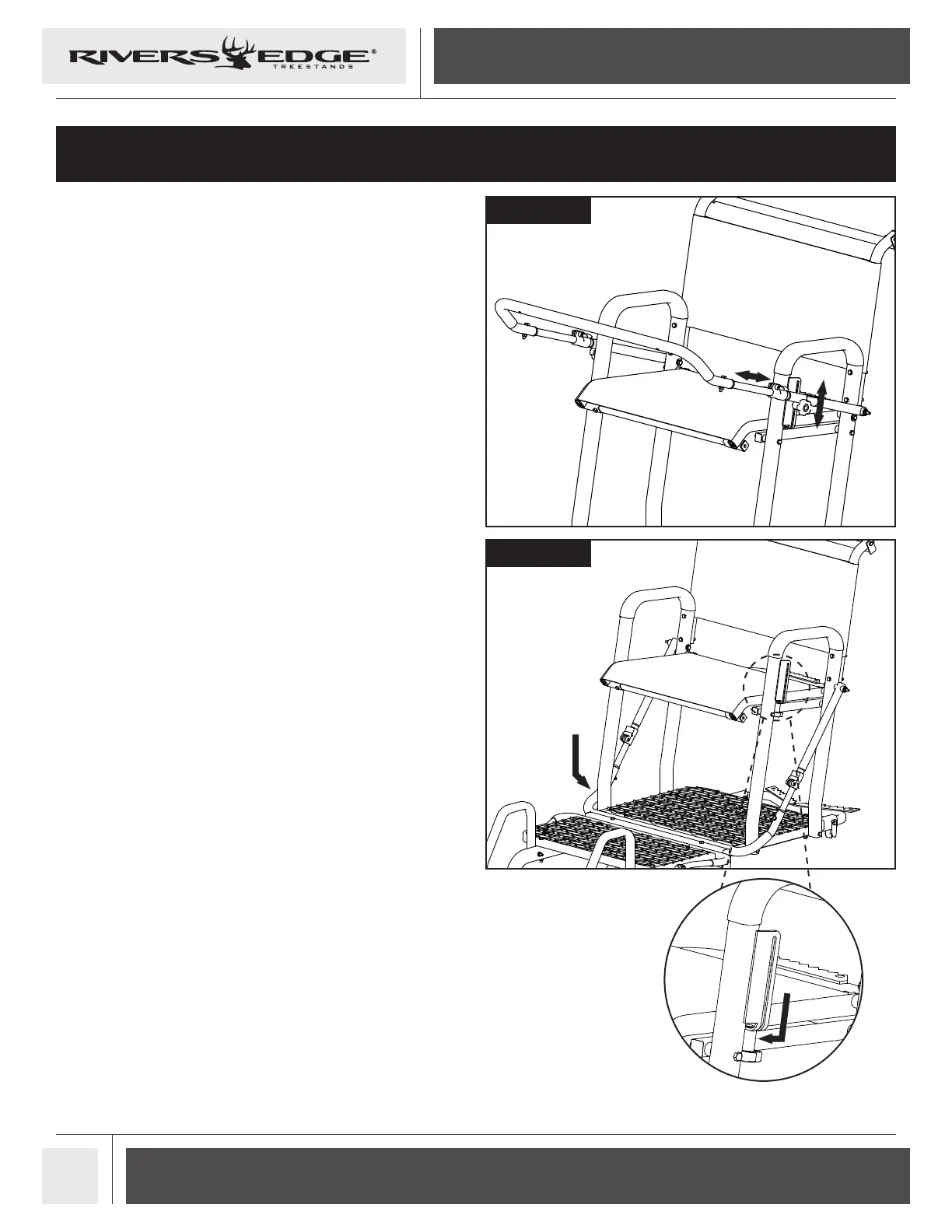

FIGURE 15
DETAIL A
FIGURE 14
The shooting rail on this stand is unique. It has both up-and-down and
in-and-out adjustment. It can also be ipped down and tucked away
into the platform to get it out of the way for bow hunting.
SHOOTING RAIL ADJUSTMENT
1. To adjust the shooting rail up or down, simply loosen the two
knobs, slide them up or down in the slots to the desired height,
and tighten them back up. SEE FIGURE 14.
2. To adjust the shooting rail in or out, simply release the two clamp
levers and slide the shooting rail to the desired position. Then,
lock in place by ipping the levers back down. SEE FIGURE 14.
SHOOTING RAIL TUCKED-AWAY
3. To ip the shooting rail down and tuck it away into the platform,
rst ip it up over your head and let it rest against the tree.
4. Then, loosen the two knobs and slide/rotate them down in the
slots and out of the way. SEE FIGURE 15 AND DETAIL A.
5. Then, ip the shooting rail down in front of you and release the
two clamp levers. Flip it all the way down and slide it into the
slot in the platform. Then lock in place by ipping the levers back
down. SEE FIGURE 15.
Note: Model LD200 depicted
varies from manual model
but the shooting rail design
is the same.
