STEP 3
STEP 4
39
19
52
10
47
32
52
18
52
3
19
46
17
48

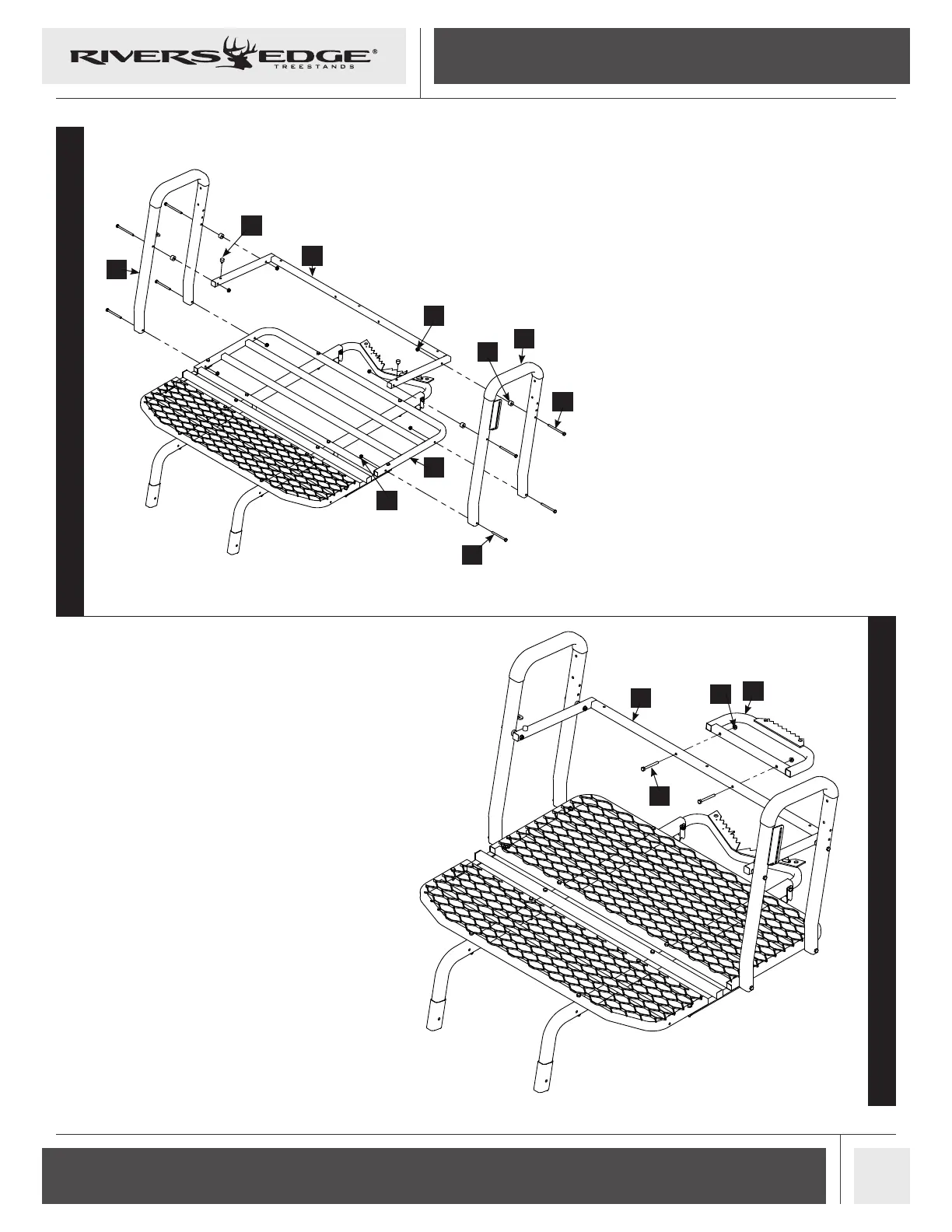

3. Attach left and right armrests (17 and 18) to rear
platform section (10) using four 1/4-20 x 3 IN bolts
(47) and nuts (52).
Attach seat support (19) to left and right armrests
(17 and 18) using four 1/4-20 x 3-1/2 IN bolts (48),
12mm thick yellow spacers (32) and nuts (52). The
spacers must be placed between the seat support
and armrests. Be sure to position the seat support
with the holes for the rubber seat bumpers (39)
facing up.
Insert the rubber seat bumpers (39) into the holes
in the seat support (19).
4. Attach the top tree blade (3) to the seat support
(19) using two 1/4-20 x 2-1/2 IN bolts (46) and nuts
(52).
