Preconditions
1. Preconditions
1.1 Subsoil / Foundation
1.2 Power supply
1.3 Fresh water
1.4 Waste water
1.5 Delivery
1.6 Noise insulation
The foundation should be level, firm and have the same dimensions as
the whirlpool (see specifications for measurements). The entire base of
the whirlpool must lie absolutely flat on the ground so that its weight
is properly supported. There must be sufficient headroom above the
whirlpool for getting in and out with ease.
Total connected load: 16 A / 230 V / 50 Hz (for PentaP, Sienna XL: 2 x 16 A
230 V / 50 Hz) 30 and a 30 mA ground fault interrupter (GFI). The whirlpool
is fitted with a plug for provisional use. This should be removed once the
whirlpool is fully operational. The whirlpool must be connected to the
main power supply using a cable with a cross-section of 3 x 2.5 mm
2
. The
installation should be carried out by a qualified and approved electrician
and in compliance with local regulations (see diagram 1.2).
The whirlpool should be filled using a water hose supplied by the customer.
The whirlpool itself has no connection to the water supply. Only water of
drinking water quality from the mains should be used.
The whirlpool should be emptied with the help of a hosepipe.
Underneath the tub is a check valve to which the hose can be attached.
The whirlpool is delivered on a pallet. The packaging is fitted with handles/
straps for easy transportation. These handles/straps make it possible to
carry the pool either horizontally or to carry it vertically. To avoid any risk
of damage during transportation to the customer, the whirlpool should be
taken to its destination completely packaged. Immediately on arrival the
pool should be unpacked and inspected for any signs of damage.
If the pool is to be installed next to bedrooms, for example, or any other
rooms which according to DIN 4109 require special noise insulation,
additional measures will have to be taken.

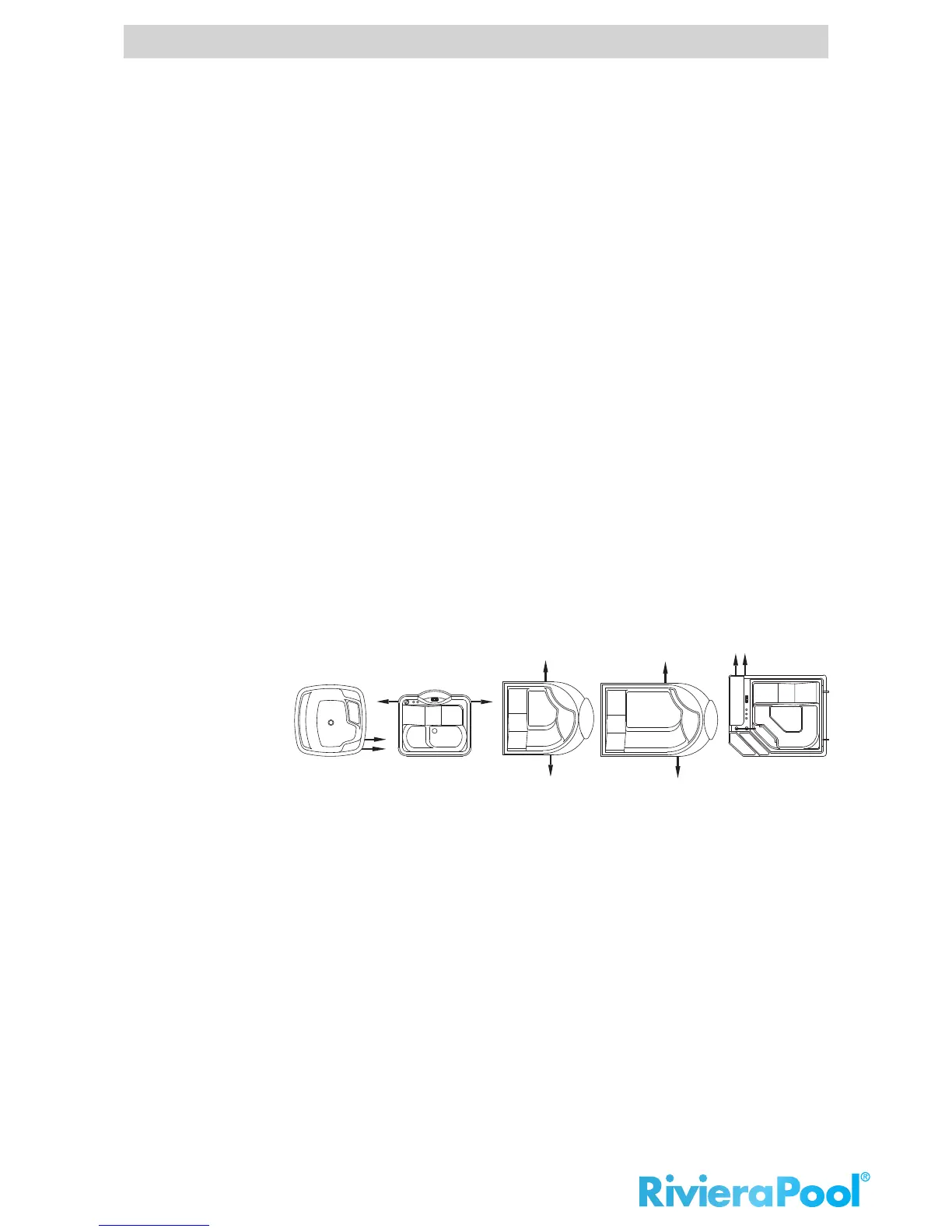

1 = power connection
2 = water connection
