Rivulis F2400 Media Filter
1
0

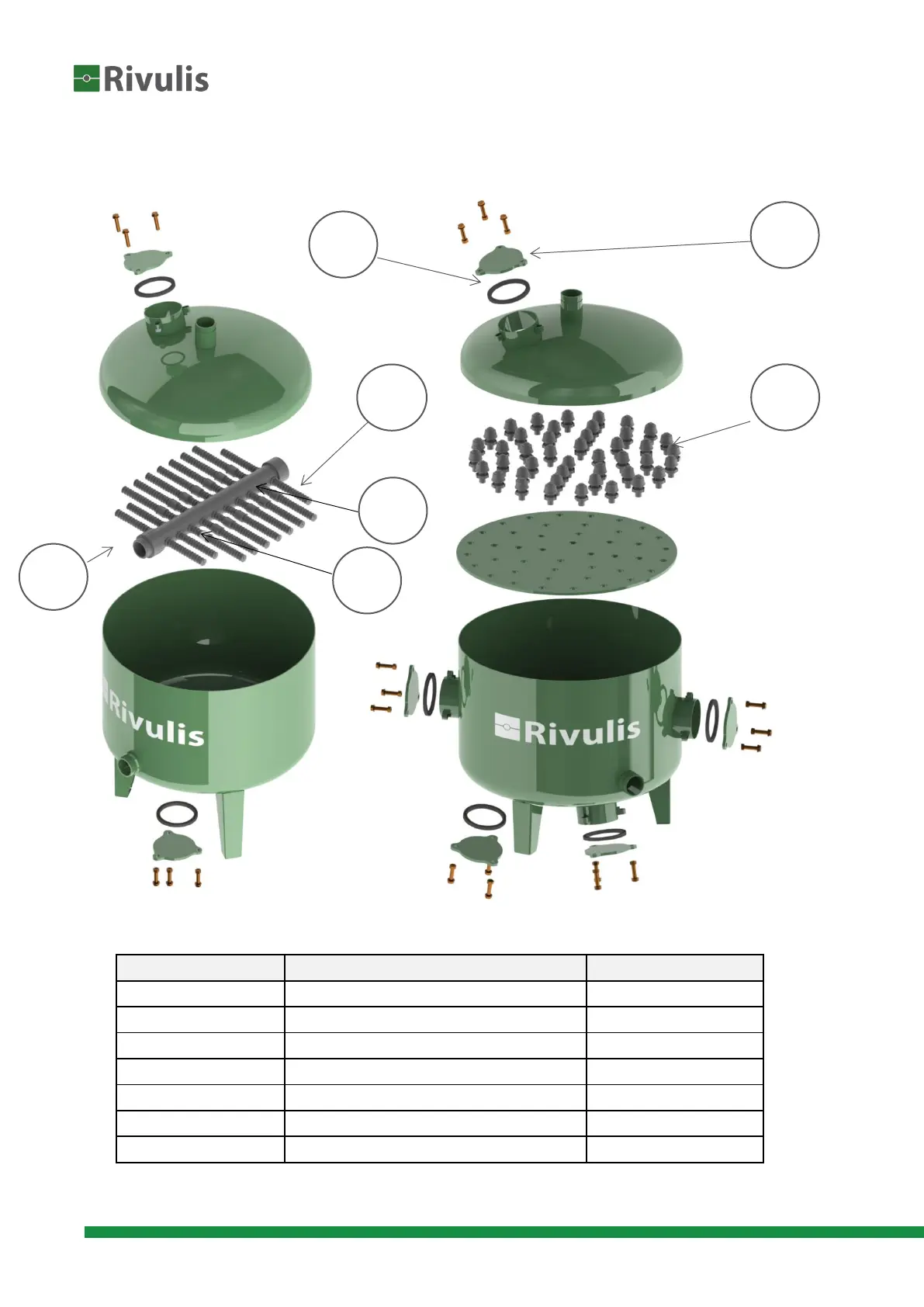

8. DISASSEMBLY OF F2400 ARMS COLLECTORS (LEFT) AND F2400 NOZZLES (RIGHT)
POSITION
EXTENDED DESCRIPTION
CODE
1
Upper cover
2
Cover flange F2400 20"-48"
101064369
3
F2400 tube and arms set
3.1
Collector arm*
3.2
Nut connection collector arm
3.3
L=100 Extension filter arm
4
Nozzle with nut
101064370
*Consult with your RIVULIS representative for different sizes
1
4
2
3.1
3.2
3.3
3
