ISSUE 2016 Rev 1 - Installation Manual

3

RM Cylinders

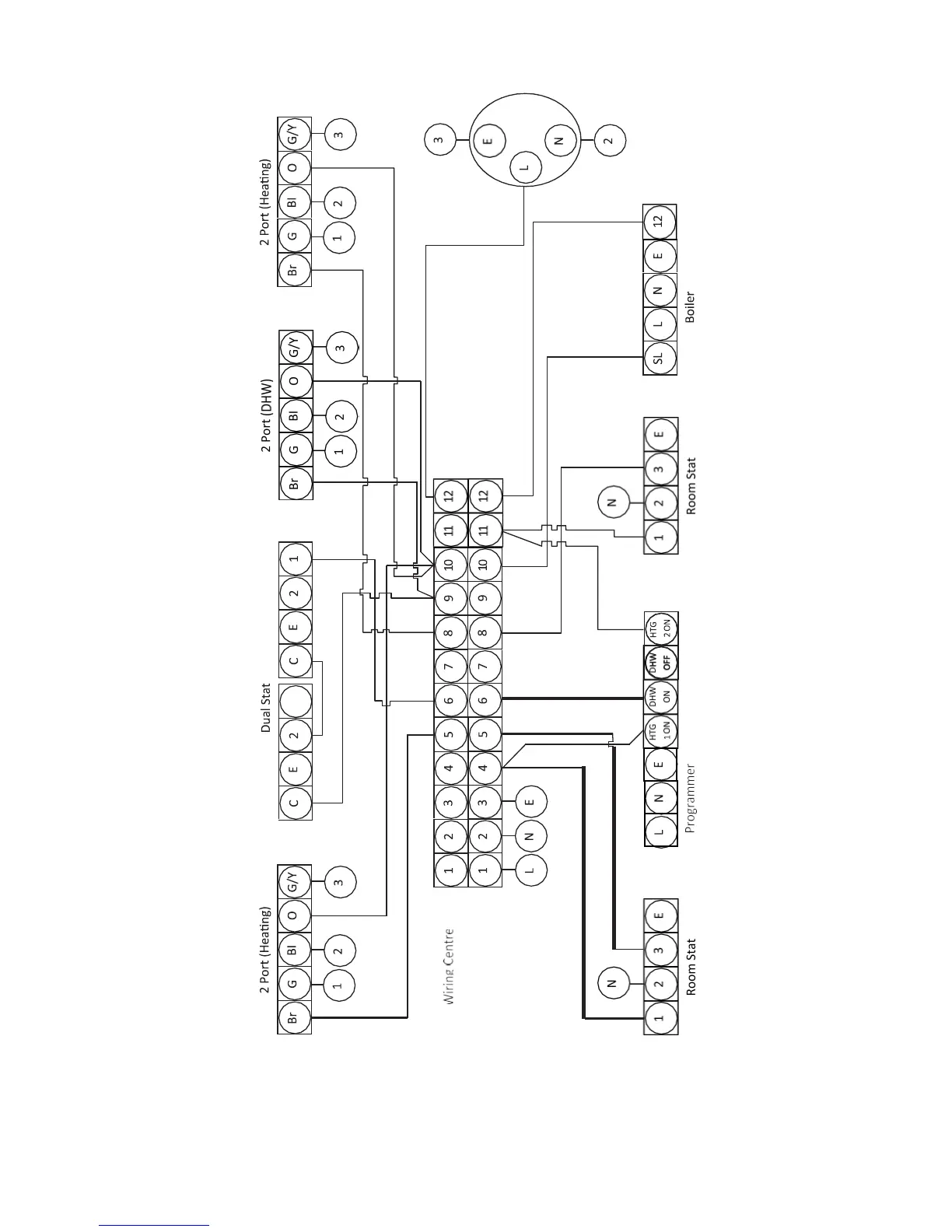

TYPICAL WIRING - S PLAN, 2 ZONE

COLOUR CODES

W = WHITE G = GREY BL = BLUE G/Y = GREEN / YELLOW L = LIVE N = NEUTRAL C = COMMON SL = SWITCHED

LIVE E = EARTH
