CONNECTOR B
1. REAR RIGHT SPEAKER (+)
2. REAR RIGHT SPEAKER (-)
3. FRONT RIGHT SPEAKER (+)
4. FRONT RIGHT SPEAKER (-)
5. FRONT LEFT SPEAKER (+)
6. FRONT LEFT SPEAKER (-)
7. REAR LEFT SPEAKER (+)
8. REAR LEFT SPEAKER (-)
Maintenance
FUSE REPLACEMENT
If the fuse blows, check the power connecton and replace the fuse. If the fuse blows again after
the replacement, there may be an internal malfunction. In this case, consult your nearest re-
pairing center.
Warning
Use the specified amperage fuse for each lead. Use of a higher amperage fuse may cause
serious damage.
OPERATING INSTRUCTIONS
1. POWER ON/OFF
By pressing this key, the unit is switched on and off.
This unit is turned on by pressing any key.
2. SELECT
3. VOLUME UP/DOWN
Rotating these knob, you can adjust VOL/BASS/TREB/BAL/FAD. To select other functions,
press the SEL (2) button shortly until the desired functions is shown on the display. Figure
1 shows how control functions are selected using the SEL button.

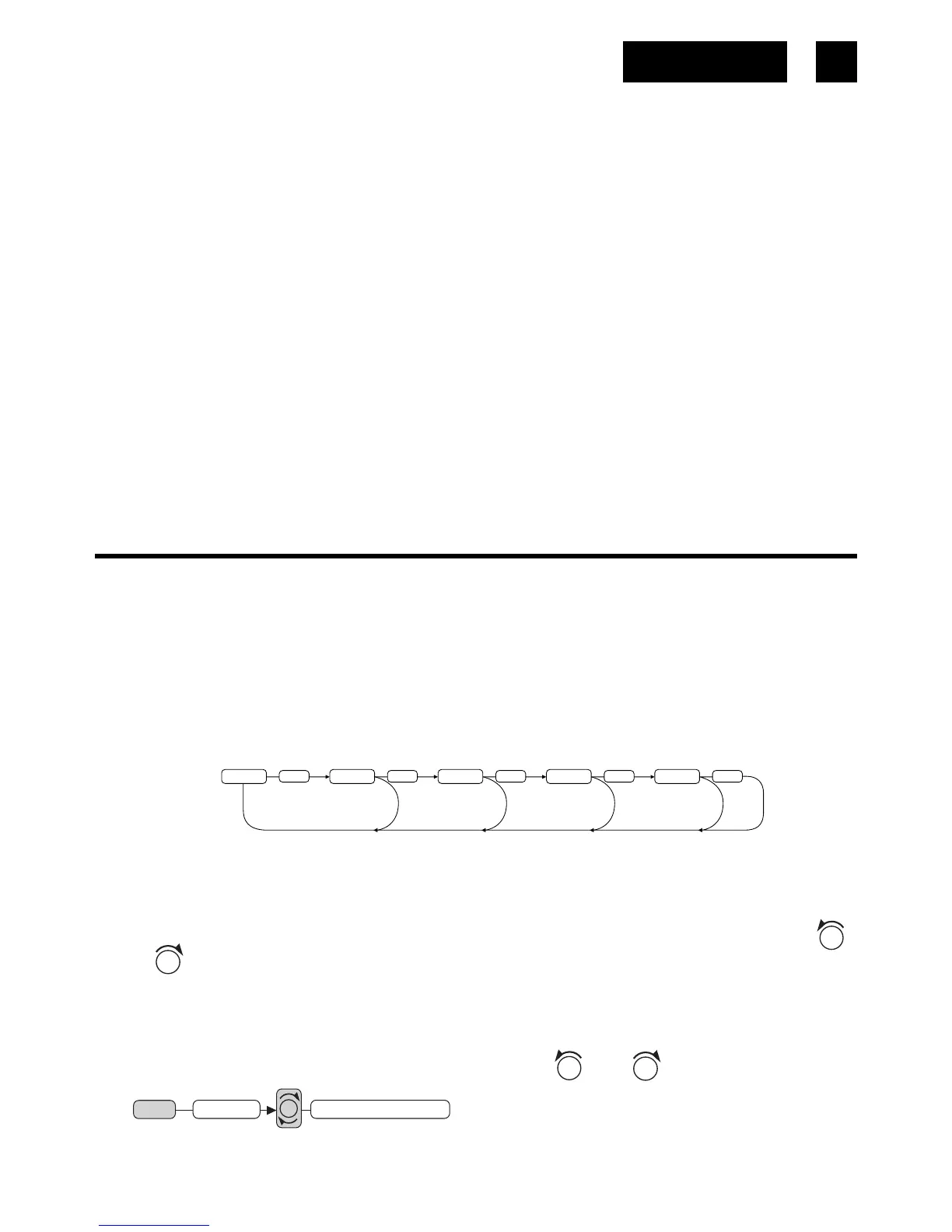

Fig. 1 Selection of sound control functions
1. VOL 2. SEL 3. BAS 4. TRE 5. BAL 6. FAD
VOL. UP Button (+) and VOL. DOWN Button (–). Increase or decrease the volme by
VOL
or
VOL
. These buttons can be used to adjust the BASS, TREBLE, BALANCE and FADER.
TA SEEK/TA ALARM (2)
When press the SEL button for more than 2 seconds, it is activated as selecting mode of
these function.
TA SEEK Mode or TA ALARM mode is selected by
VOL
or
VOL
.
1 3
2
4
2
5
2
6
2
2
TA SEEK
SEL
2 sec.
TA SEEK / TA ALARM
VOL
