MODEL 5318B INSTRUCTION MANUAL
Level Tek II, Capacitance Level Switch 909GF295
Page 4
3.3 INSTRUMENT MOUNTING
3.3.1 PROBE MOUNTED
The Model 5318B Level Tek II is designed to be
mounted directly on the installed probe
assembly as shown in Figure 3-1 and may be
mounted or oriented in any position.
Prior to installing the instrument onto the probe,
the probe electrical connection pin (included with
the instrument) must be installed in the end of
the probe as shown in Figure 3.1 to provide the
electrical connection between the probe and the
instrument. Do not over tighten the probe pin.

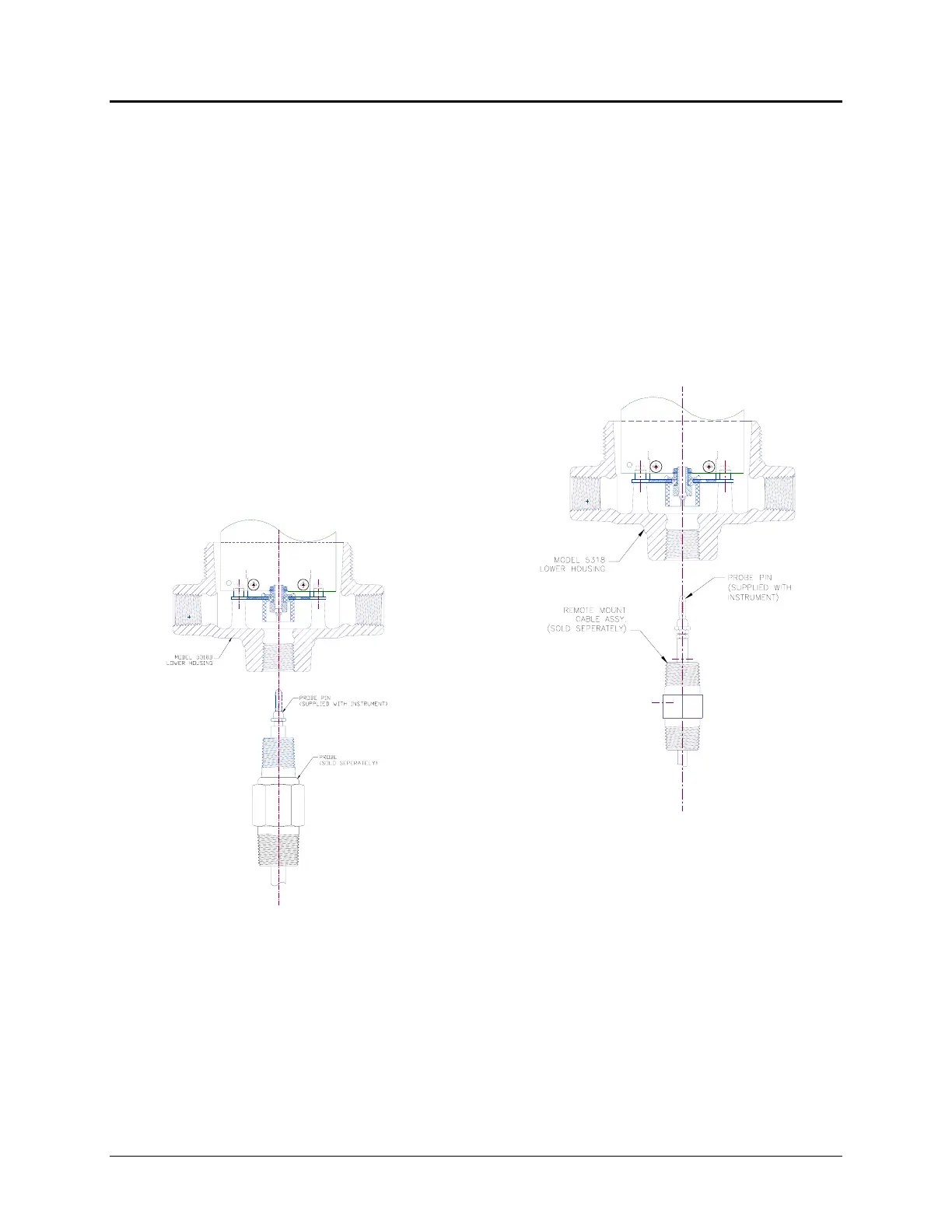

Figure 3-3 Probe Mounting
3.3.2 REMOTE MOUNTED
The Model 5318B Level Tek II may also be
remotely mounted from the probe using a
remote mount cable assembly (sold separately,
see SECTION VII -- ACCESSORIES). This
cable assembly allows the instrument to be
mounted up to 15 feet from the probe. For
longer distances consult the factory. Figure 3-2
shows the details of this mounting option.
Figure 3-4 Remote Mounting
