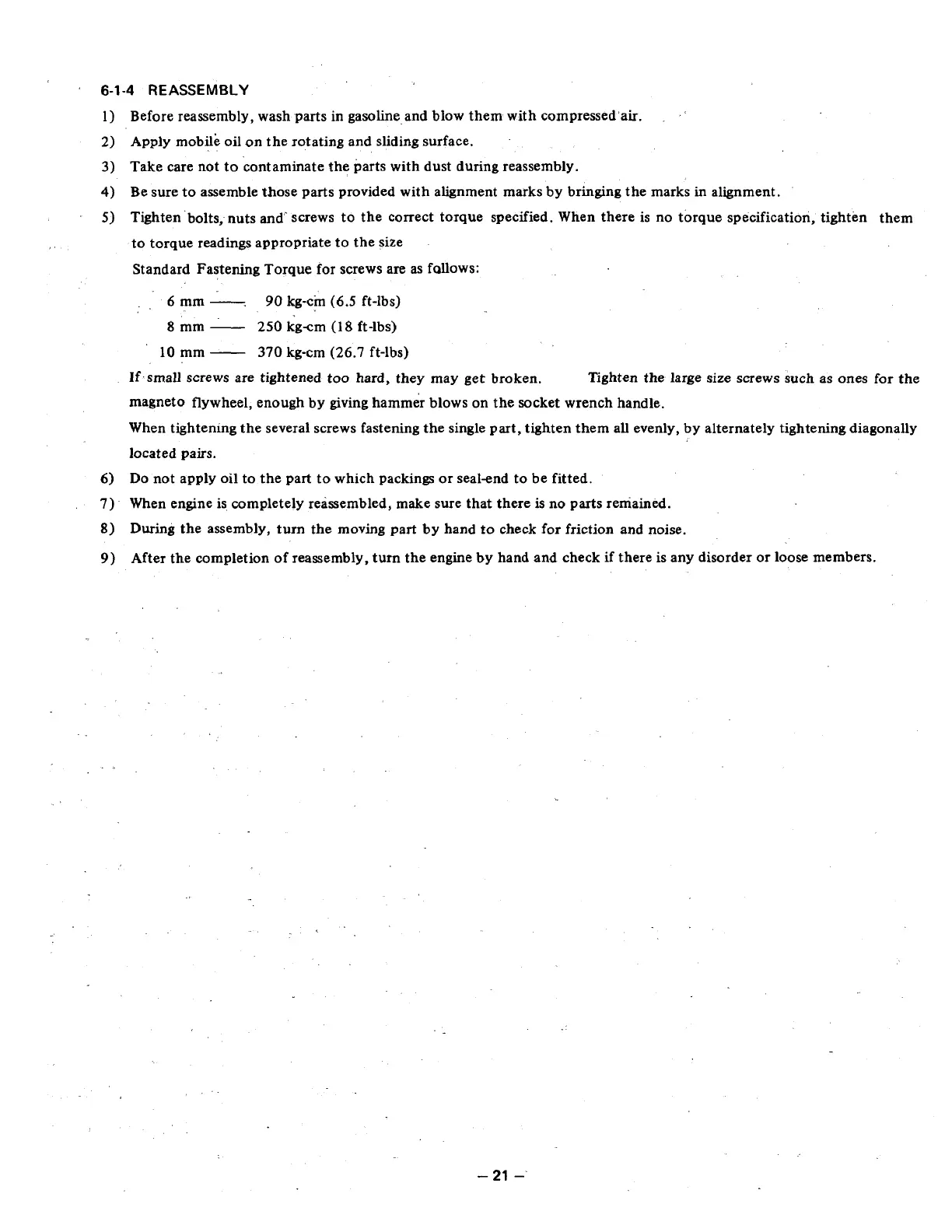

6-1-4
REASSEMBLY
1)
Before reassembly, wash parts in gasoline.and blow them with compressed'air.
2)
Apply mobile oil on the rotating and sliding surface.
3)
Take care not to contaminate the parts with dust during reassembly.
4)
Be sure to assemble those parts provided with alignment marks by bringing the marks
in
alignment.
5)
Tighten'bolts, nuts and' screws to the correct torque specified. When there
is
no torque specification, tighten them
to torque readings appropriate to the size
Standard Fastening Torque for screws are
as
fallows:
..
6mm-
.
90
kg-cm
(6.5
ft-lbs)
8mm-
250
kgcm
(18
ft-lbs)
10 mm
-
370
kg-cm
(26.7
ft-lbs)
If.small screws are tightened too hard, they may get broken. Tighten the large size screws such as ones for the
magneto flywheel, enough by giving hammer blows
on
the socket wrench handle.
When tightening the several screws fastening the single part, tighten them all evenly, by alternately tightening diagonally
located pairs.
6) Do
not apply
oil
to the part to which packings or sealend to be fitted.
7)
When engine is completely reassembled, make sure that there
is
no
parts remained.
8)
During
the assembly, turn the moving part by hand to check
for
friction and noise.
9)
After the completion of reassembly, turn the engine by hand and check
if
there
is
any disorder or
loose
members.
-
