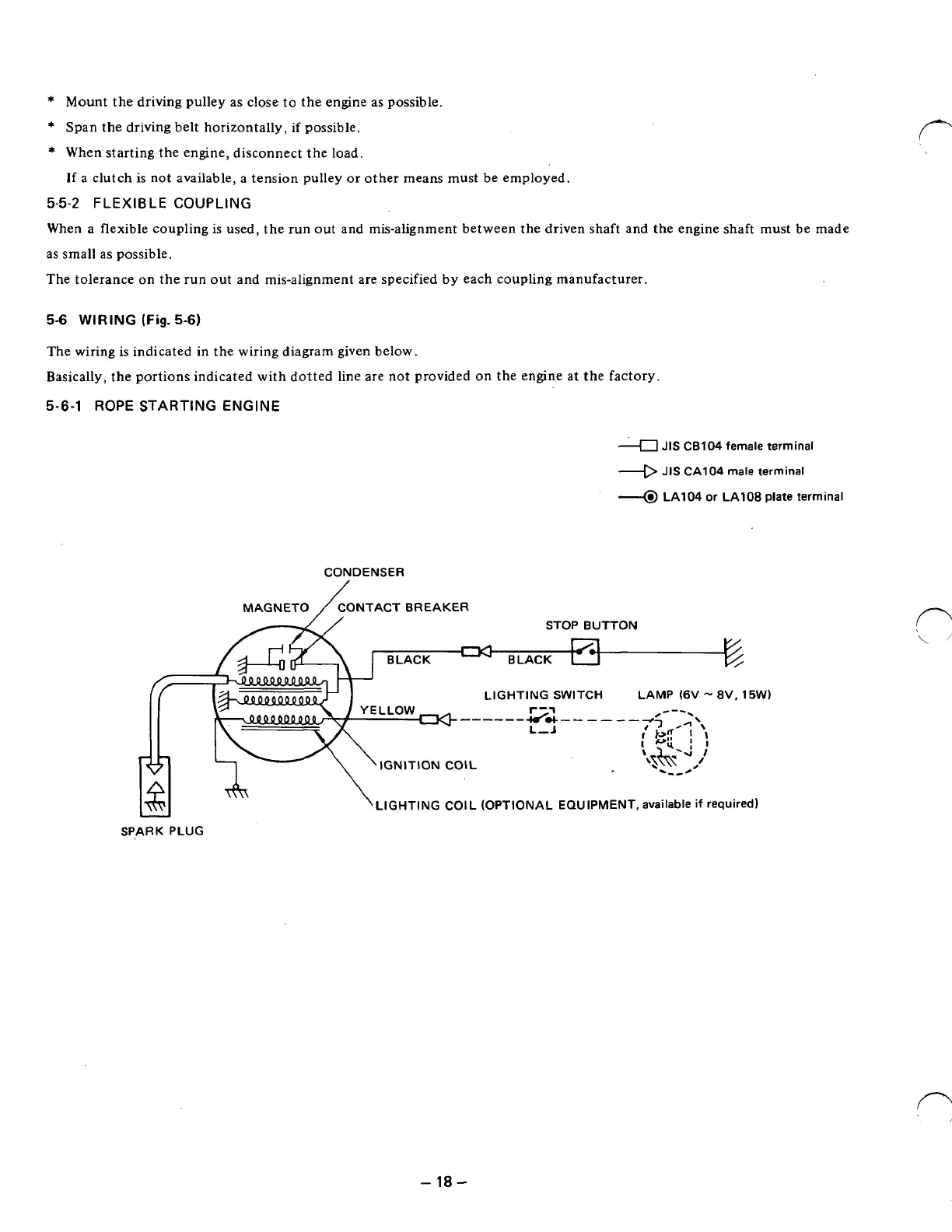

Mount the driving pulley as close to the engine as possible.
*
Span the driving belt horizontally, if possible.
*
When starting the engine, disconnect the load.
If
a
clutch is not available, a tension pulley or other means must be employed.
5-5-2
FLEXIBLE
COUPLING
When a flexible coupling is used, the run out and mis-alignment between the driven shaft and the engine shaft must be made
as small as possible.
The tolerance on the run
out
and mis-alignment are specified by each coupling manufacturer.
"c3
JIS
CB104 female terminal
JIS
CA104 male terminal
4
LA104 or LA108 plate terminal
CONDENSER
ONTACTBREAKER
STOP BUTTON
LIGHTING SWITCH LAMP
(6V
-
8V.
15W)
"""
IGNITION
COIL
SPARK PLUG
p"
r'
\'
-
18-
