BATTERY BASE
BATTERY FRAME
BATTERY
BOLT
BATTERY RETAINER
NUT
M8 NUT
SPRING
WASHER
M8 BOLT and
WASHER
BATTERY
CABLE
(
- )
BATTERY
CABLE
(+)
SIDE PLATE
A
A
M8 BOLT and WASHER
M8 BOLT and WASHER
M8 BOLT and WASHER

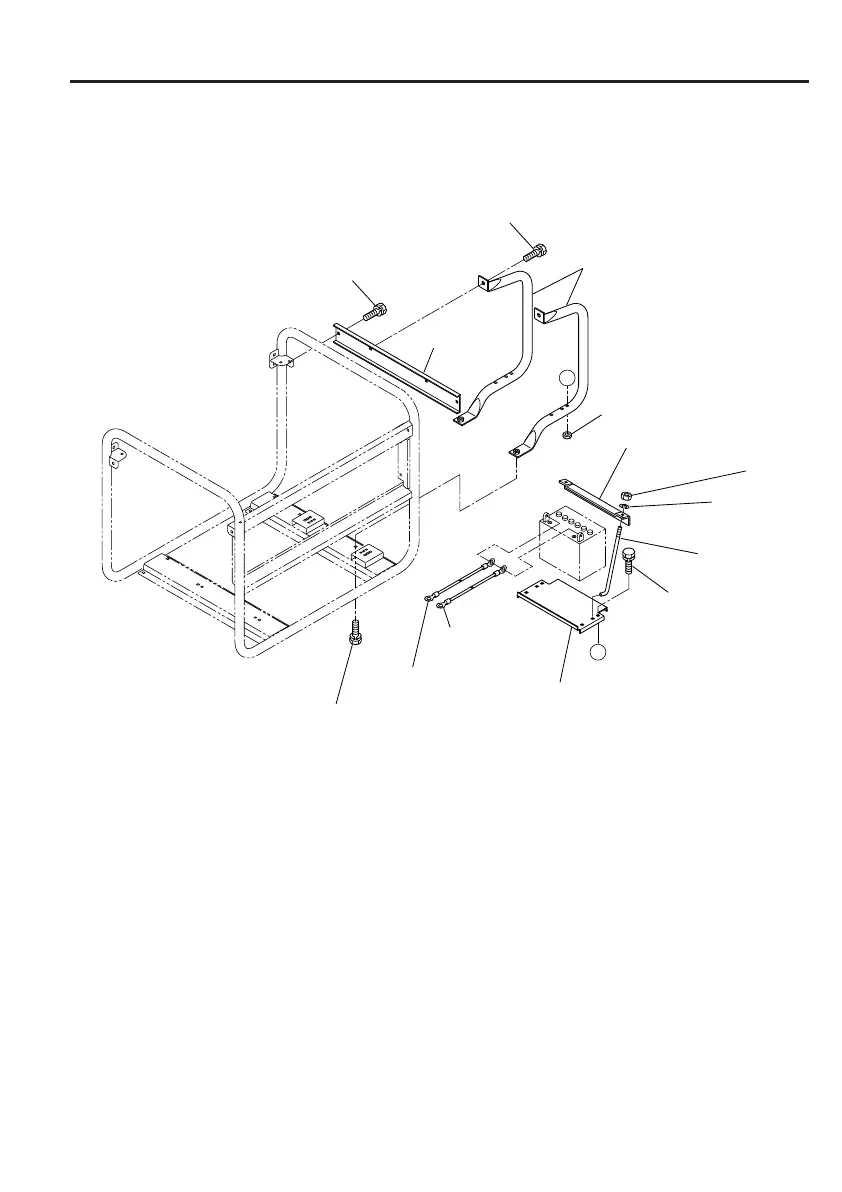

HOW TO INSTALL THE BATTERY FRAME AND BATTERY
(Electric starter type)
