Robin RGX305 - Page 29

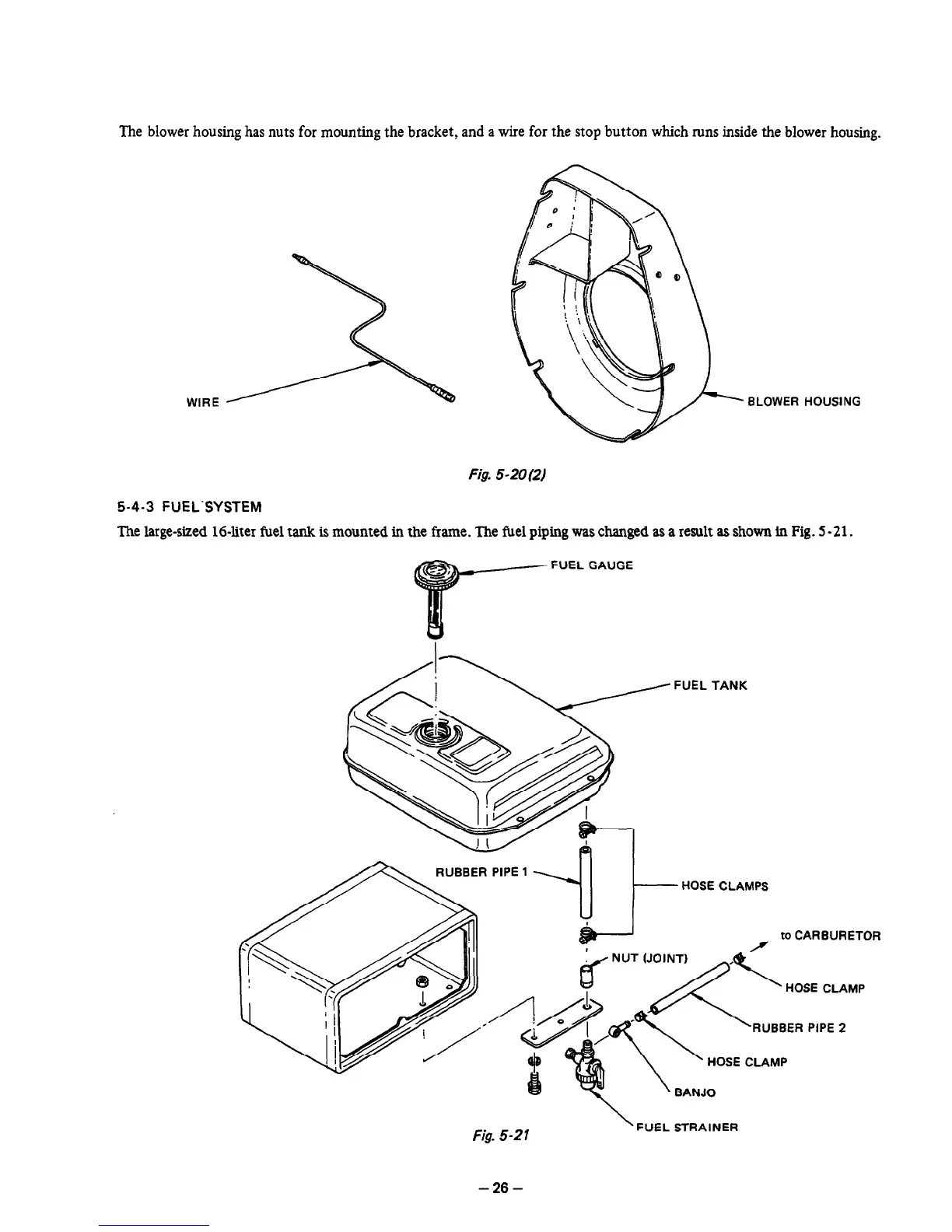

The blower housing has nuts for mounting the bracket, and a wire for the stop button which runs inside the blower housing.
WIRE
BLOWER HOUSING
Fig. 5-20 (21
5-4-3 FUEL’SYSTEM
The large-sized 164ter fuel tank is mounted in the frame. The fuel piping was changed as a result as shown in Fig. 5 -21.
FUEL GAUGE
FUEL TANK
/-+, RUBBER
’ ’ ’
to CARBURETOR
/,
HOSE CLAMP
RUBBER PIPE 2
HOSE CLAMP
Fig. 5-27
\
FUEL STRAINER
- 26 -
