29
4. U
sing the Electric Wheelchair
4.5.2 Adjusting the Gear on Left and Right Armrest Controllers

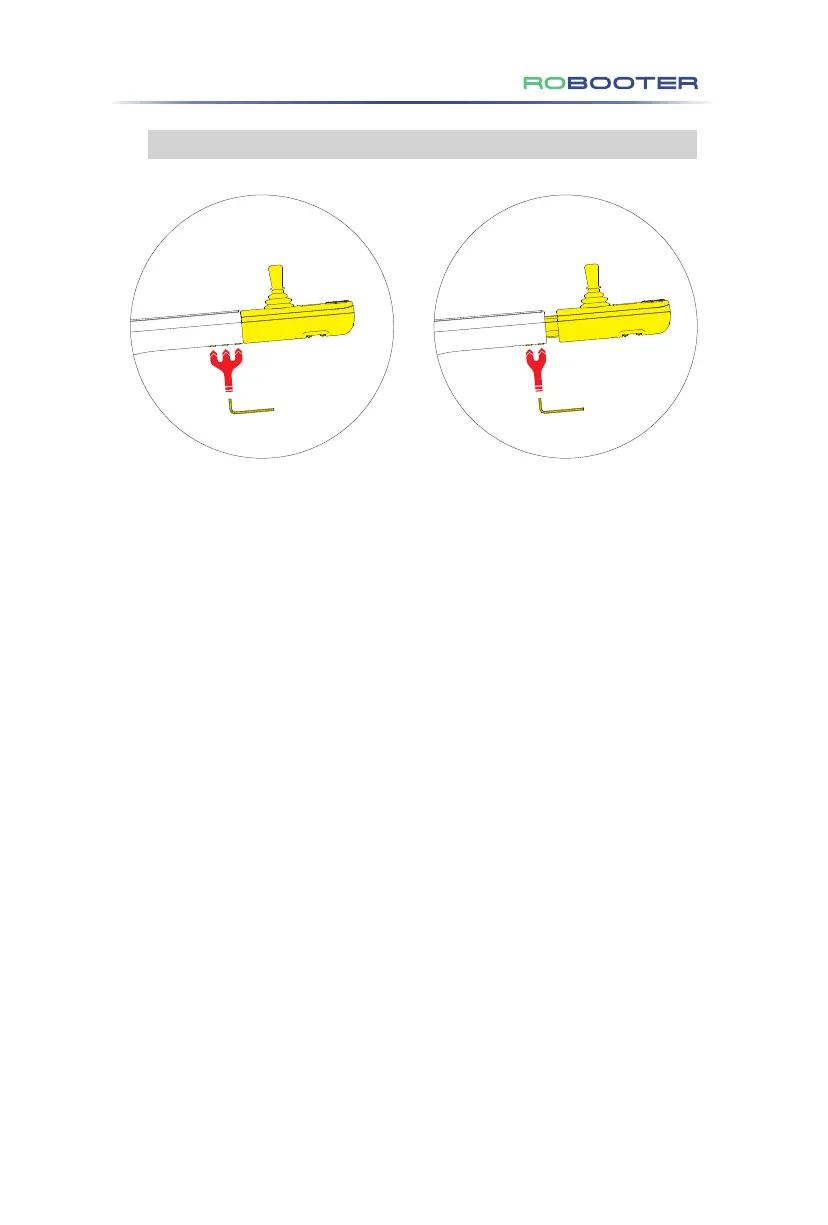

Figure 4.5.2
To adjust the gear on the left and right armrest controllers, follow these steps:
1. Ensure the machine power is turned off before starting any adjustments.
2. Using a hex wrench, remove the three Allen screws located underneath the
armrest controller. Afterward, slide the controller outward to adjust by one
gear.
3. Securely lock the controller in its new position using the hex wrench on the
hex socket screws.
For a visual guide on this process, please refer to Figure 4.5.2.
