ROBOSOFT
N.y.
Press-brake ATS
550
&
ATS
560

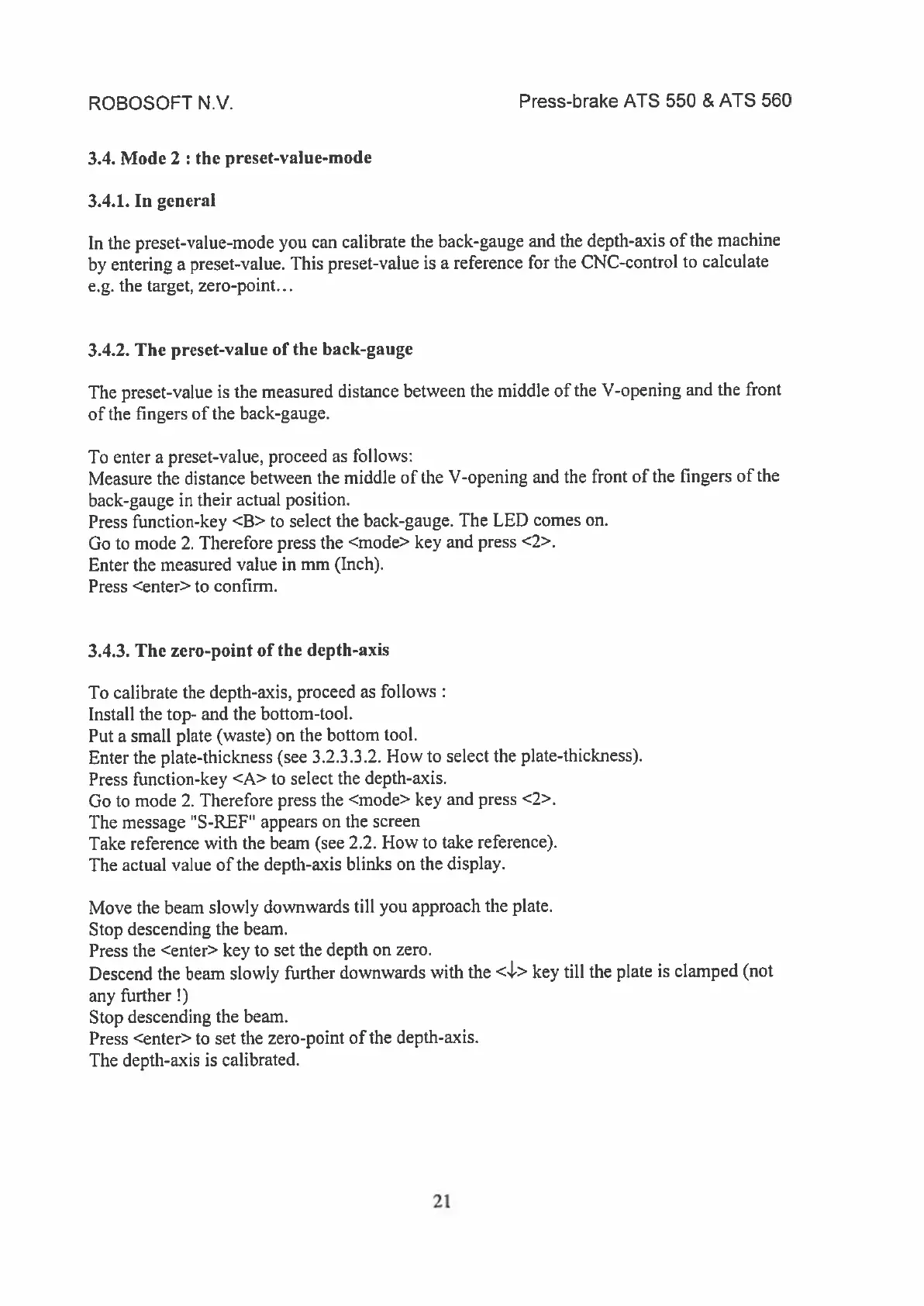

3.4.
Mode
2
the
preset-value-mode
3.4.1.
In
general
In
the
preset-value-mode you
can
calibrate
the
back-gauge
and
the
depth-axis
of
the
machine
by
entering
a
preset-value. This
preset-value
is
a
reference
for
the
CNC-control
to calculate
e.g.
the
target,
zero-point...
3.4.2.
The
preset-value
of
the
back-gauge
The
preset-value
is
the
measured
distance
between
the
middle
of
the
V-opening
and
the
front
of
the
fingers
of the
back-gauge.
To
enter
a
preset-value,
proceed
as
follows:
Measure
the
distance
between
the
middle
of the
V-opening
and
the front
of the
fingers
of
the
back-gauge
in
their
actual
position.
Press
function-key
<B>
to
select
the
back-gauge.
The
LED
comes
on.
Go
to
mode
2.
Therefore
press
the
<mode>
key
and
press
<2>.
Enter
the
measured
value
in
mm
(Inch).
Press
<enter>
to
confirm.
3.4.3.
The
zero-point
of
the
depth-axis
To
calibrate
the
depth-axis,
proceed
as
follows
Install
the
top-
and
the bottom-tool.
Put
a
small
plate
(waste)
on
the
bottom
tool.
Enter
the
plate-thickness (see
3.2.3.3.2.
How
to
select
the
plate-thickness).
Press
function-key
<A>
to
select
the
depth-axis.
Go
to
mode
2.
Therefore
press
the
<mode>
key
and
press
<2>.
The
message
‘S-REF’
appears
on
the
screen
Take
reference
with
the
beam
(see
2.2.
How
to
take
reference).
The
actual
value
of
the
depth-axis
blinks
on
the
display.
Move
the
beam
slowly
downwards
till
you
approach
the
plate.
Stop
descending
the beam.
Press
the
<enter>
key
to
set
the
depth
on
zero.
Descend
the
beam
slowly
further
downwards
with
the
<1->
key
till
the
plate
is
clamped
(not
any
further
!)
Stop
descending
the
beam.
Press
<enter>
to set
the
zero-point
of
the
depth-axis.
The
depth-axis
is
calibrated.
21
